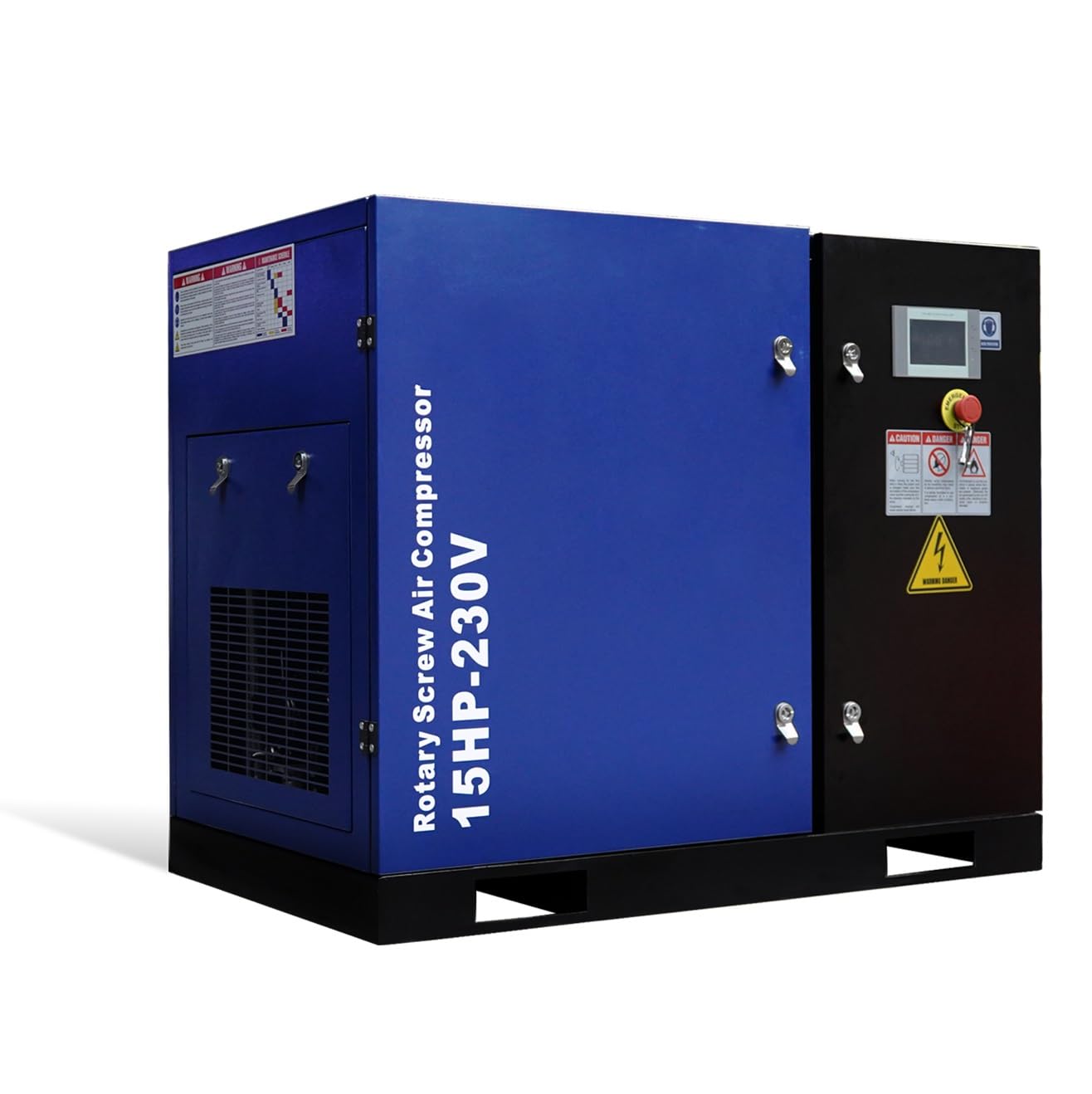

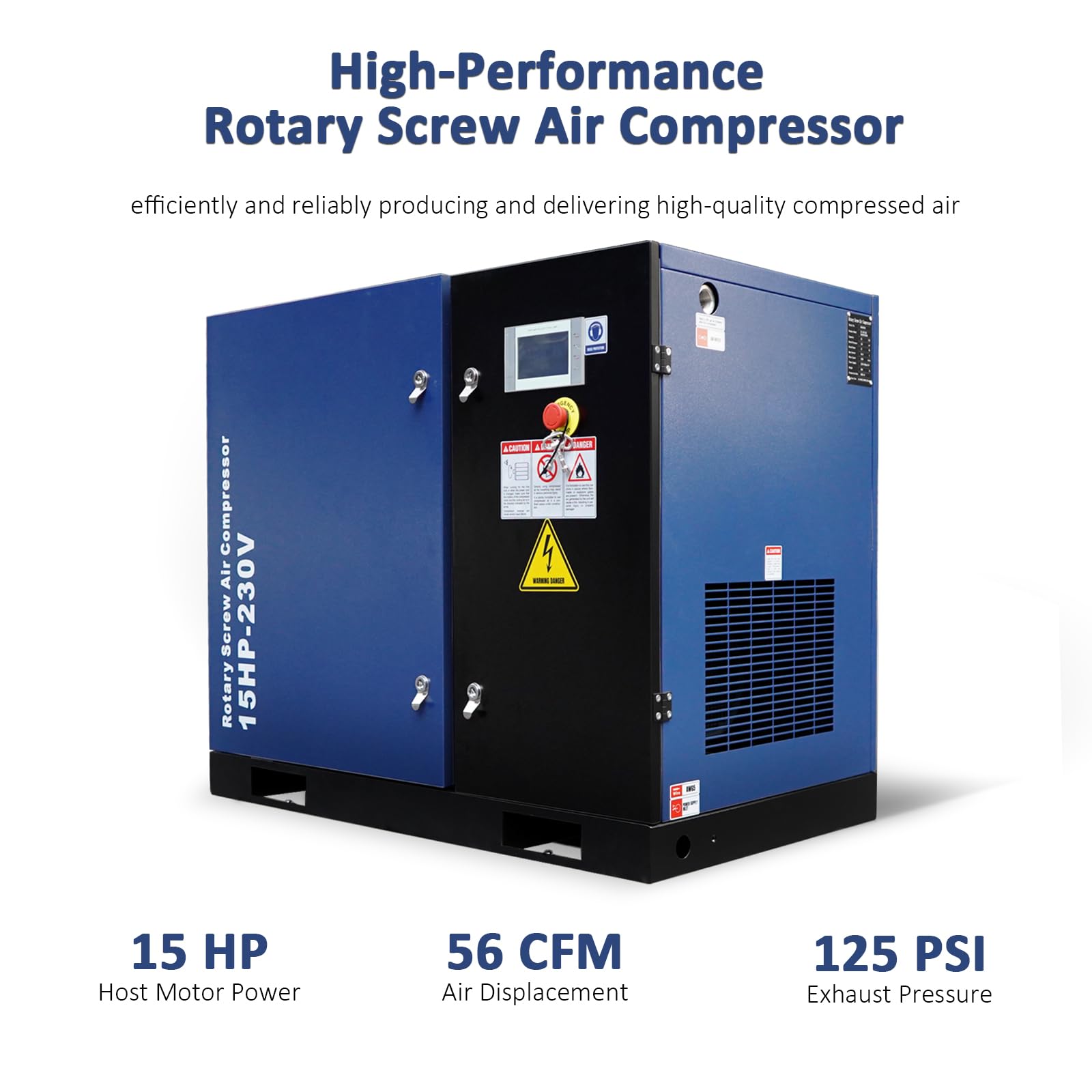

15HP Rotary Screw Air Compressor, 56 CFM, 125PSI, 230V 3PHASE 60HZ, Fixed Speed Compressor, Industrial-Grade, Heavy Duty Air Compressed System

Brand: Merax

Features:

• Air displacement: 56 CFM, exhaust pressure: 125 PSI.
• Host motor speed: 3500 r/min, start method: star triangle start.
• Host motor power: 11 KW / 15 HP, power supply: 230V / 60HZ / 3PHASE.
• Pipe diameter: NPT 1", max current: 40.9 A, aspiration state temperature: 0～104°F
• Discharge temperature: ≤A-temperature+59°F.

model number: MX03323

Part Number: MX03323

EAN: 0195358599624

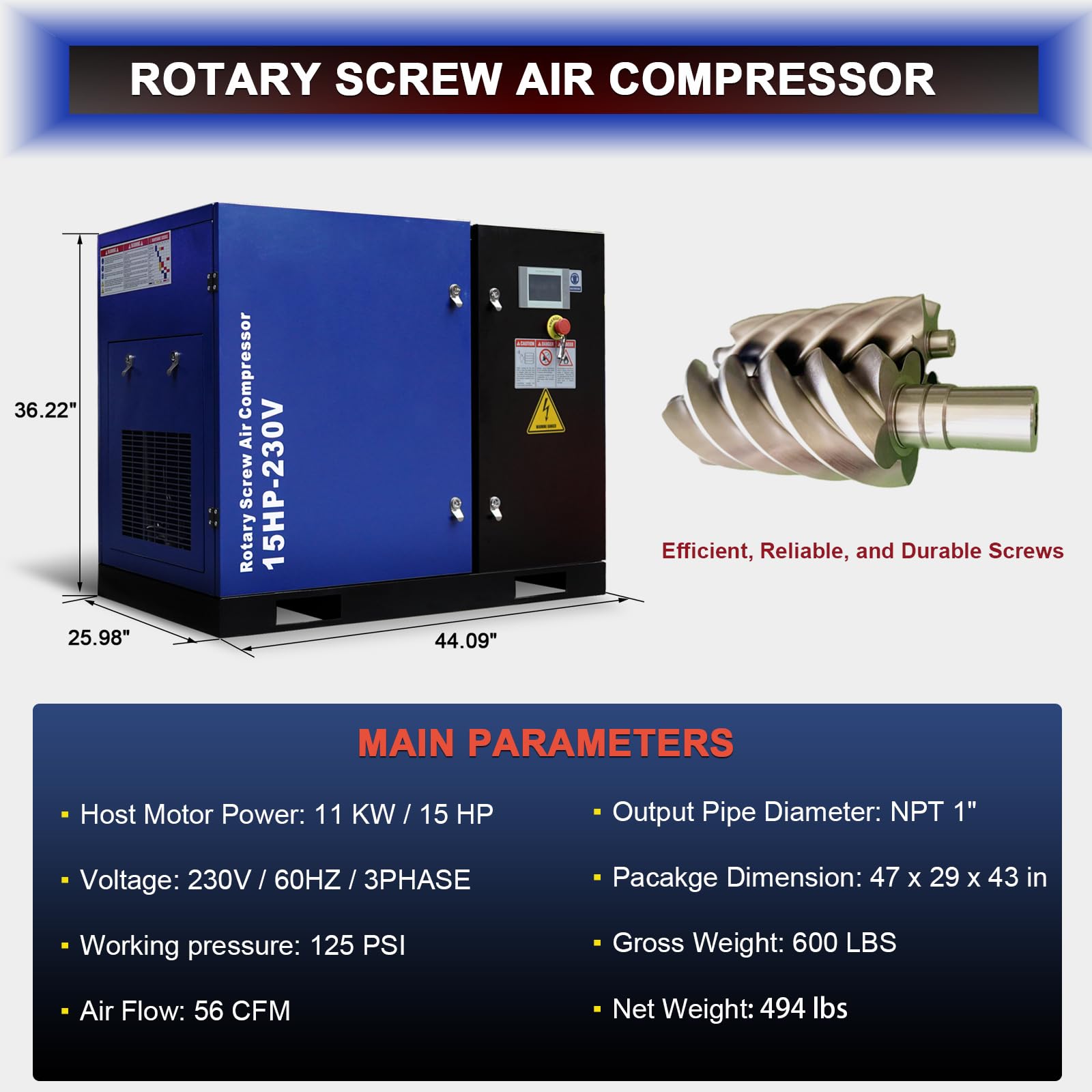

Package Dimensions: 47.2 x 43.3 x 29.1 inches
