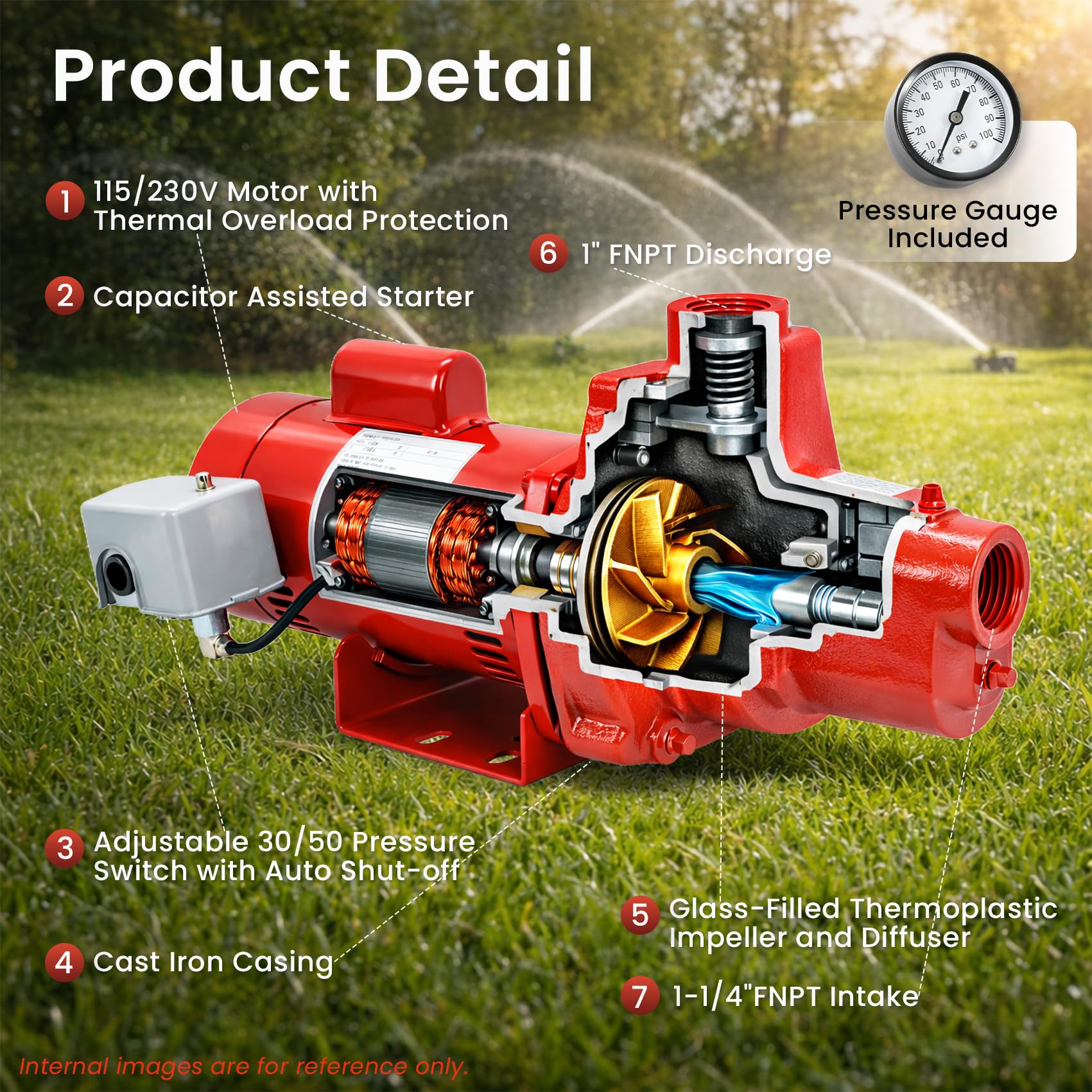

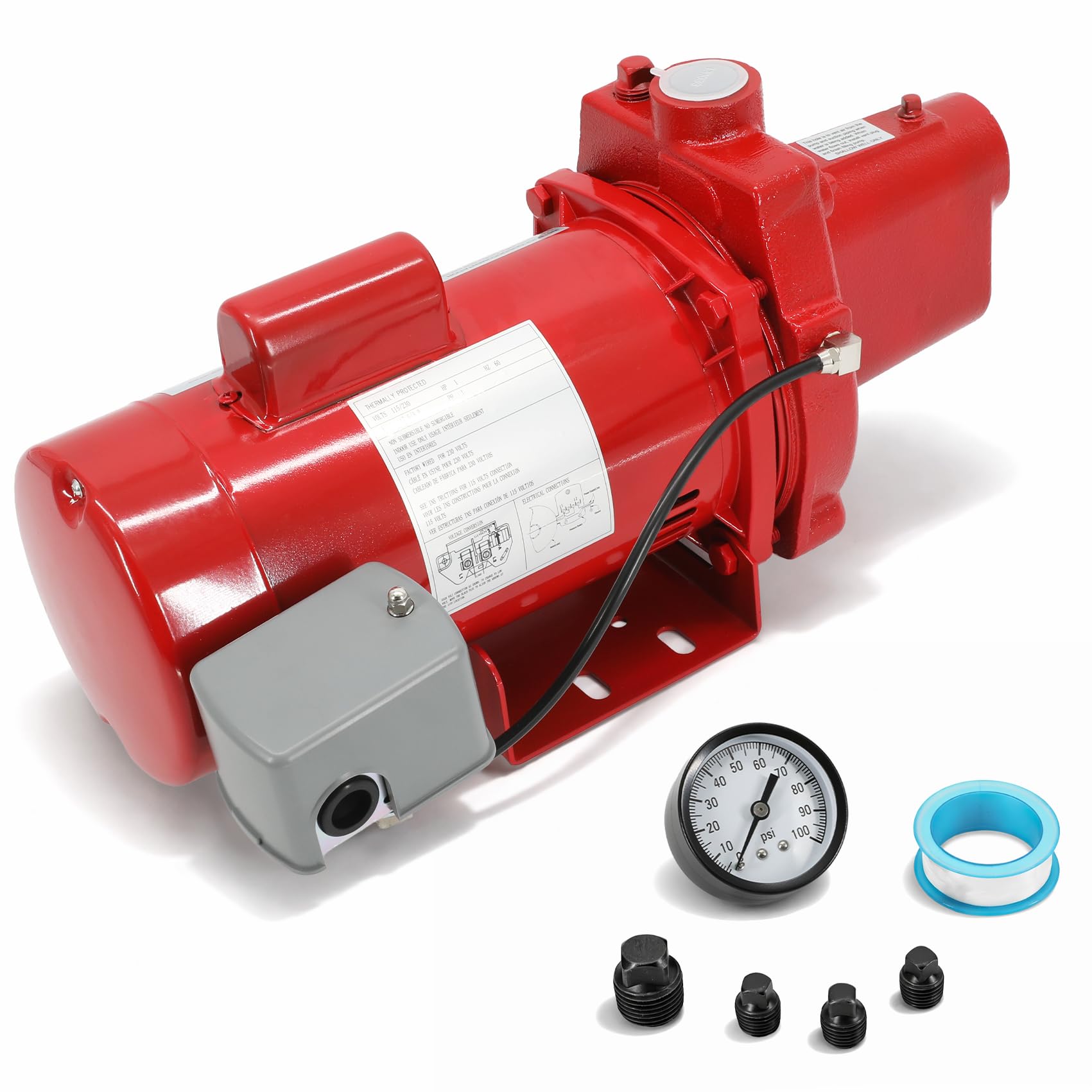

【SHALLOW JET PUMP】1HP Preformance, delivers up to 23 gallons per minute (GPM) for strong and reliable water flow.Ideal for shallow wells up to 25 feet in depth, it will get the job done.a factory pre-set 30/50 pressure switch that produces a working maximum pressure of 50 PSI and pressure gauge.

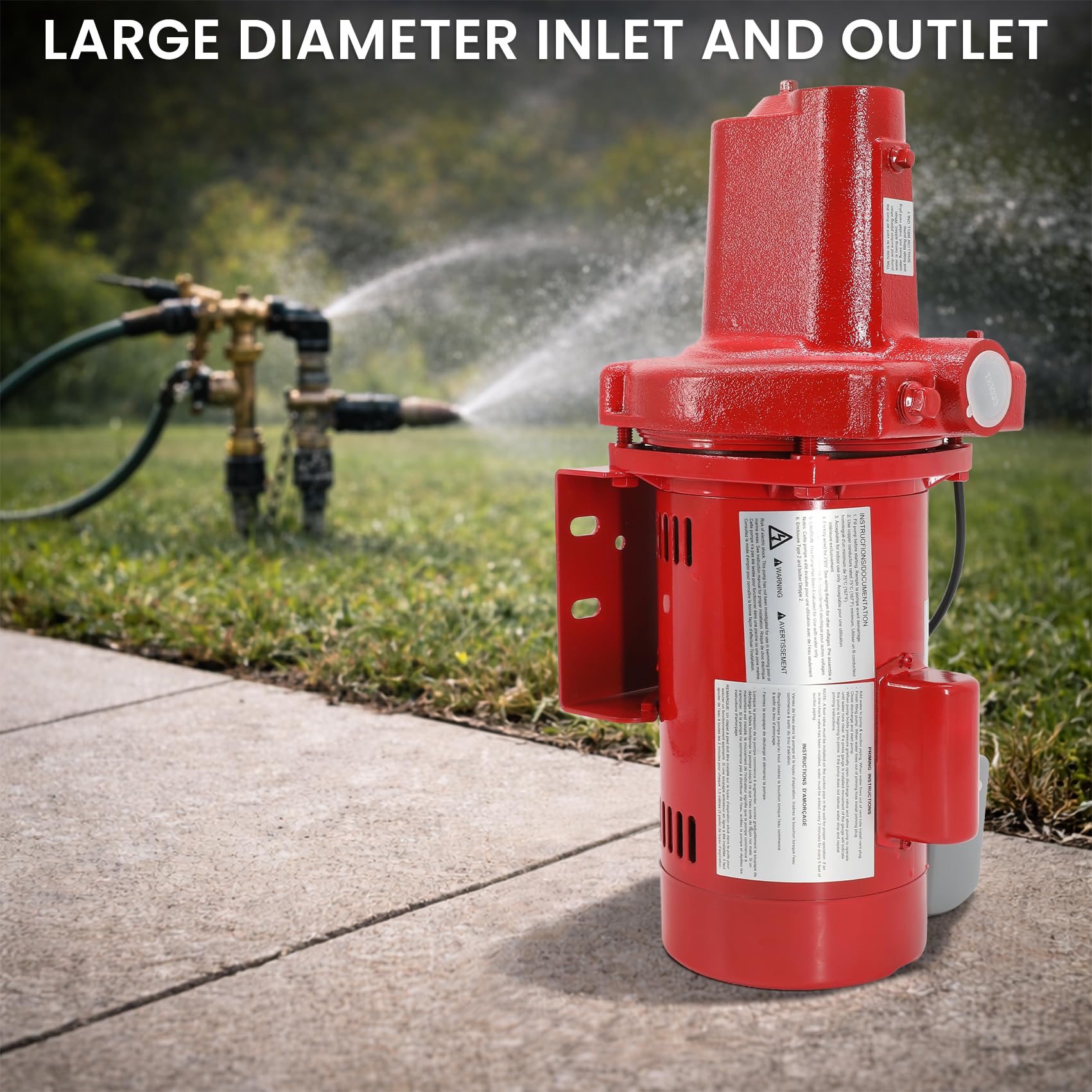

【DURABLE CAST IRON CONSTRUCTION】Built with corrosion and rust-resistant cast iron casing and volute housing for long-lasting durability and dependable operation, even in demanding environments, with a 1-1/4” FNPT suction and 1” FNPT discharge.

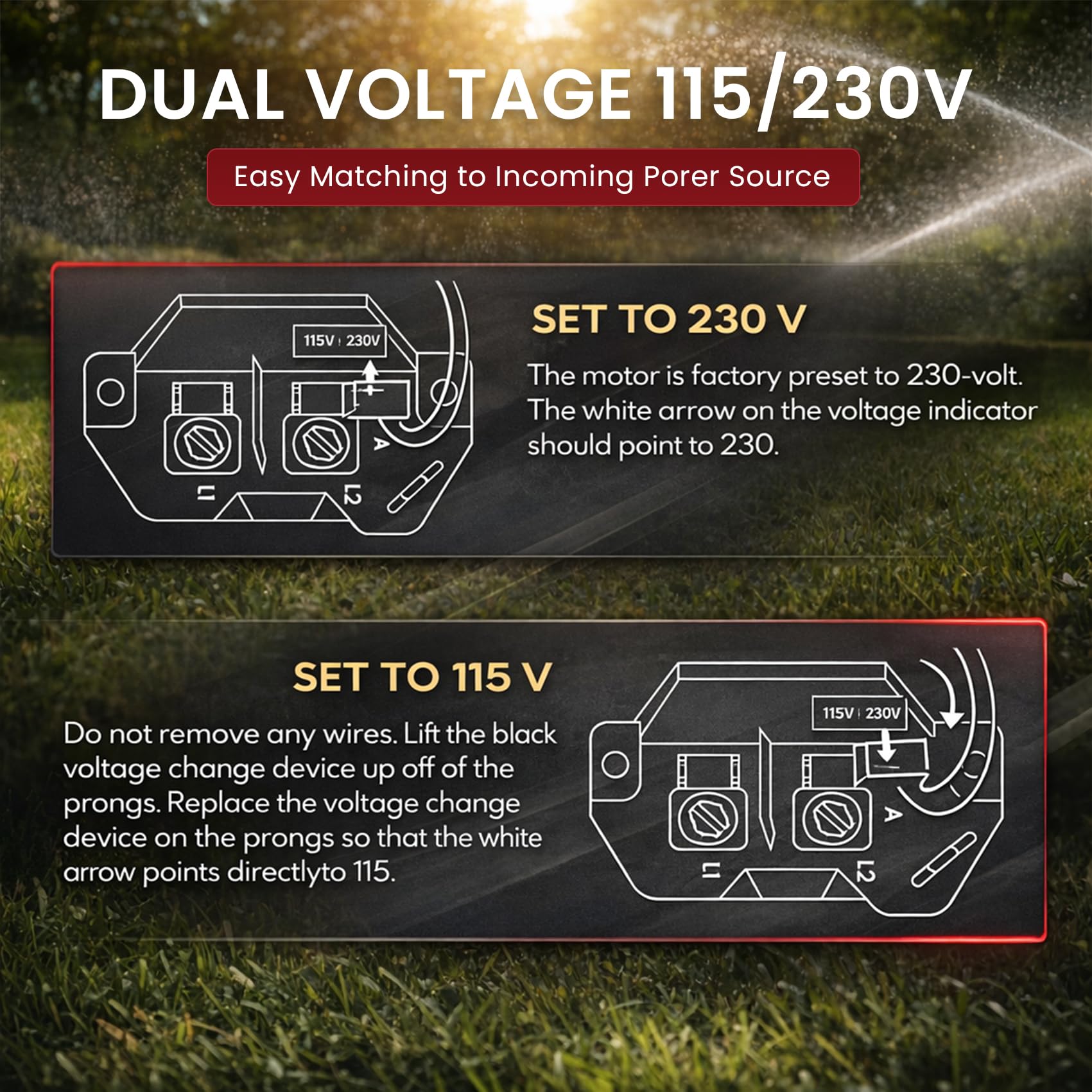

【DUAL VOLTAGE FLEXIBILITY】Supports 115V or 230V wiring (requires correct selection), voltage must be selected to match incoming power source.Includes a capacitor for increased starting power.
【Priming】Never run the pump dry. You must fill the pump housing and suction line with water through the prime plug before starting it for the first time.

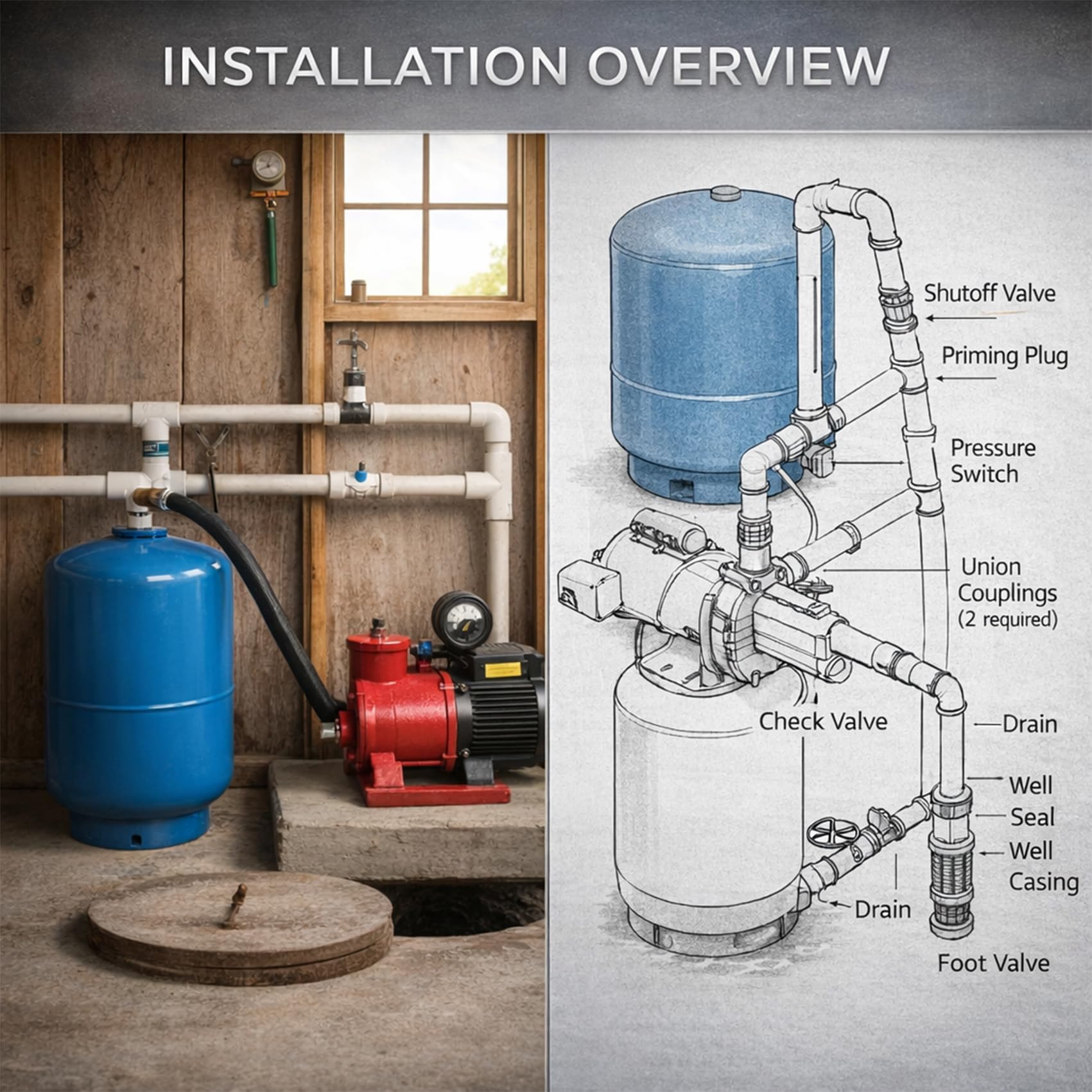

【Tank Compatibility】This pump is designed for use with a pressure tank. Ensure your tank's pre-charge (air pressure) is set to **28 PSI** (2 PSI below the 30 PSI cut-in setting).
