7560C 8-Roller Cast Iron Pump Compatible with Hypro 7560C – 22.5 GPM, 100 PSI, 3/4" NPT Ports, 15/16" Stainless Steel Shaft, Counter-Clockwise, Viton Seals, Self-Priming PTO Pump for Agricultural Lawn

Brand: Sumglicie

Color: Blue

Features:

• High Volume Output - Delivers up to 22.5 gallons per minute, providing strong, steady flow for demanding field or fluid handling applications.
• Durable Cast Iron Build - Rugged cast iron housing and rotor ensure reliable performance with water-based and light chemical fluids.
• Chemical-Resistant Viton Seals - Equipped with Viton seals and an 8-roller rotary mechanism for improved wear resistance and smooth operation.
• Versatile Installation - Works with gas engines, PTO drives, or belt-powered setups. Standard 3/4" NPT ports for easy retrofitting into most systems.
• ！！Know Your Rotation – This model (7560C) features counter-clockwise rotation. If your system requires clockwise rotation, please choose model 7560C-R. Using the wrong rotation can prevent proper operation.
• Self-Priming Design - Supports suction lift up to 6 feet, ideal for liquid transfer, fertilizer pumping, or field fluid delivery systems.
• Self-Priming Note - For reliable self-priming after tank runs dry, be sure to install a check valve on the inlet and ensure the pump is primed (contains fluid) before restarting. A dry pump may require manual priming on first use or after full drainage.

model number: 7560C

Part Number: 7560C

Details: The 7560C 8-Roller Pump is engineered for consistent and high-capacity liquid transfer across farming, commercial, and light industrial applications. Made of cast iron and featuring a robust 8-roller design, it delivers up to 22.5 GPM at 100 PSI (max 300 PSI intermittent).

This self-priming pump supports suction lift and integrates easily with common engine-driven, PTO, or belt drive systems. Standard 3/4" NPT ports allow for straightforward plumbing integration.

Fitted with Viton seals, it is resistant to many fertilizers and agricultural chemicals. The pump’s counter-clockwise rotation suits most equipment configurations. For clockwise needs, model 7560C-R is available.

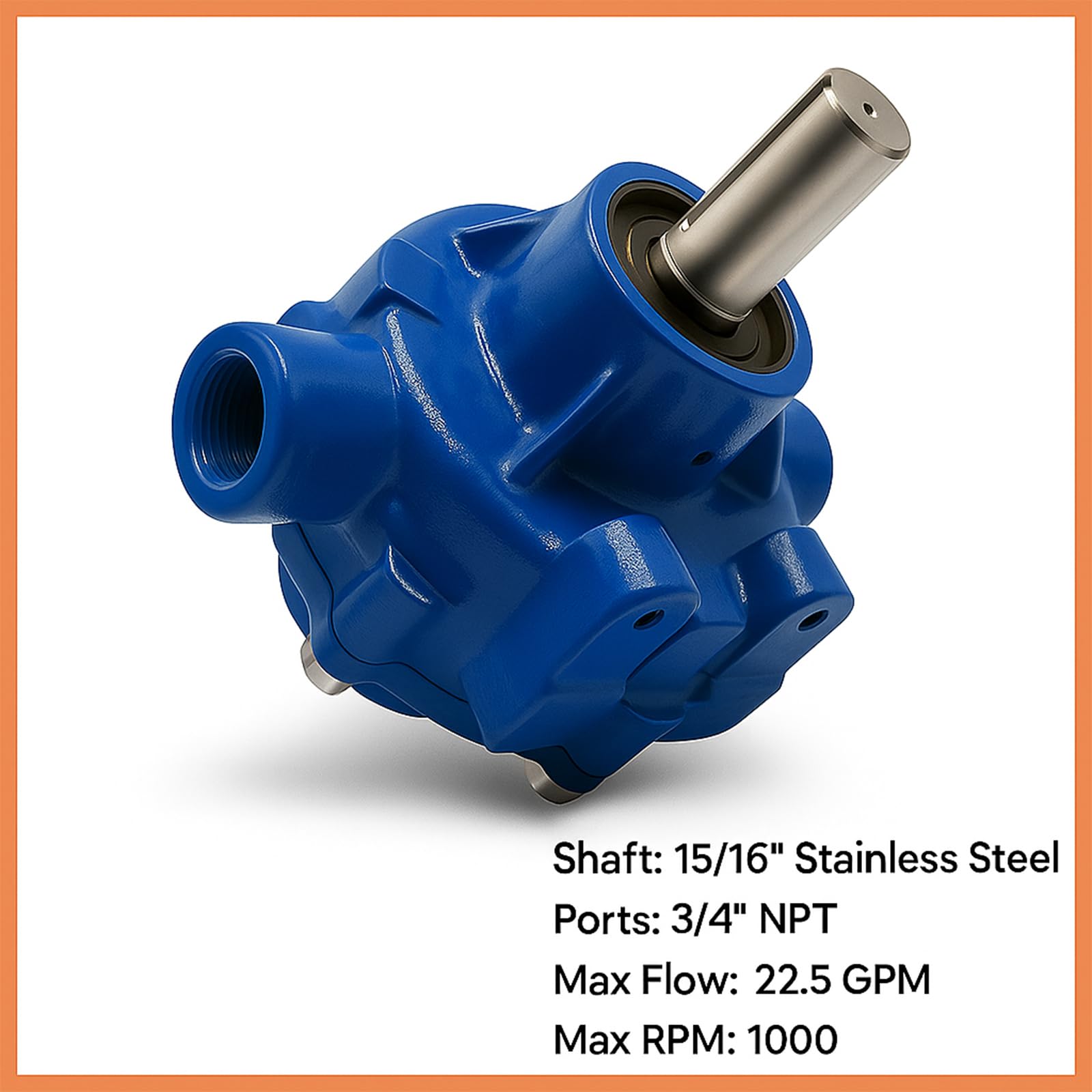

Technical Highlights:
Max Flow: 22.5 GPM

Max Pressure: 300 PSI (intermittent), 100 PSI (continuous)

Max RPM: 1000

Max Fluid Temp: 140°F (60°C)

Material: Cast Iron

Shaft: 15/16" Stainless Steel

Ports: 3/4" NPT

Seals: Viton

Self-Priming: Yes (up to 6 ft)

Rotation: Counter-clockwise (standard)

EAN: 0717097884542

Package Dimensions: 9.0 x 8.7 x 8.7 inches
