AB 33'' Side Arm Heat Exchanger Single Wall Fin Heat Exchanger Fin-Enhanced Stainless Steel 304 1"FNPT Water Heater and 3/4" FNPT Cold Water 18,500 Btu/hr

Brand: AB

Color: Silver

Features:

• Efficient Heating: Our side arm heat exchanger is composed of highly conductive stainless steel, 33" in length and can dissipate up to 18,500 Btu's of heat per hour, capable of heating up to a 40Gal tank.

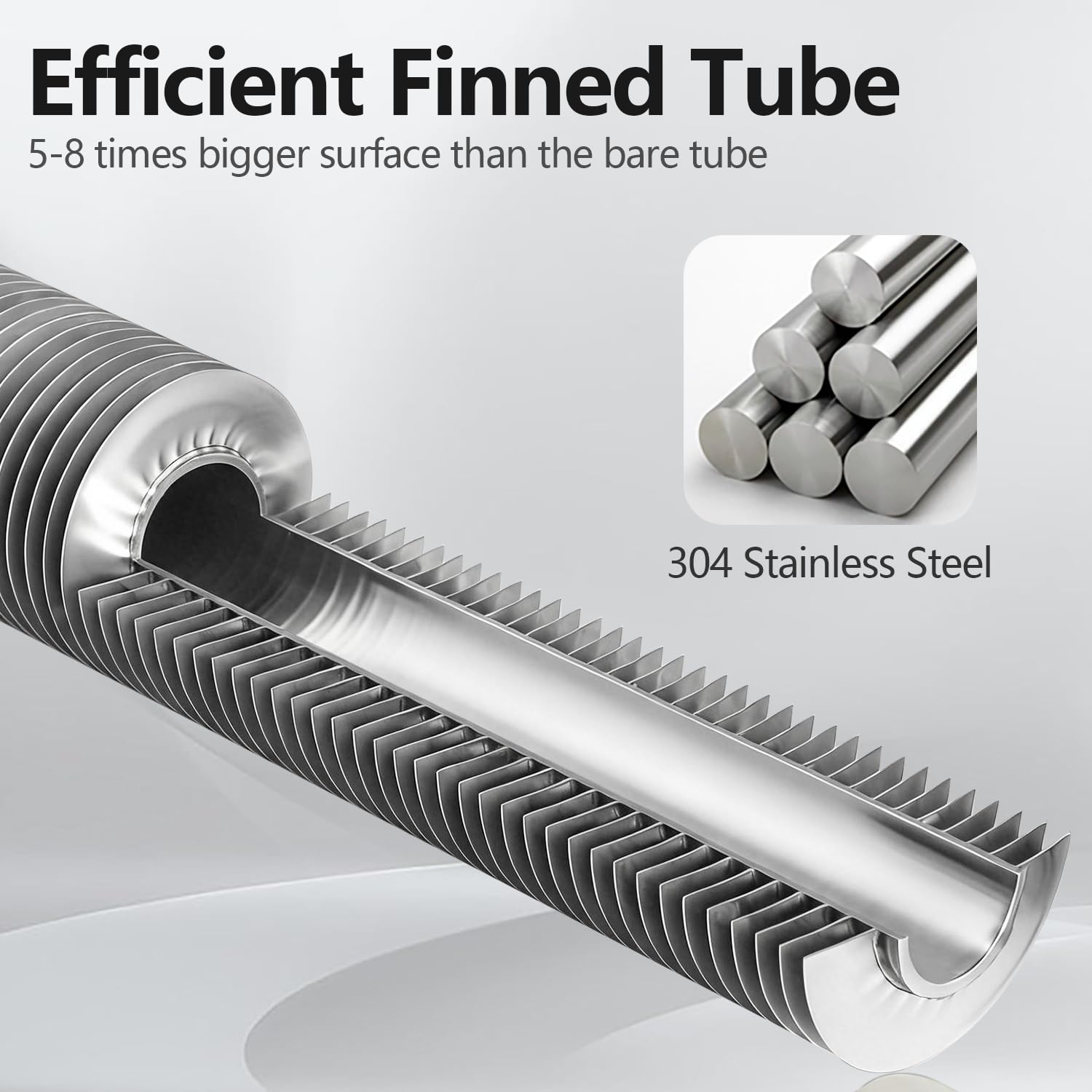

• Optimised and Upgraded: Compared with the traditional ones, our side arm heat exchanger is made of highly conductive stainless steel, which can heat up quickly and evenly; the internal finned tube is used to expand the heat exchange area inside the heat exchanger (5-8 times bigger than bare tubes), with high efficiency and low loss to maximize the heat exchange efficiency.

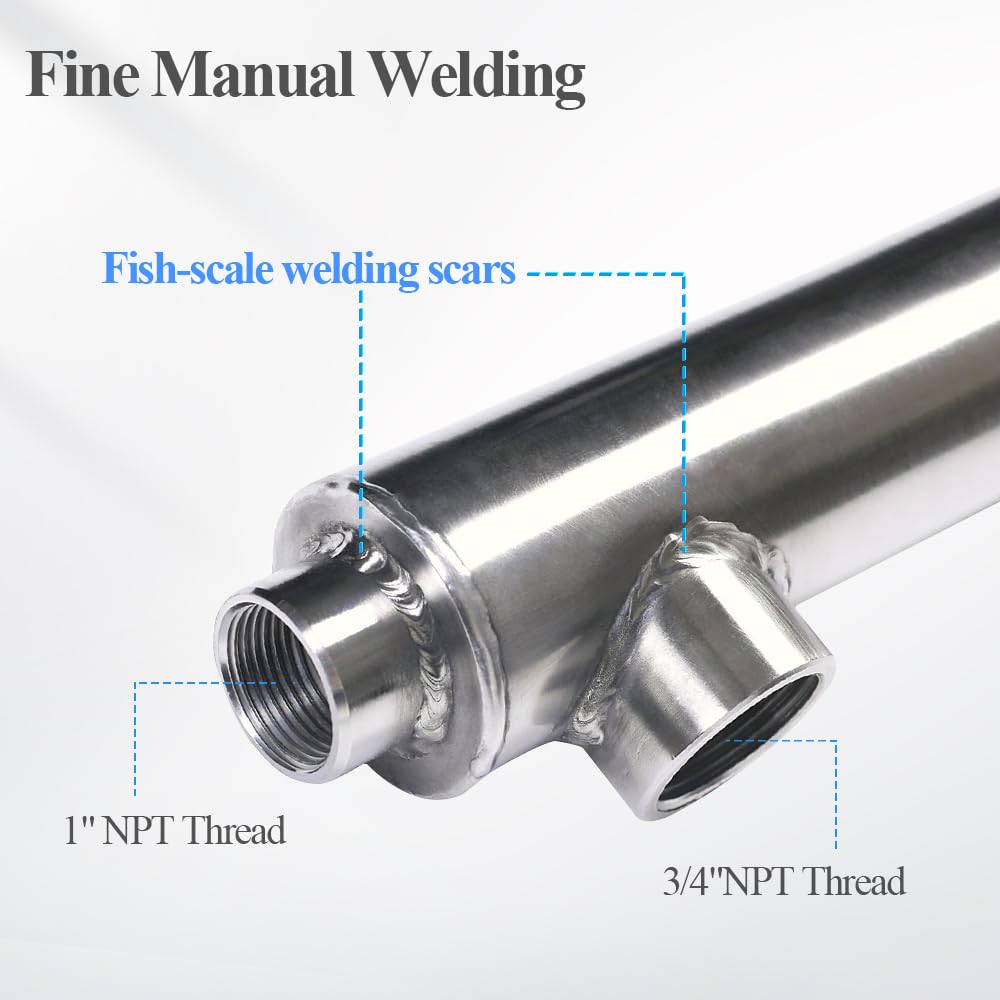

• Convenient Installation: The ports are standard FNPT threads, 3/4 "FNPT tube (Tank side/Cold water) and 1 "FNPT Shell (Water heater side/Hot water), the threads are deep and clear, and the installation is faster.

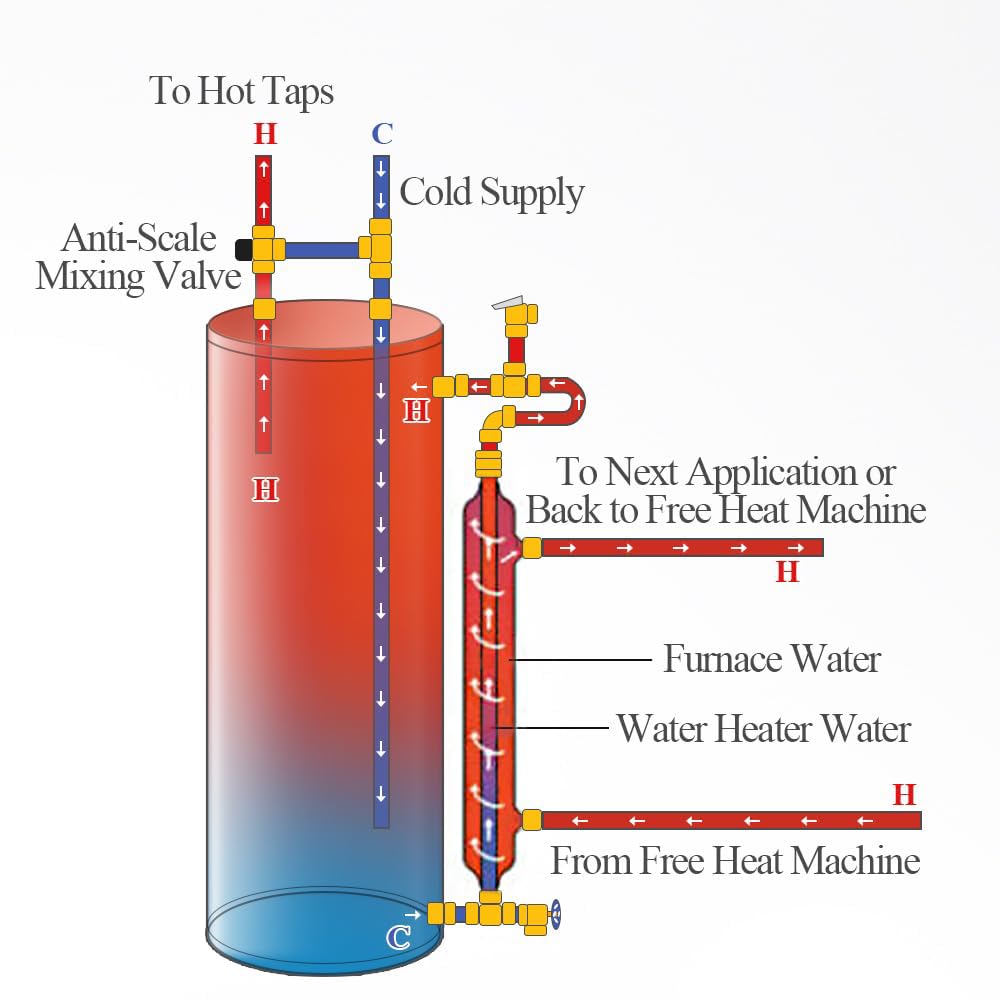

• Thermo-siphon Circulation:Compared to conventional ones, our side arm heat exchangers are designed to circulate using the natural thermo-siphon principle on the domestic hot water side, which saves on pumps and associated electricity costs; on this basis it only takes 3.4houres to heat a 40Gal tank.
• Wide application:Our heat exchangers have a small, space-saving design and slim shape . Widely used in hot water tanks, domestic hot water heating, outdoor wood furnace, solar hot water heating and residential plumbing.

model number: 40Gal-1''Shell+3/4'' Tube-Single Wall

Part Number: FES95

Package Dimensions: 33.5 x 3.0 x 2.5 inches
