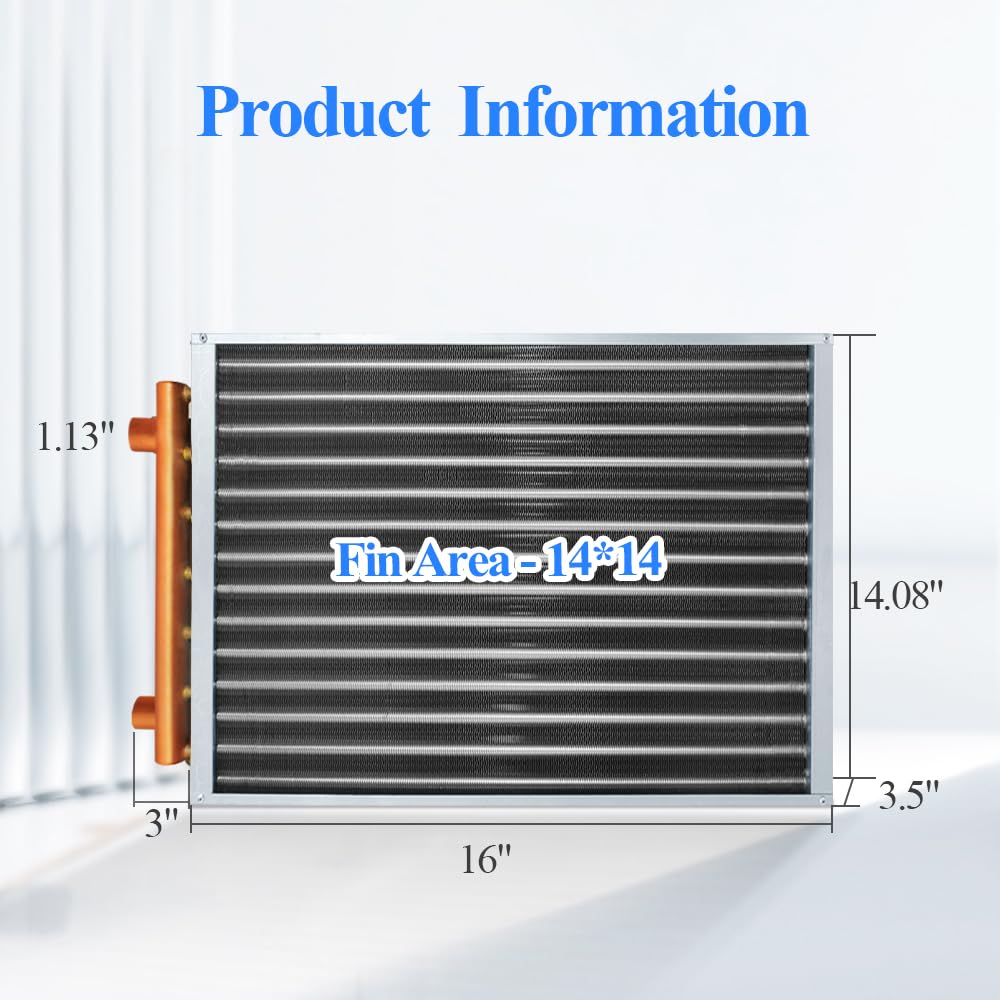

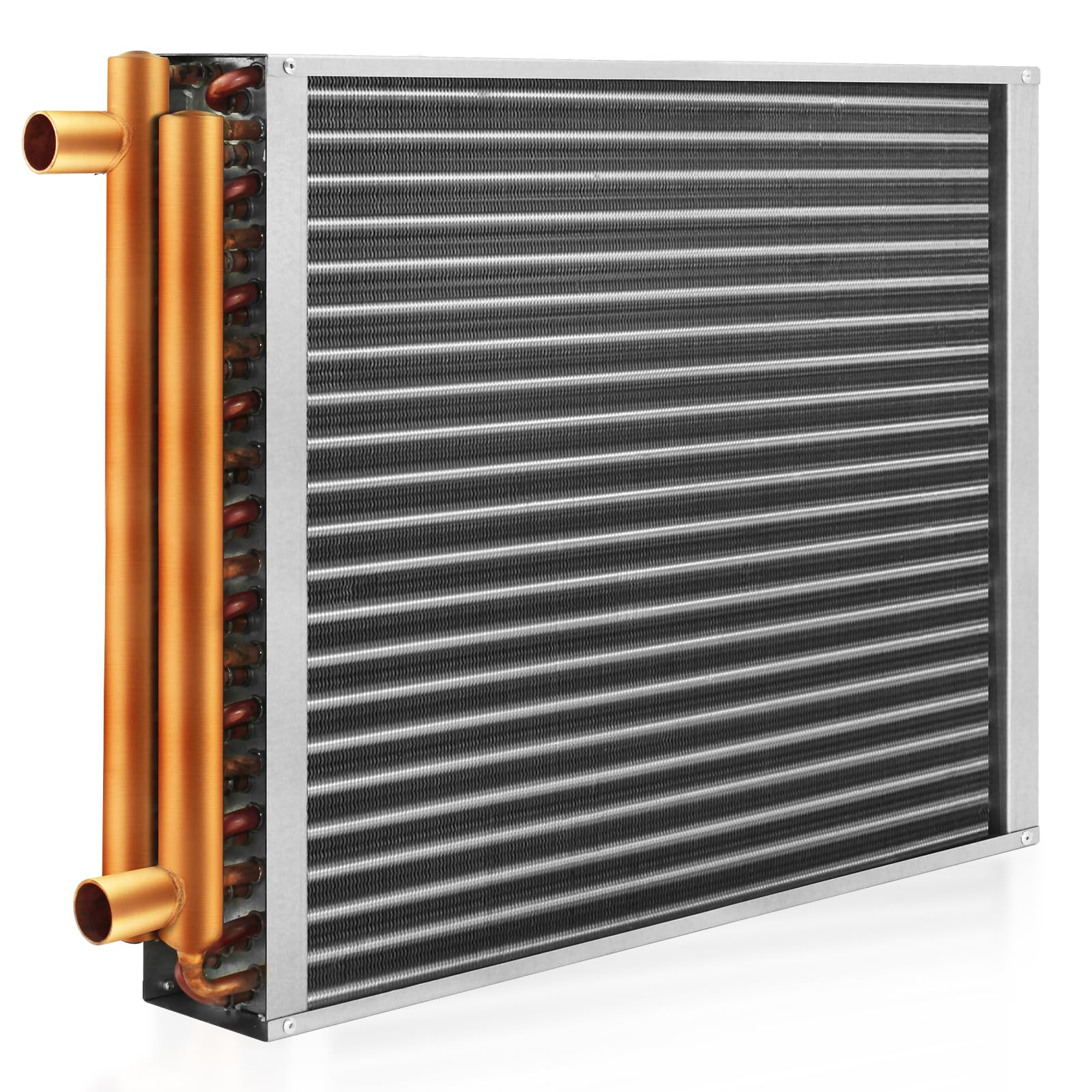

AB Water to Air Heat Exchanger 14x14 with Copper Ports 1" for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating

Brand: AB

Color: silvery

Features:

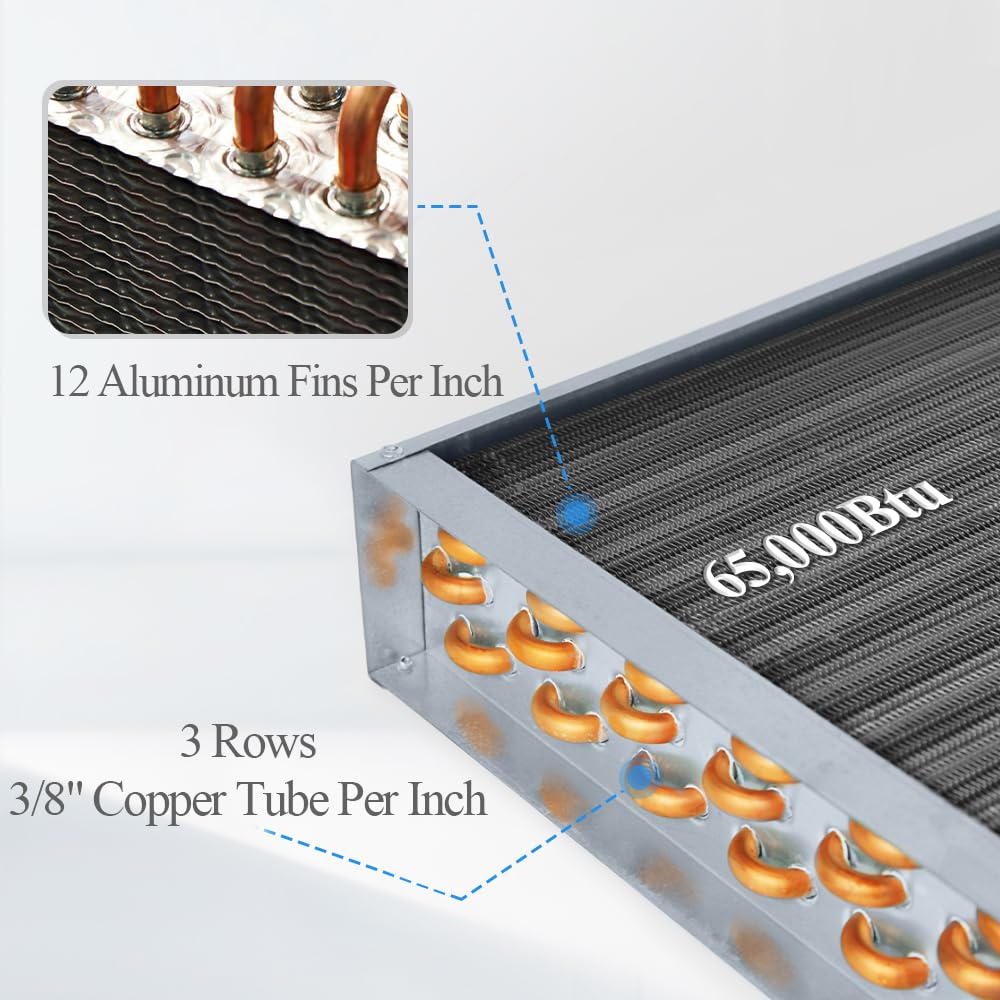

• [Excepetional Performance] The heat exchanger has a capacity of 65,000 Btu.Depending on the application, the heat exchanger can produce up to 36OkBtu of heatper hour, with 12 aluminum fins and 3 rows of 3/8" seamless copper tubes per inch.The combination of wavy fins and seamless copper tubes, which enhanced contactareas both inside and outside the tubes, results in a 10-20 percent increase in heat transfer performance, maximizing heating or cooling efficiency.

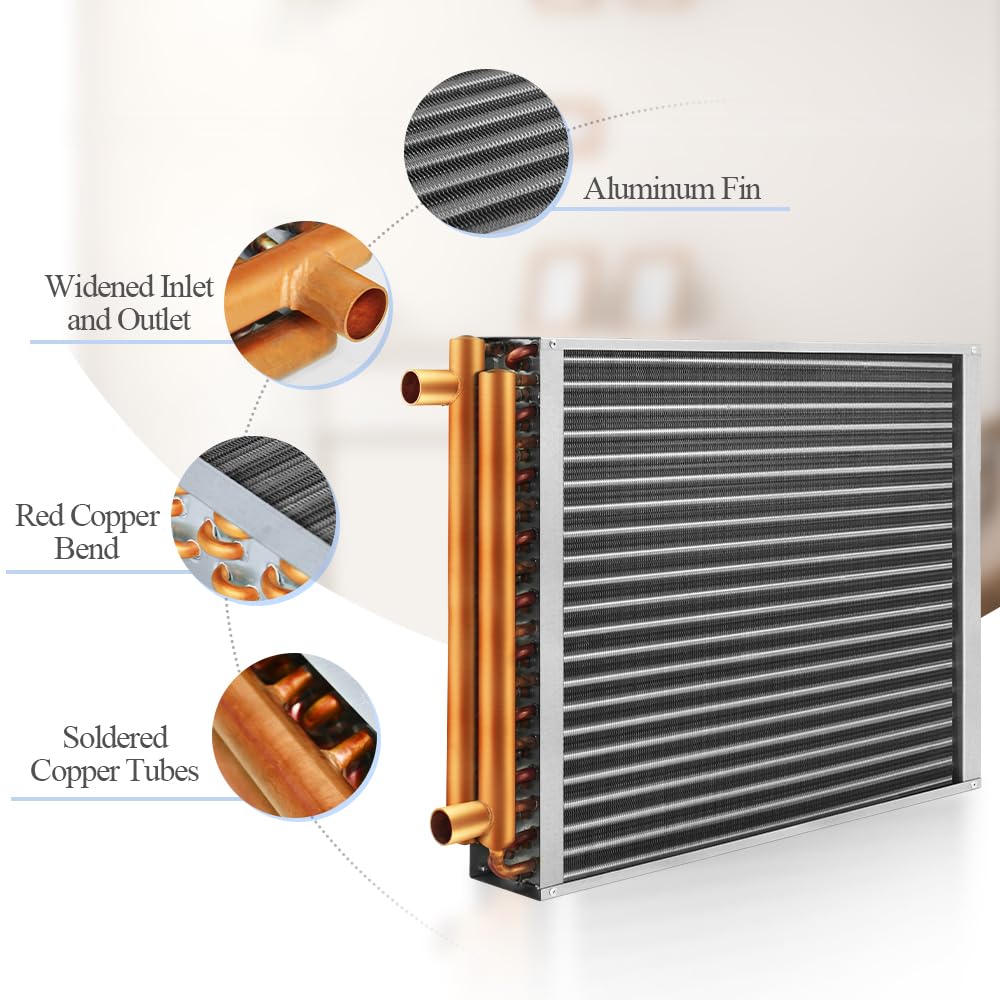

• [Premium Material] Our heat exchangers are supported by steel shells, and the edges and contact points are base brazed, which is very solid and not easily affected by highpressure and temperature. Copper and aluminum are highly conductive materials,which make the heat exchanger have good performance and economy in heat transferand cooling.The fins are coated with epoxy resin, which improves the hardness and wear performance of the fins, prolonging the service life of the fins.
• [Energy-efficient and Affordable] Our water-air heat exchangers allow for water-airheat exchange movement through a variety of sources boilers, solar panels, etc.Thismeans you can utilize a variety of renewable energy sources and save energy.
• [Convenient Installation] This new type of heat exchanger is easy to install, with avariety of options available. It can be directly connected to the pipeline and fixed withclamps; it also can be directly welded to the pipeline and adapters or be connectedwith rivets to meet meet a multitude of installation needs.

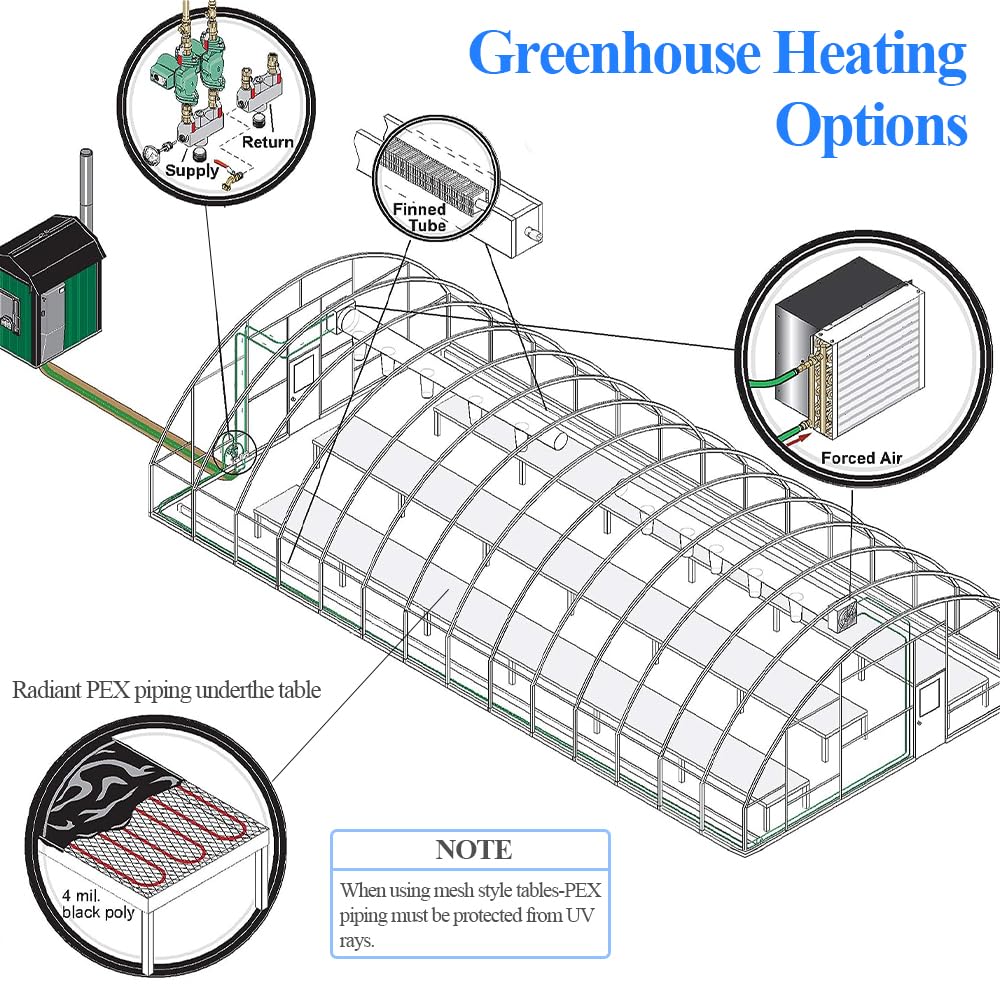

• [Multiple Applications] Water-to-air heat exchanger offers a high level of thermalefficiency and durability in a compact & lightweight unit, which maximizes spacesaving, suitable for Outdoor Wood Furnaces, Residential and Commercial Heating andCooling, Hybrid Systems, Air Conditioning, Inverter Cooling, and so on.

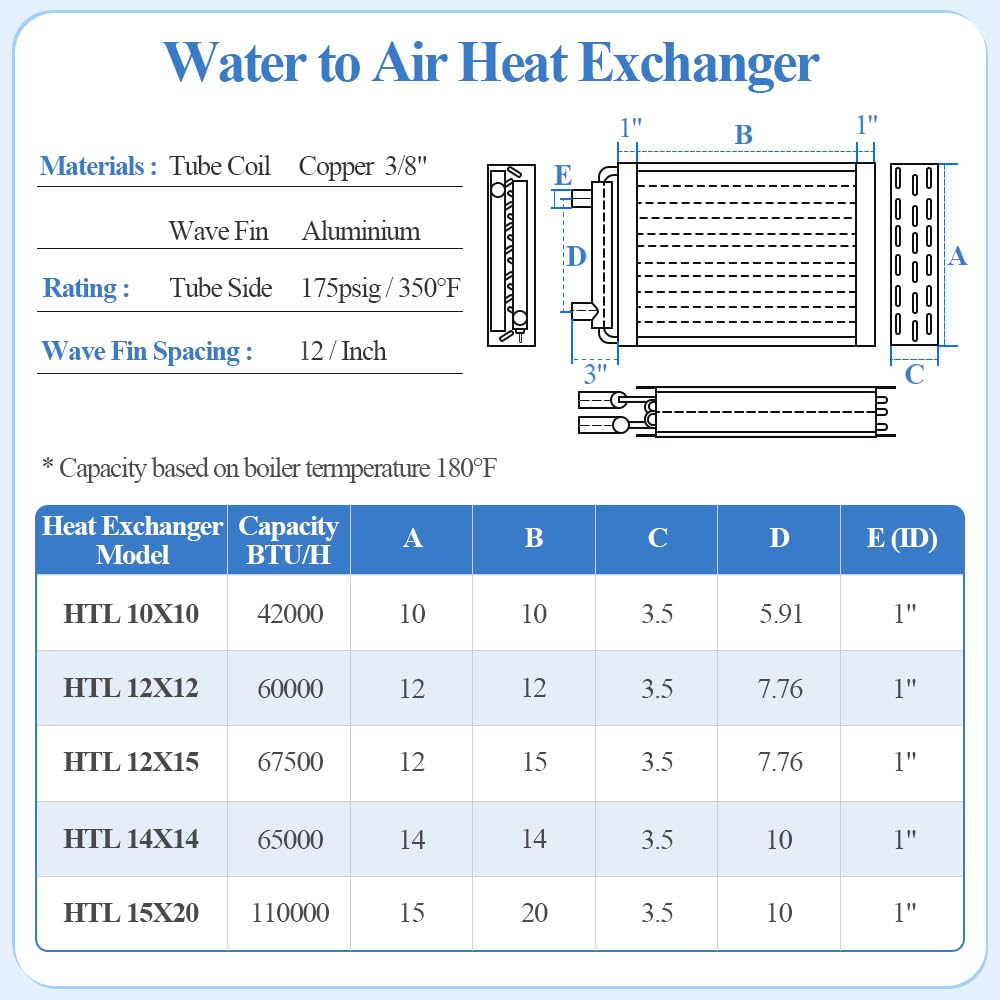

model number: HTL12X12-36X36

Package Dimensions: 20.6 x 15.7 x 6.0 inches
