AEDIKO 5 Sets High Voltage Generator 15KV High Voltage Generator Inverter Arc Igniter Coil Module Disassembled Parts (5 Sets)

Brand: AEDIKO

Color: 5 Sets

Features:

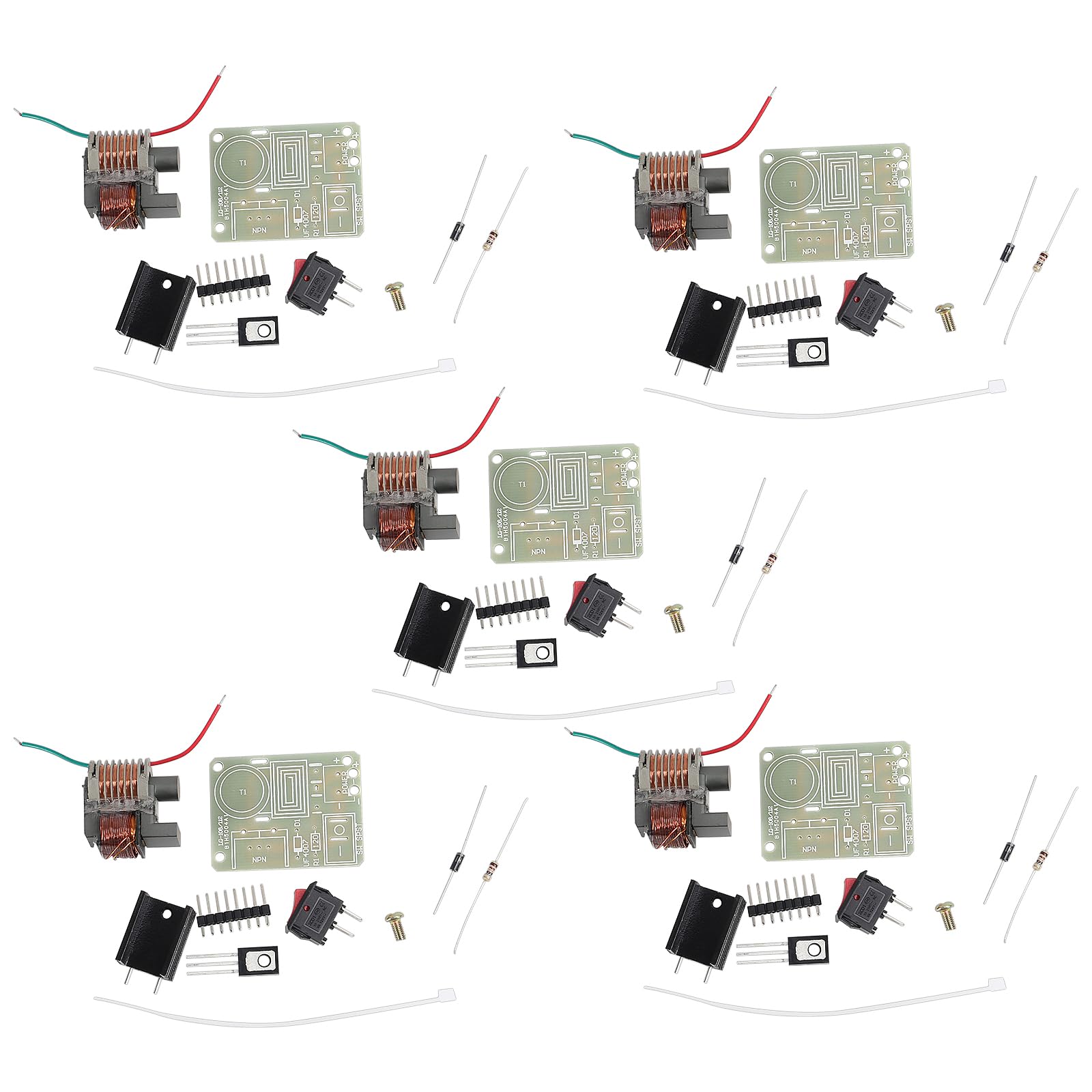

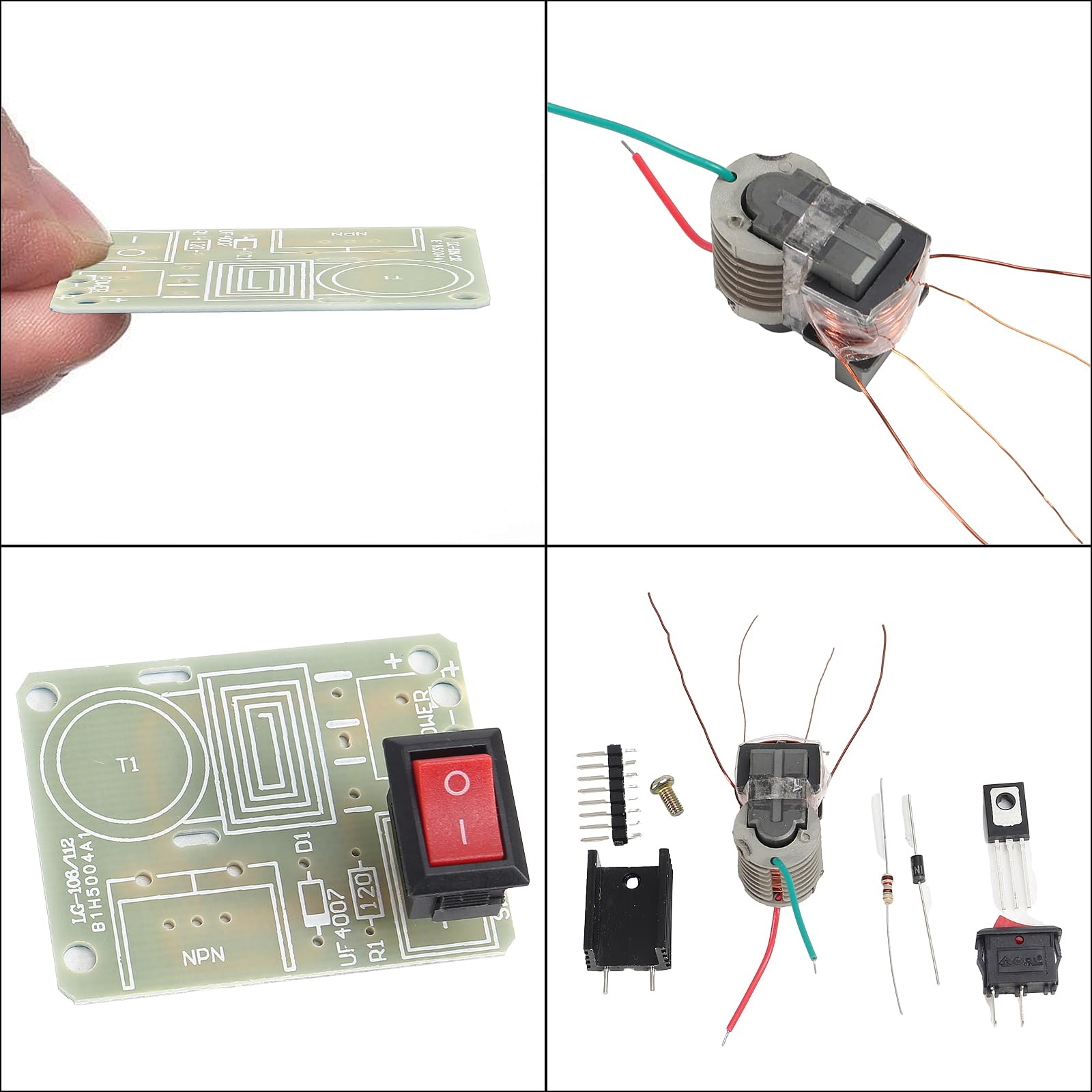

• This Kit is Made for the Booster Coil and has a Professional Circuit Diagram for the Convenience of Electronics Enthusiasts. Package Contents of One Kit: 1xPCB Board;1x120 Ohm Resistance;1x Ultra-Fast Recovery Diode UF4007; 1x N20 Transistor;1x Heat Sink;6x M3 Screws;1x Boat Switch;1x 8 Pin Header

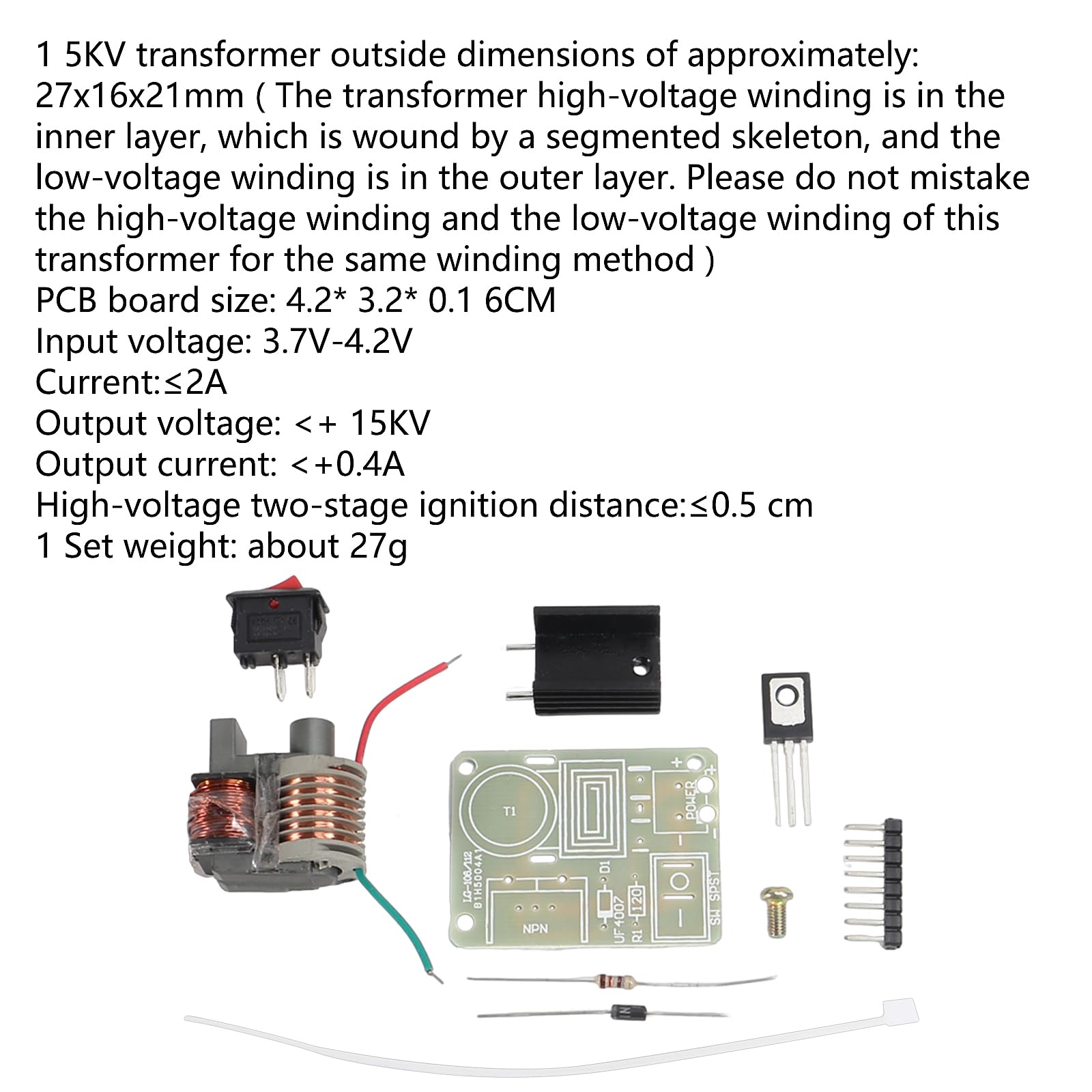

• Voltage: Input Voltage: 3.7V ~ 4.2V DC ; Output Voltage: 15kV AC ;Current: ≤2A; Output Current: <+0.4A
• Transformer Structure:There are 2 Primary Windings, Primary Windings, Feedback Windings, and High Voltage Secondary Outputs. Other: 15KV Transformer is Designed for Large Output, Limited Output Can Not Exceed 15KV and Radian is 1CM , Higher Output Voltage May Damage the Transformer
• Applications:15KV Boost High Voltage Generator Kit Widely Used for Chinese-Language General Experiments, Electronic Instruments, Negative Ion Generators, Scientific Small Production, etc. This Circuit Works with a Stable High-Frequency Arc, Which is Extremely High in Temperature and Can Ignite Combustibles Easily . Therefore, It is Called a Plasma Lighter

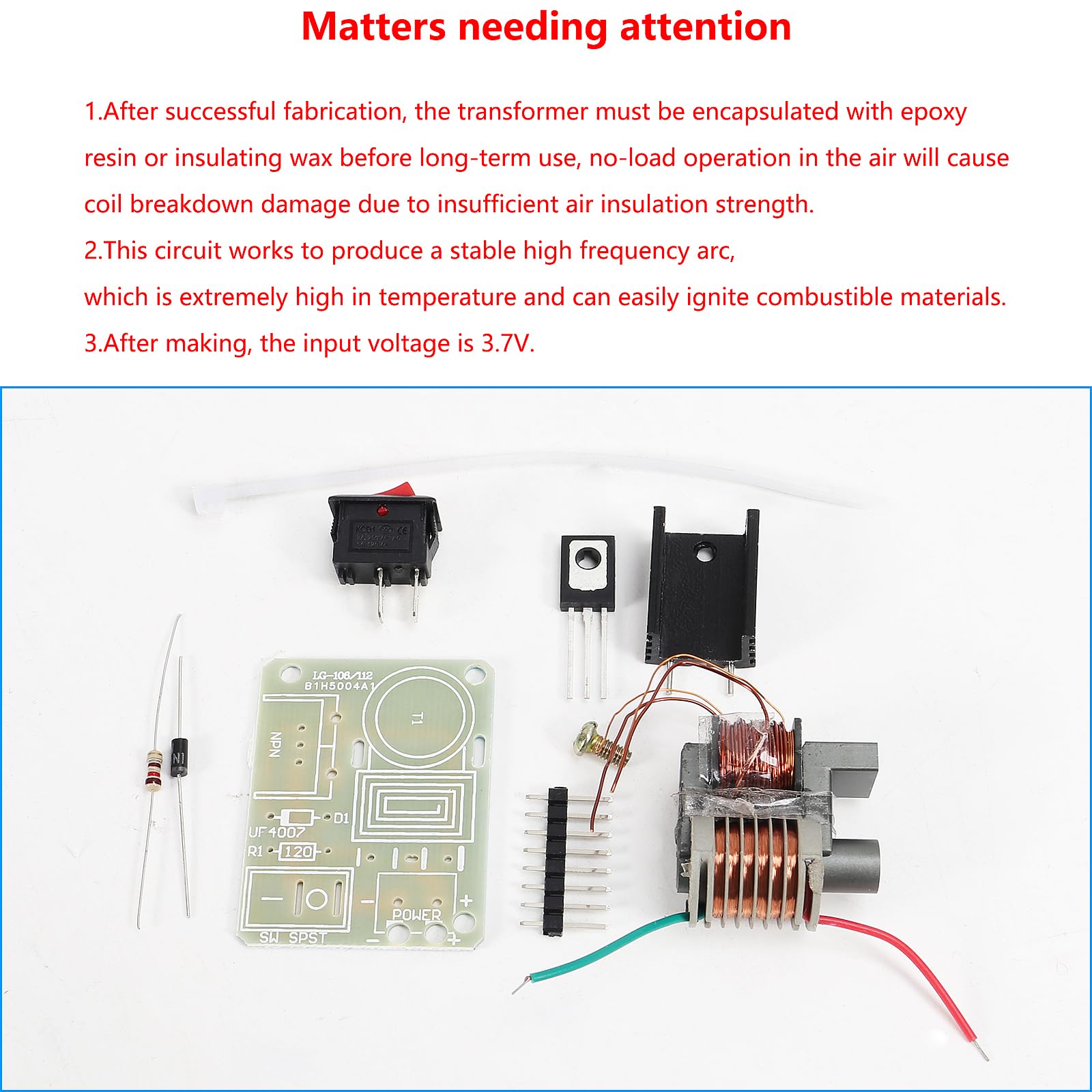

• Important: Before Welding the Transformer, It is Necessary to Scrape Off the Welded Portion of the Coating and the Covered Wire Tip With a Blade and Then Solder. After Successful Production, the Transformer Must be Potted with Epoxy or Insulating Wax for Long-Term Use. The Maximum Output of the Transformer is Designed to be 15KV, and the Maximum Output Must NOT Exceed 15KV, Which is 1.5cm Arc

model number: 14969

Part Number: 14969

EAN: 0687117736383

Package Dimensions: 5.1 x 3.9 x 1.0 inches
