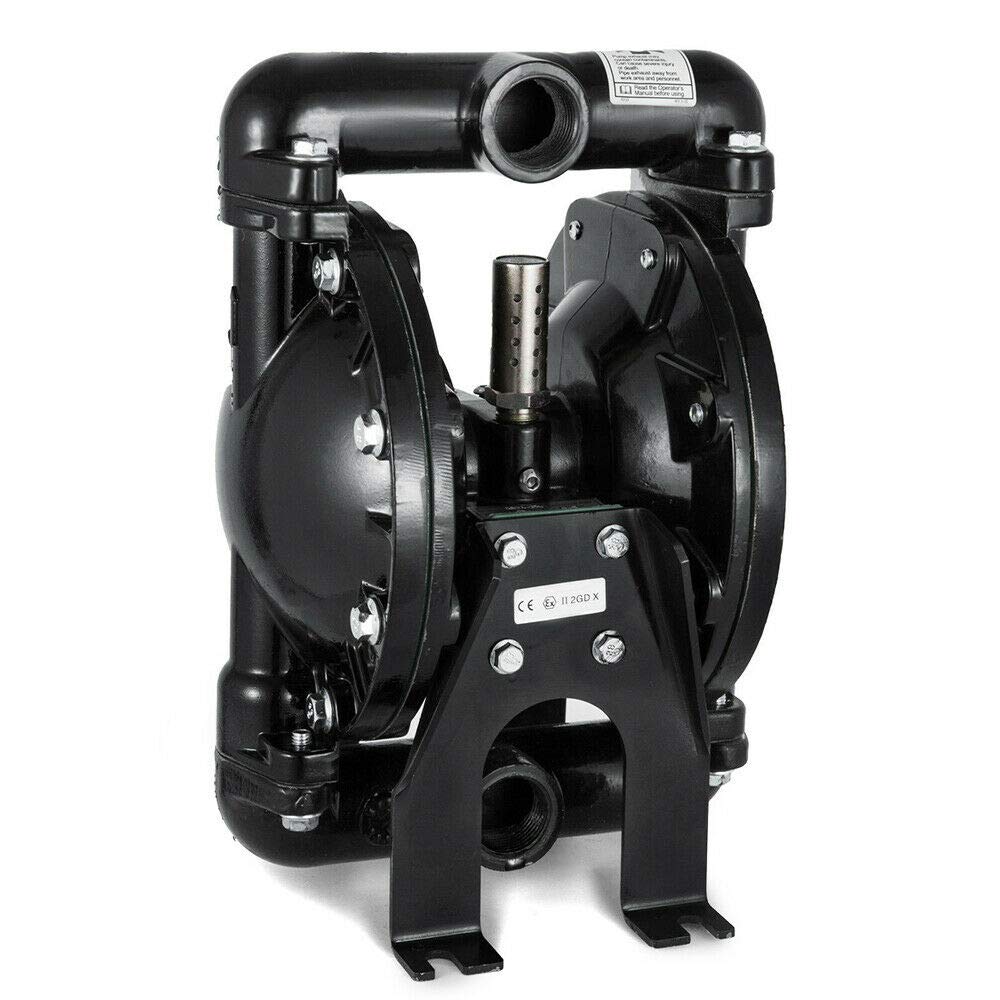

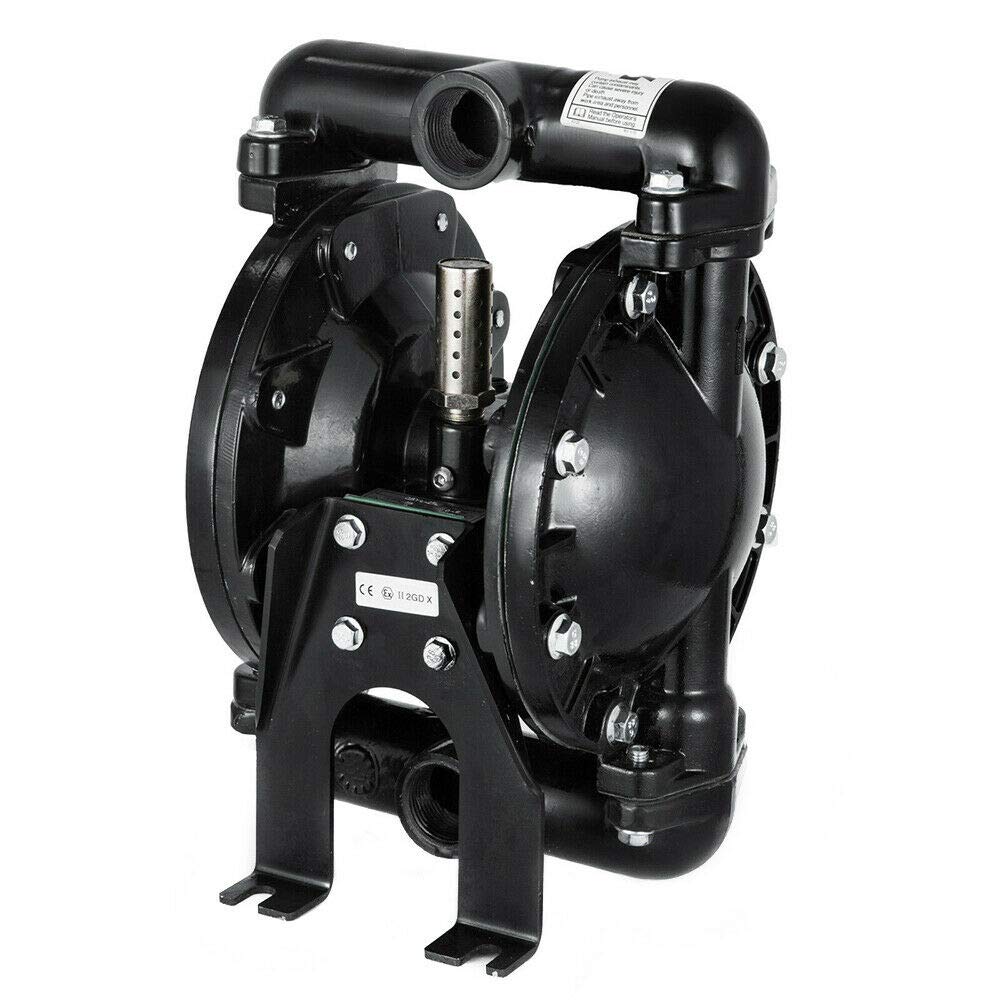

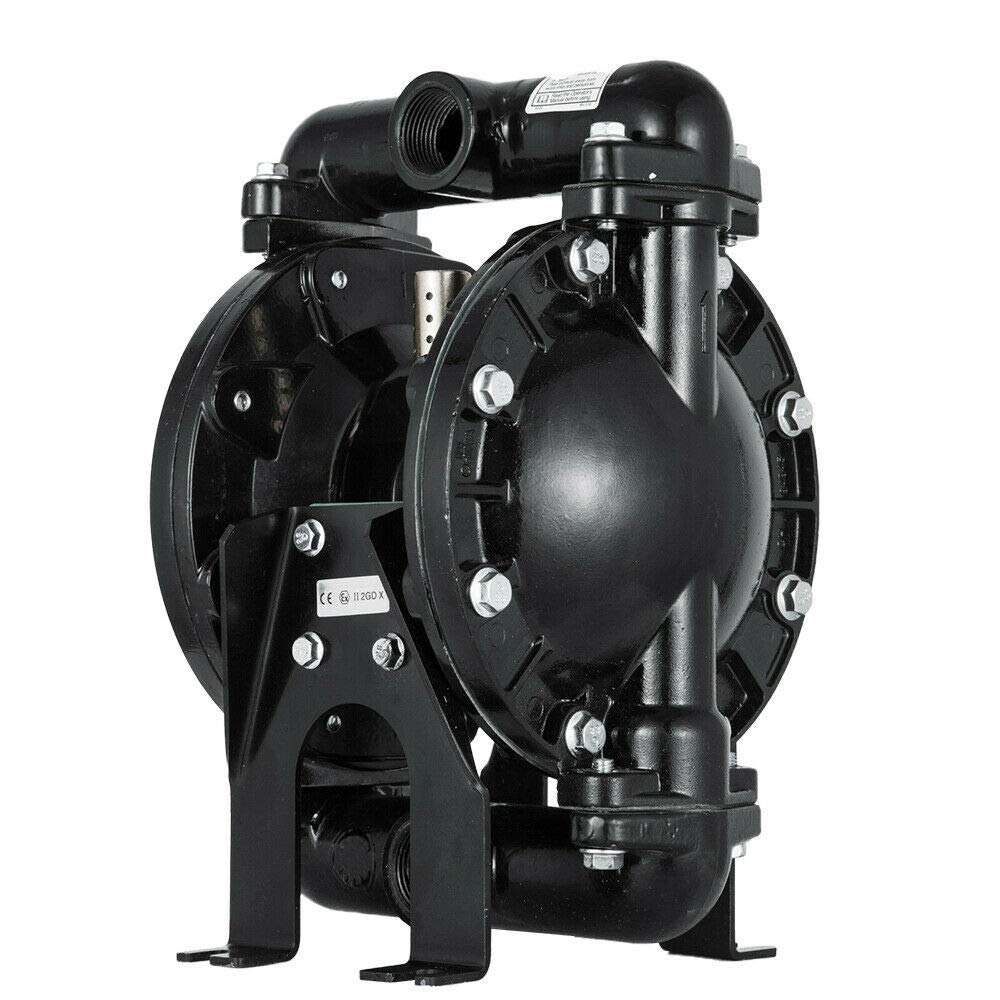

Air-Operated Double Diaphragm Pump 1 Inch Inlet & Outlet, Heavy Duty Pneumatic Diaphragm Transfer Pump for Diesel, Grease, Kerosene and Oil 35GPM 120PSI 1/2 Inch Air Inlet

Brand: Eapmic

Features:

• 【Wide Applications】- Diaphragm pump is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form shut-off valves) to pump a fluid. Perfect for use with water. Ideal for use with low viscosity petroleum fluids such as diesel, kerosene, motor oil and waste oil. 【Note】Can not used for corrosive liquid.
• 【Main Parameters 1】- Item Name: Diaphragm pump; Type: Double diaphragm; Operation Type: Air-operated; Model: QBY4-25L; Body Material: Aluminum; Inlet Port: 1 inch (25 mm); Outlet Port: 1 inch (25 mm); Air Inlet Size: NPT 1/2 inch (12.7 mm); Average Air Consumption: 38 CFM; Max Flow Rate: 9 m3/h (35 GPM); Suction: 0-5 m (0-16.4 ft); Max Suspended Solids: 3 mm (1/8 inch)
• 【Main Parameters 2】- Max Head: 84 m (275.59 ft); Max PSI: 120 PSI; Max Temp.: 150 ℉; Self-Priming Dry: 3 m (10 ft); Self-Priming; Wet: 4.6 m (15 ft); Manifold Connection: Single; Valve Type: Ball; Ball Material: Acetal; Check Seat Material: Polypropylene; Diaphragm Material: Nitrile; Package Size: 35 x 26 x 23 cm (13.78 x 10.24 x 9.06 inch); Gross Weight: 9.86 kg (21.74 lbs)
• 【Great Performance】- VONZOER diaphragm pump is featured with solid construction, strong and durable. 35 GPM air-operated double diaphragm pump with 1 inch inlet and outlet. Max PSI is up to 120 PSI, this powerful double diaphragm pump QBY4-25L is capable of pumping up to 35 gallons/min at temperatures up to 150 degrees F.
• 【Avant-garde Design】- Exquisite appearance, compact structure, easy to operate and carry, made of high quality material, strong and durable, ensures long service time.

Part Number: double diaphragm transfer pump

Details: Working Principle
In the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one.Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions. Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison.

Features
Brand new with top quality
Air-operated double diaphragm pump
With 1 inch inlet and outlet
1/2 Inch air inlet
1/8 Inch max diameter suspended solids
Perfect for use with water
Ideal for use with low viscosity petroleum fluids
Solid construction

Specifications
Product: Diaphragm pump
Type: Double diaphragm
Operation Type: Air-operated
Model: QBY4-25L
Body Material: Aluminum
Inlet Port: 1 inch (25 mm)
Outlet Port: 1 inch (25 mm)
Air Inlet Size: NPT 1/2 inch (12.7 mm)
Average Air Consumption: 38 CFM
Max Flow Rate: 9 m3/h (35 GPM)
Suction: 0-5 m (0-16.4 ft)
Max Suspended Solids: 3 mm (1/8 inch)
Max Head: 84 m (275.59 ft)
Max PSI: 120 PSI
Max Temp.: 150 ℉
Self-Priming Dry: 3 m (10 ft)
Self-Priming Wet: 4.6 m (15 ft)
Manifold Connection: Single
Valve Type: Ball
Ball Material: Acetal
Check Seat Material: Polypropylene
Diaphragm Material: Nitrile

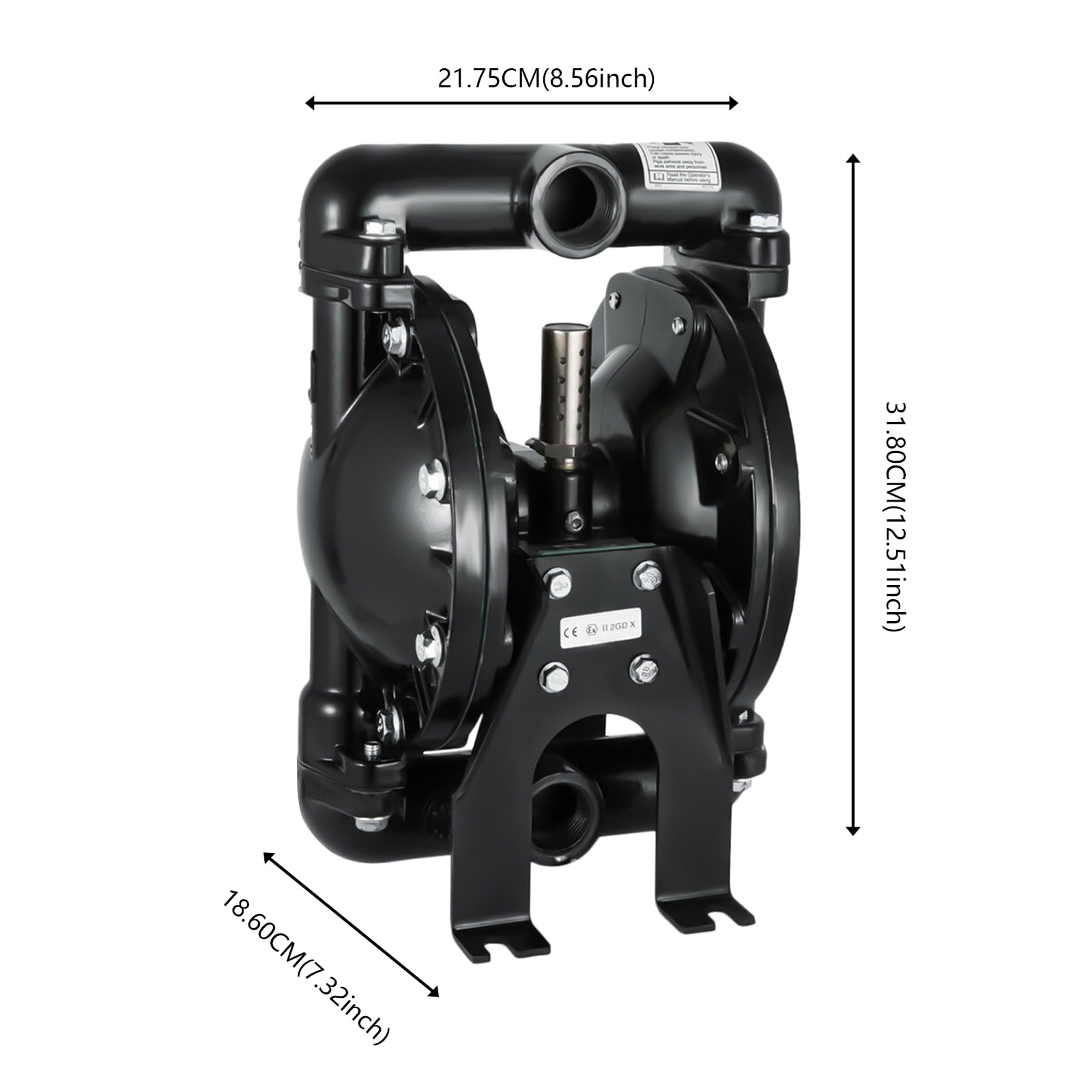

Package Size: 35 x 26 x 23 cm (13.78 x 10.24 x 9.06 inch)
Gross Weight: 9.86 kg (21.74 lbs)

Package Includes
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual

EAN: 0723508214341
