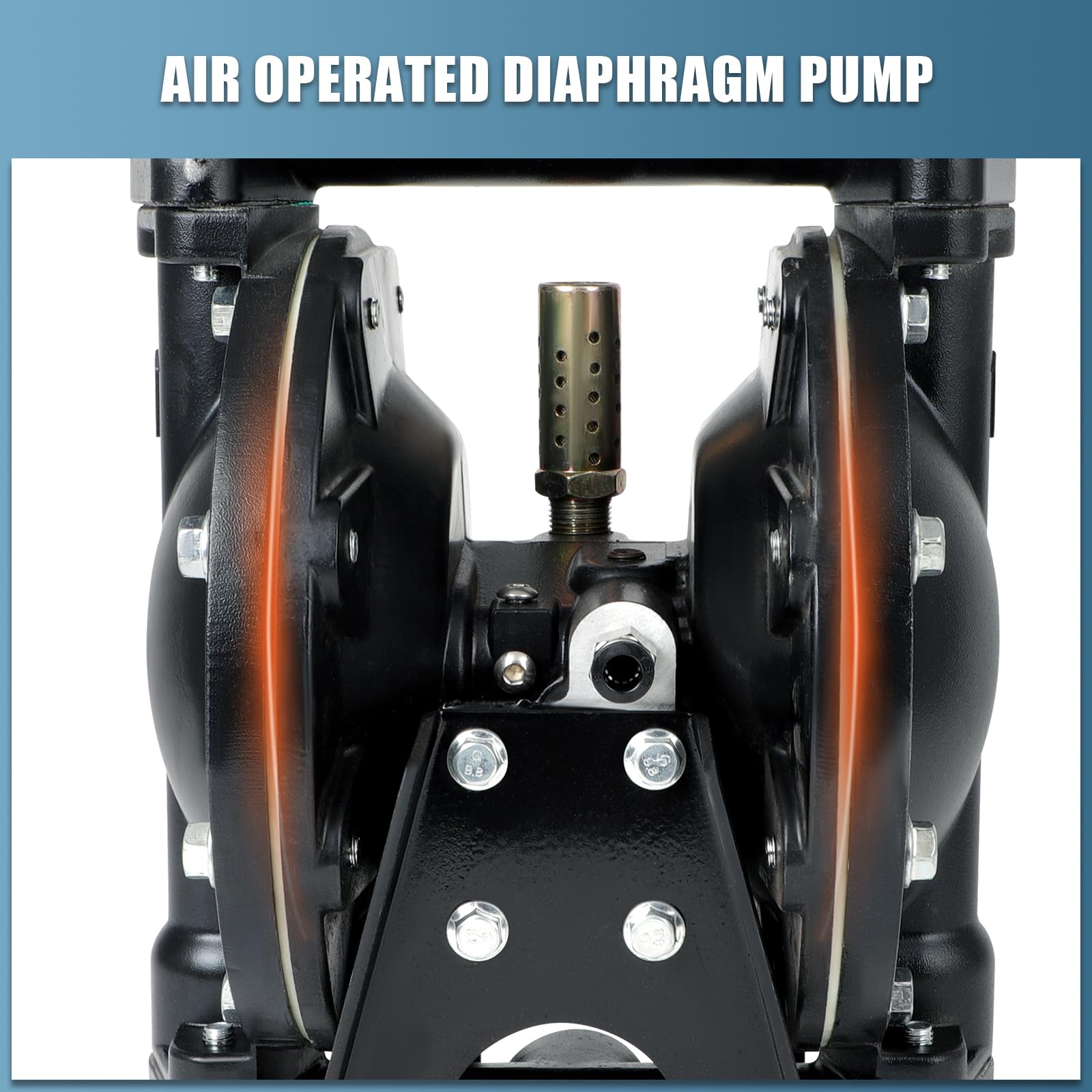

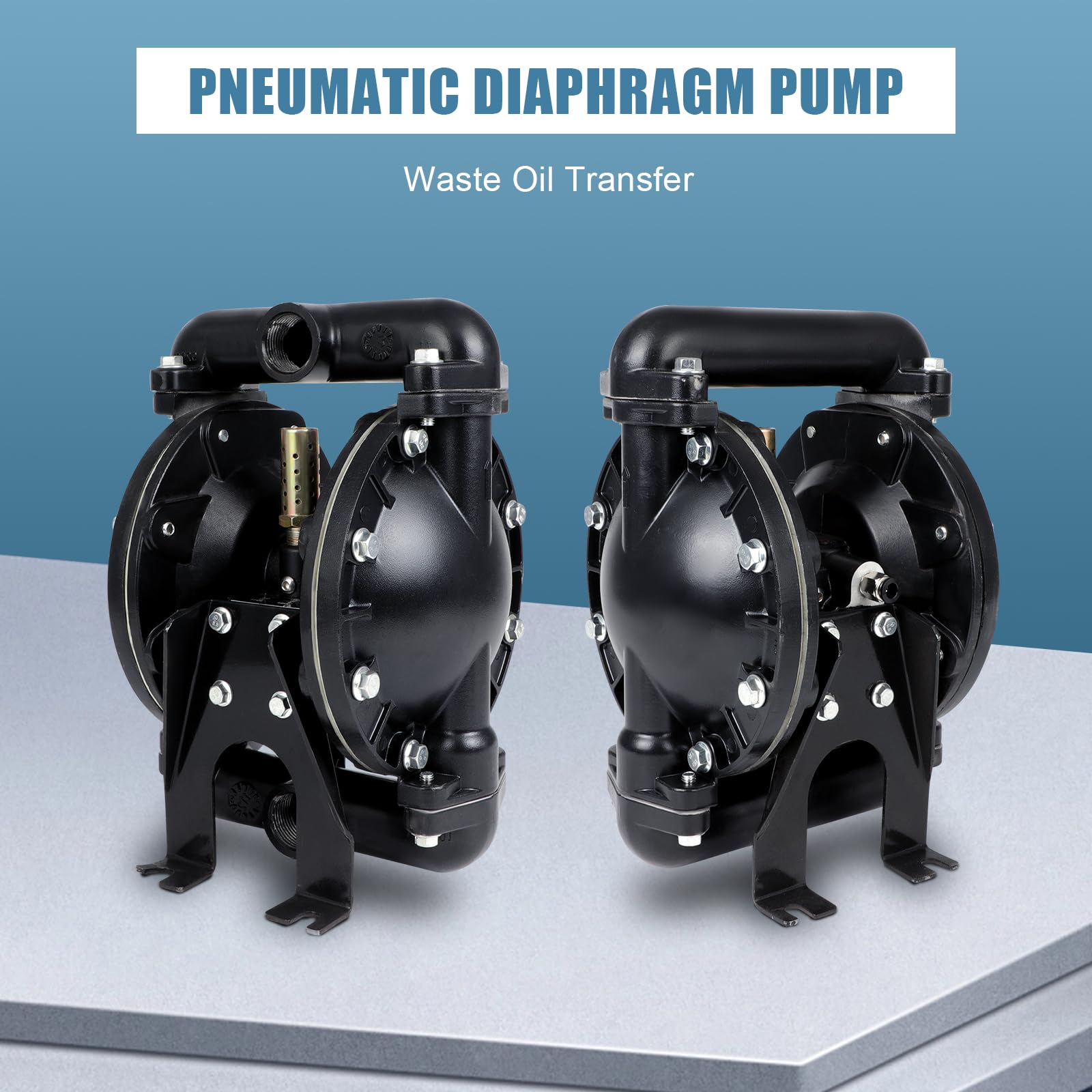

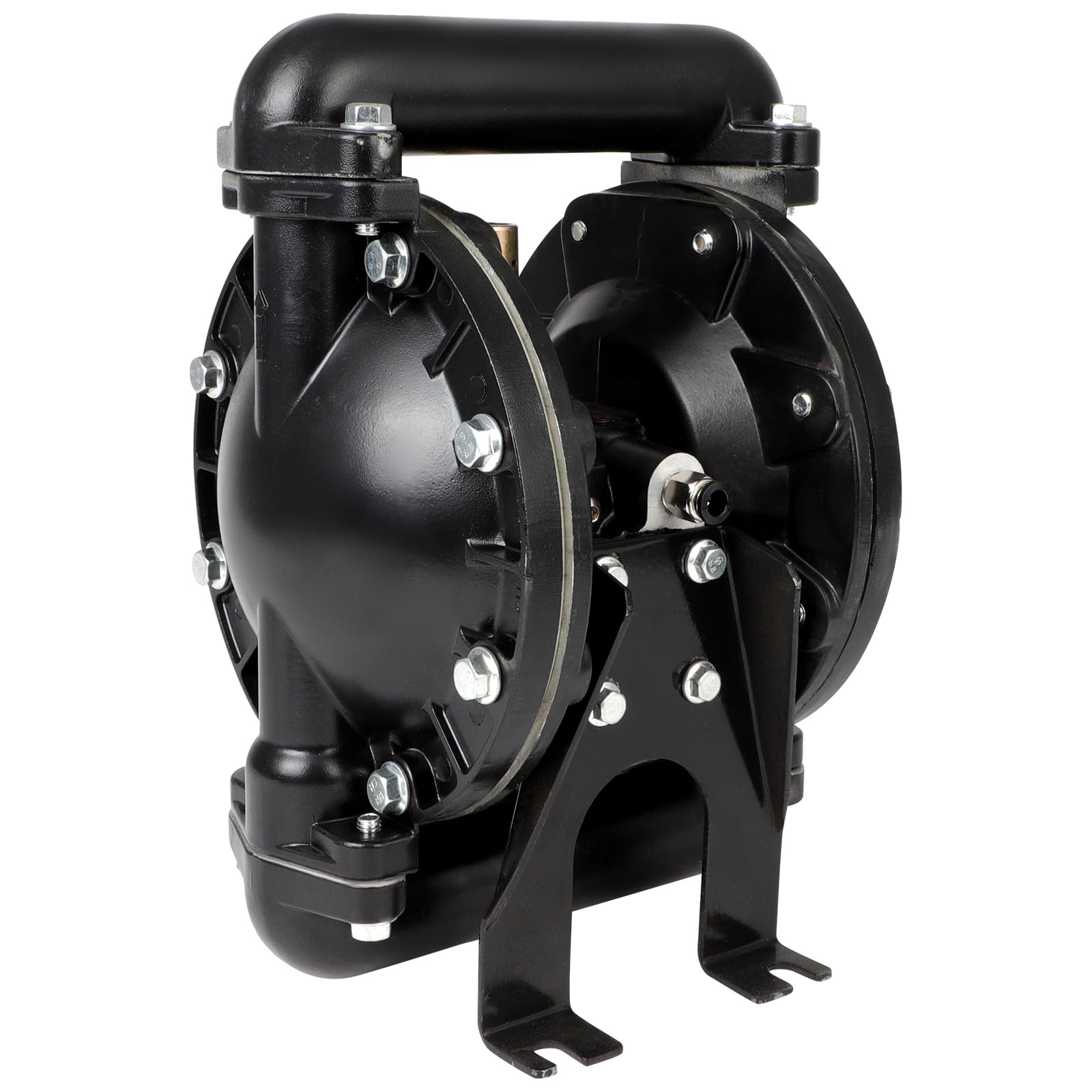

Air-Operated Double Diaphragm Pump For Environmental Protection Drainage Construction Petroleum Chemical Pharmaceutical Electric Power (Black, 1 Inlet Outlet)

Brand: FAHKNS

Color: Black

Features:

• NOTE: Before using the diaphragm pump, please check whether all the screws are tightened or not, you need to tighten the screws before using the diaphragm pump, to prevent water leakage caused by loose screws.

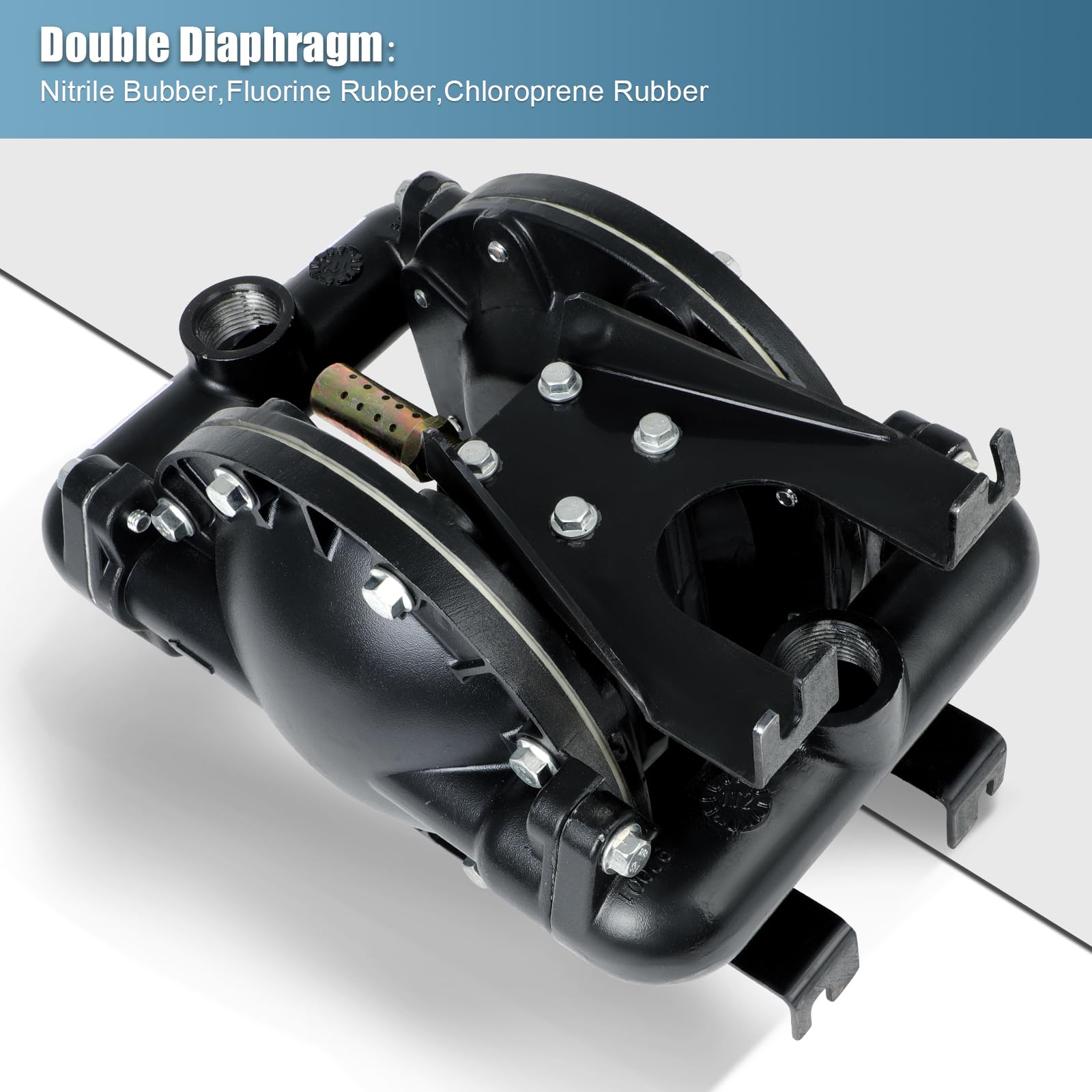

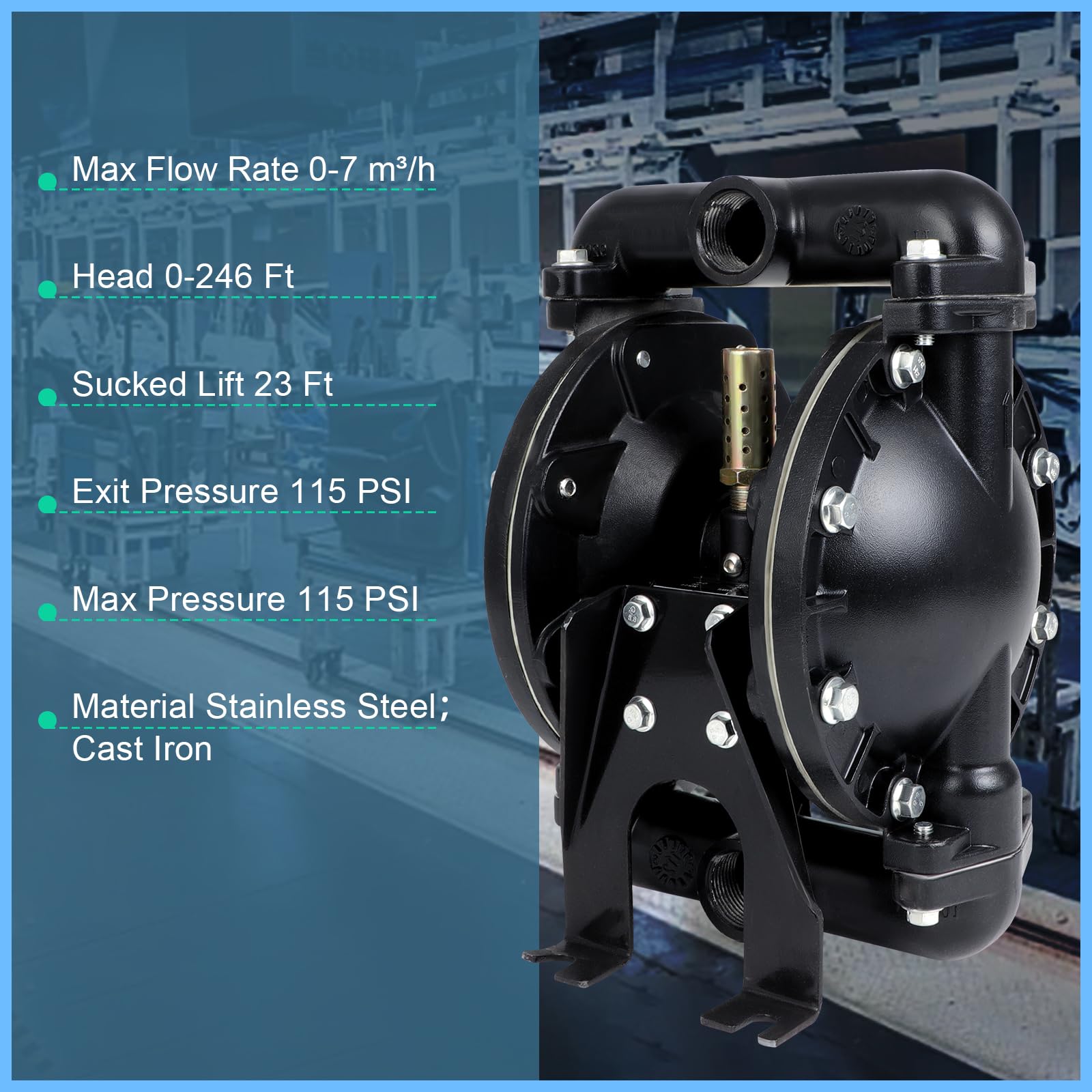

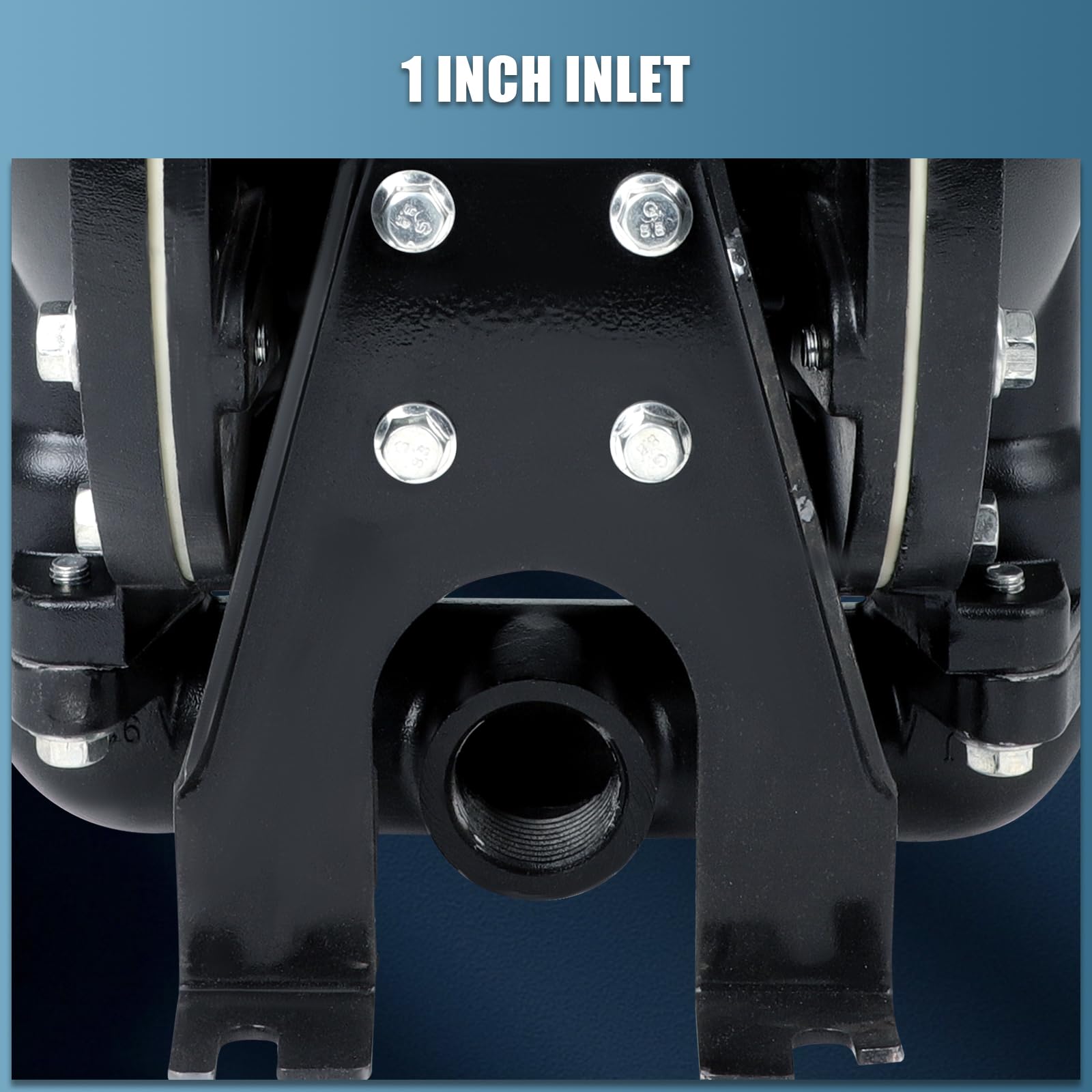

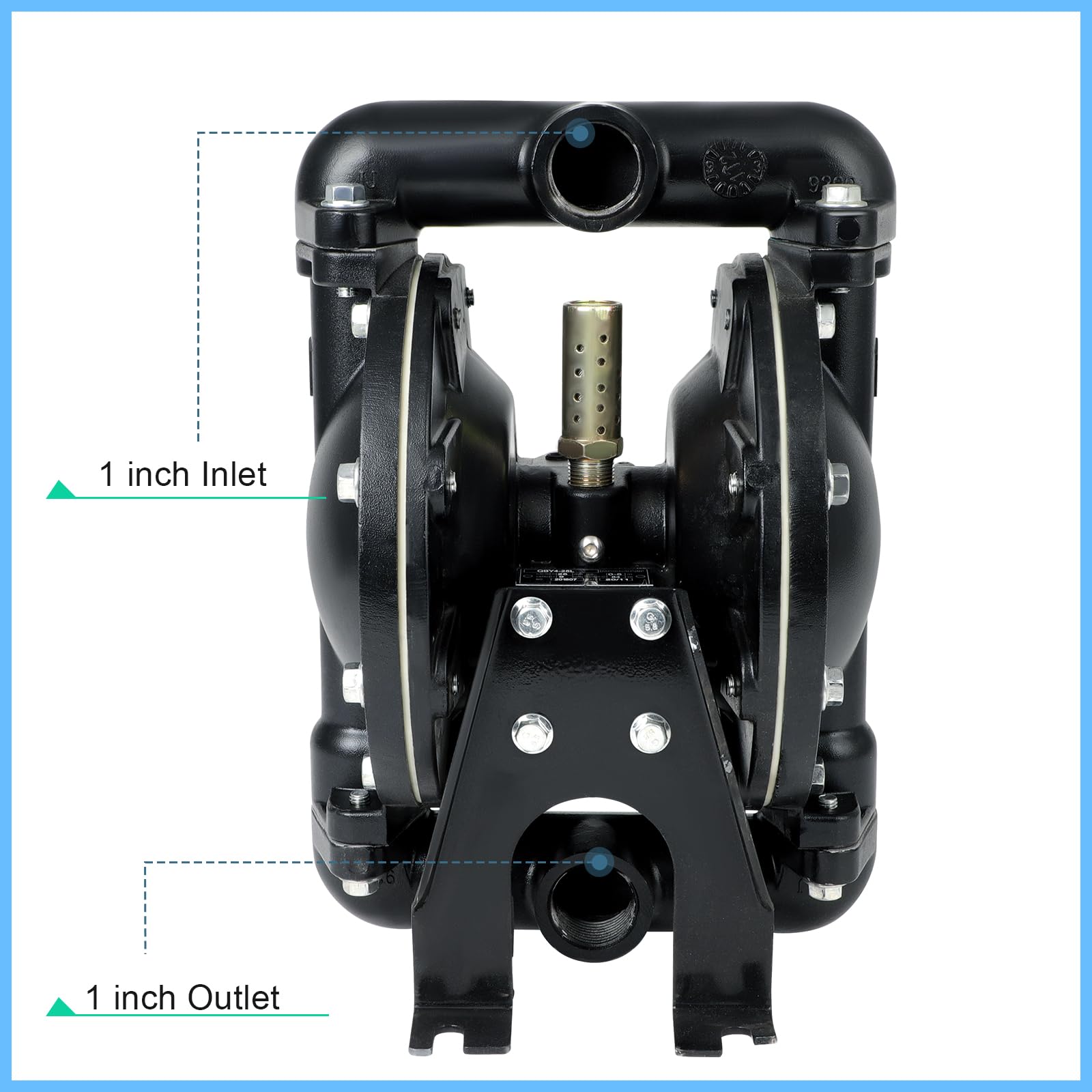

• INDUSTRIAL QBY4-25L: Material:aluminum; Dissepiment Material:Nitrile Bubber,Fluorine Rubber,Chloroprene Rubber; Type: double diaphragm; Operation Type: Air-operated; Inlet/Outlet Port Size: 1 inch (25mm); Air Inlet Size: NPT 1/2 inch (12.7mm); Flow Rate: 35 GPM; Max Head Lift: 275 ft(84 M); Suction: 23 ft(7M).Can not use for corrosive liquid.
• MAXIMUM HEAD: Air-Operated Double Diaphragm Pump have top quality, a double-acting seal that delivers better performance. 1/2 inch air inlet with NPT fitting uses standard shop air for easy operation.275.59FT/84M, Max Temp : 150 ℉, Max Pressure: 120 PSI.
• ANTI-CORROSION: Diaphragm pump has reliability and ability to handle viscous or abrasive fluids,as well as self-priming capabilities and ability to run dry without damage.Air operated diaphragm pump body made of cast iron,stainless steel and aluminum alloy
• RUGGED CONSTRUCTION: Diaphragm Pump resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling WIDELY USE: The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, paint, printing, paper making, water treatment, automotive etc.

model number: 167155167156

Part Number: 167156-5

EAN: 0198519494691

Package Dimensions: 15.0 x 11.8 x 11.4 inches
