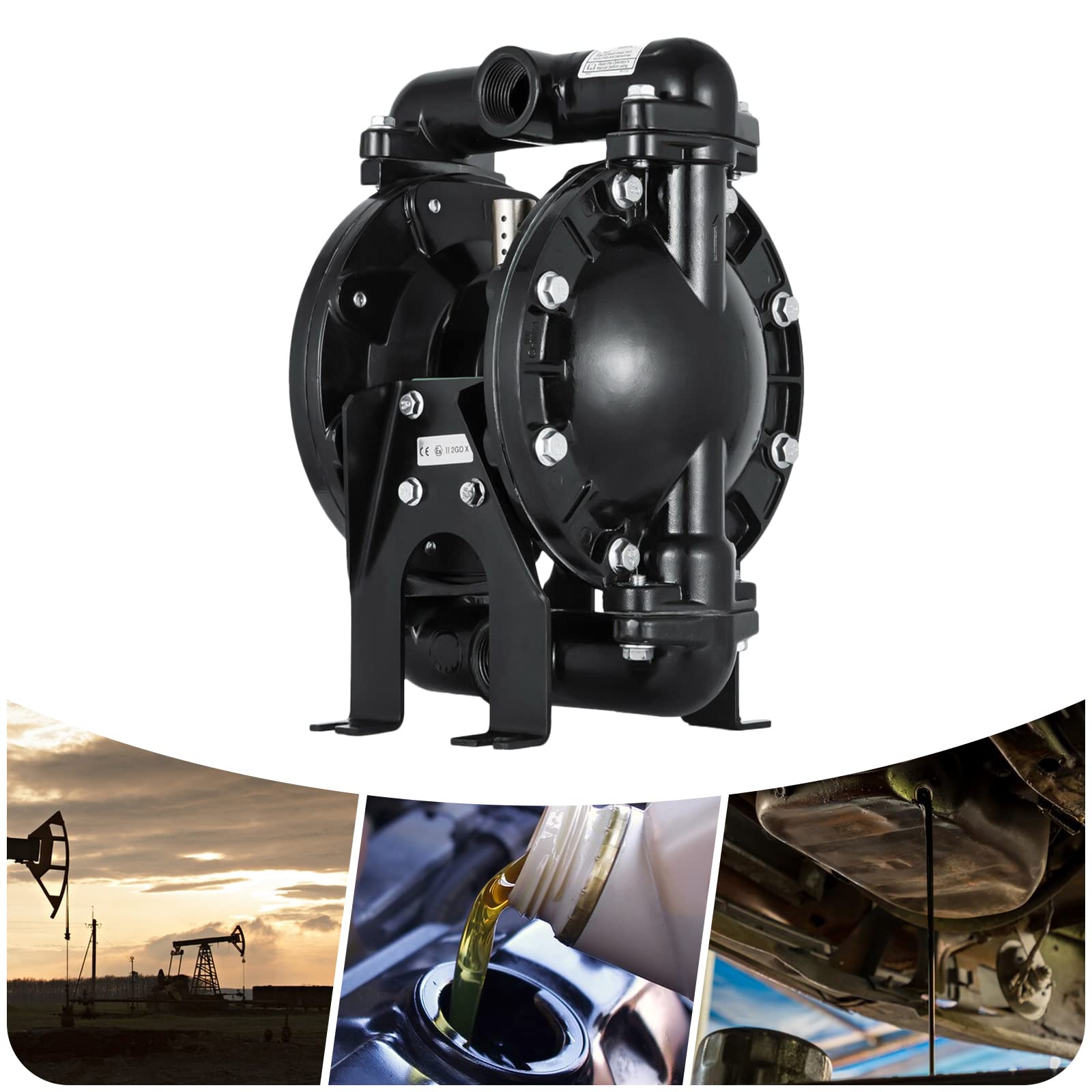

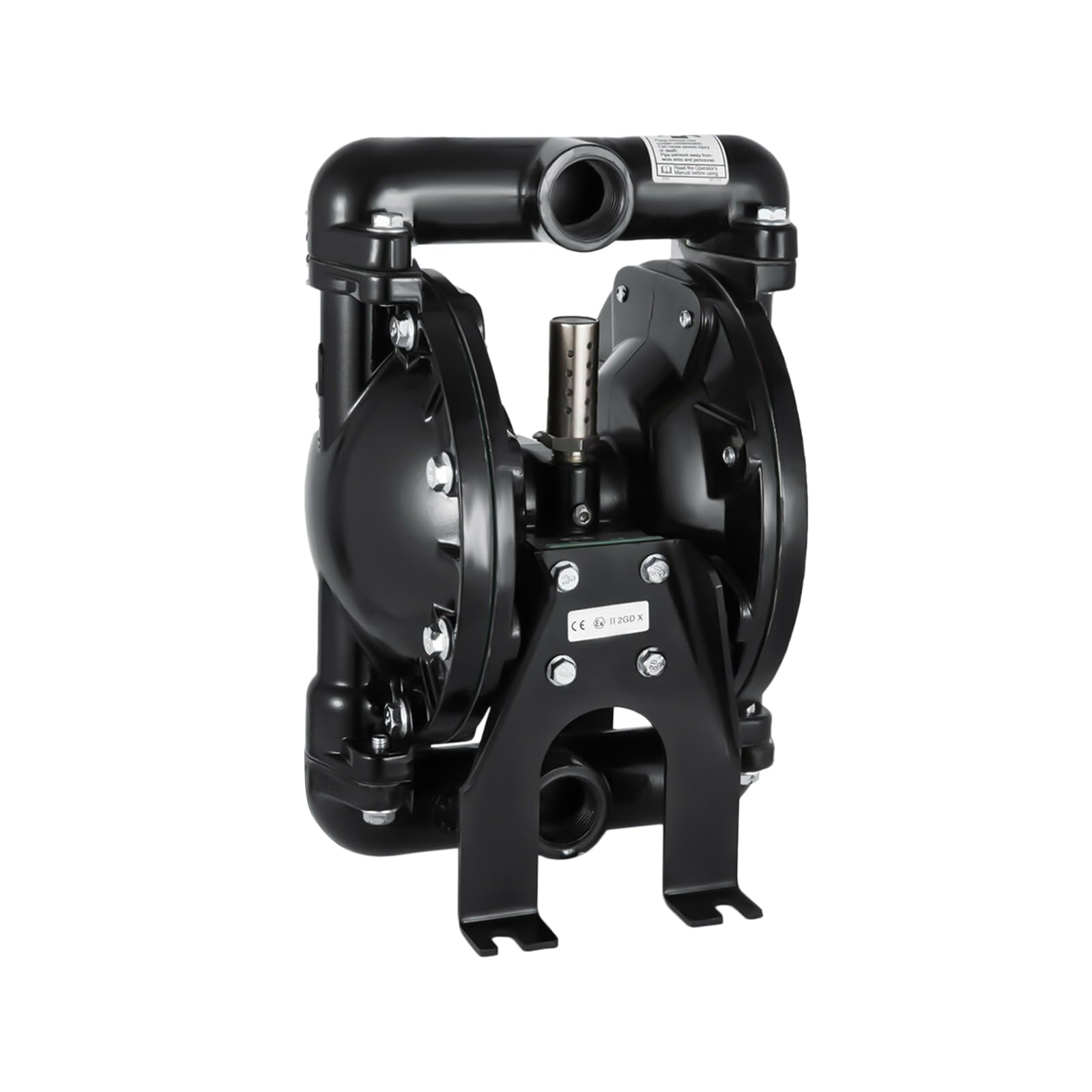

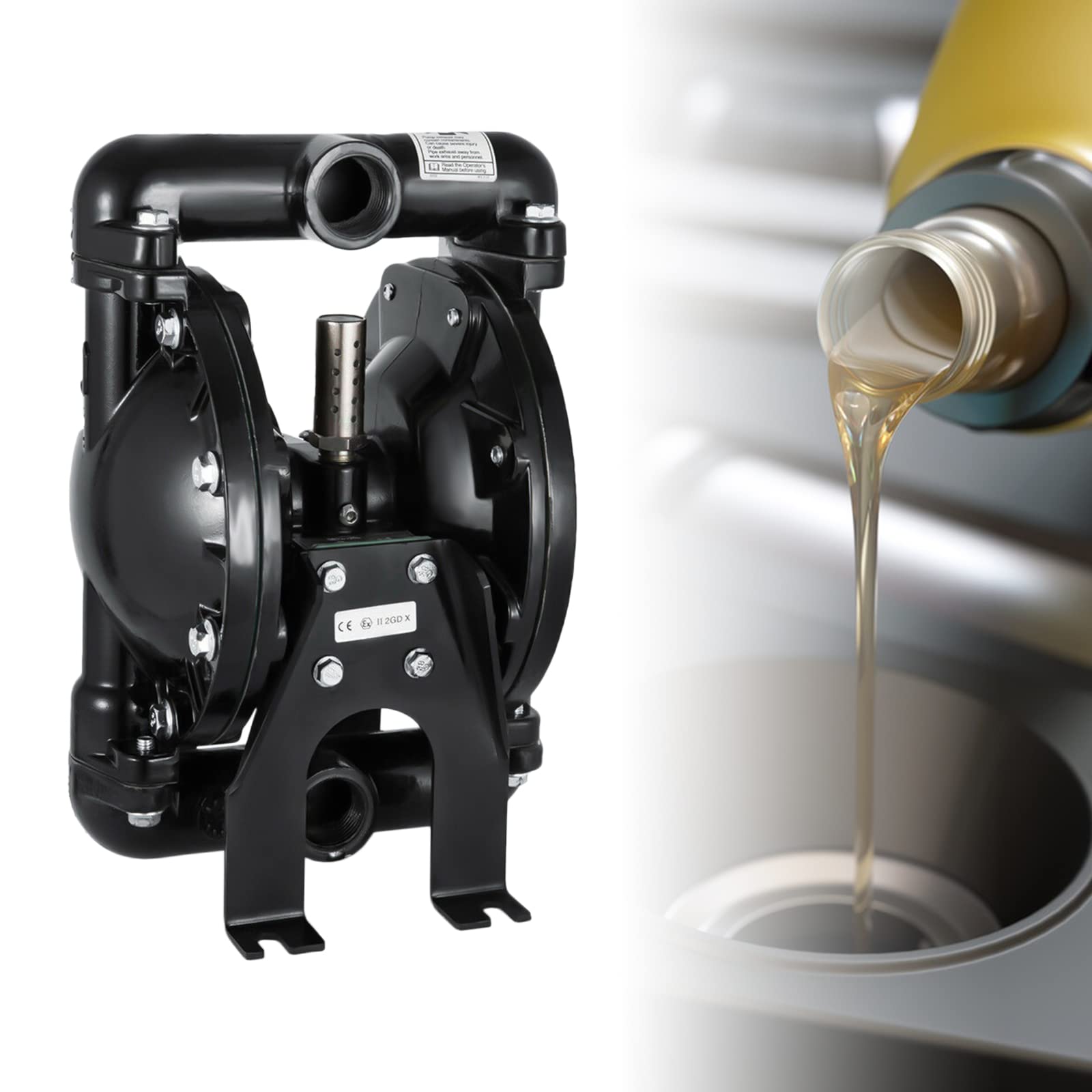

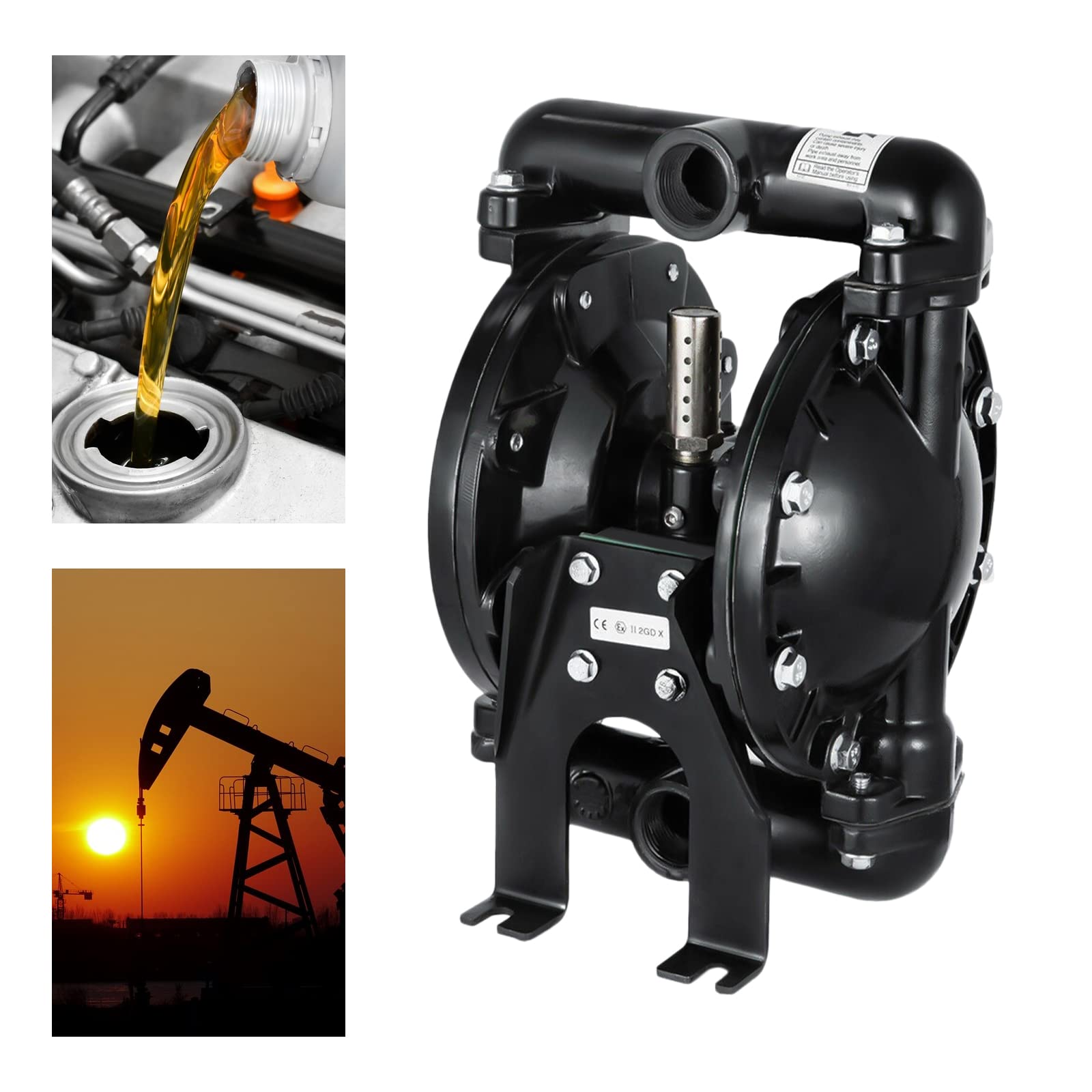

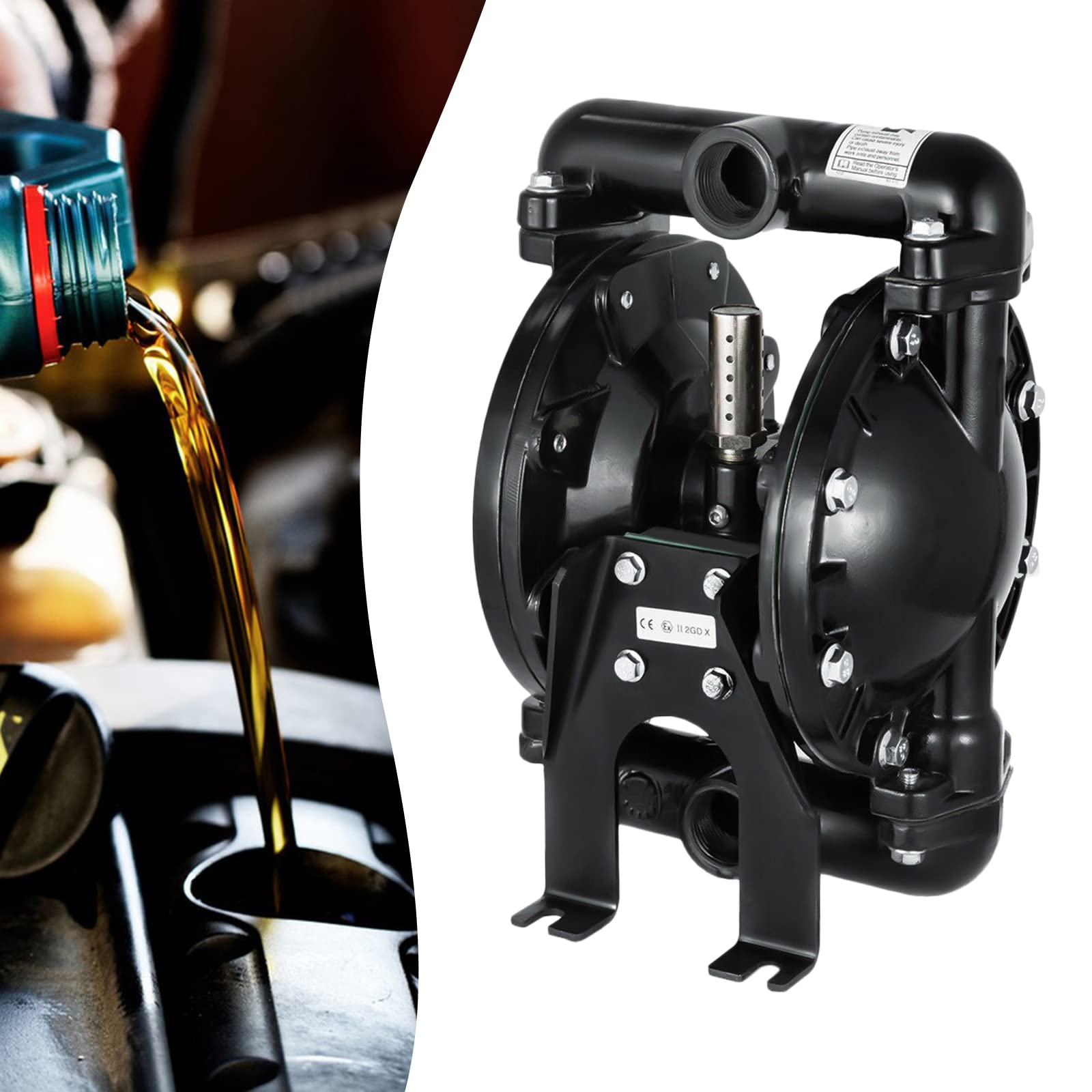

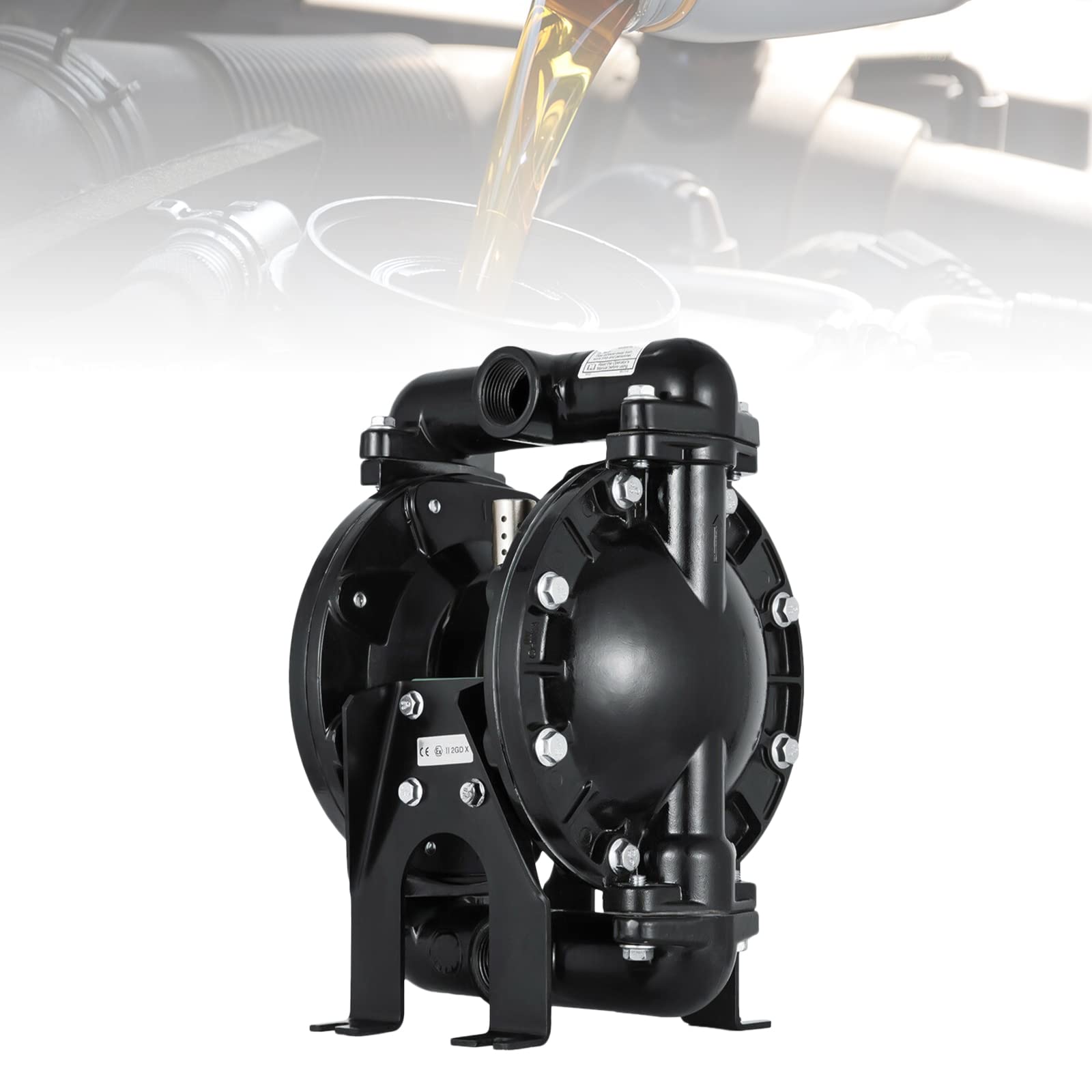

Air-Operated Dual Diaphragm Pump 1-inch Inlet & Outlet Waste Oil Diesel Air Operated Double Diaphragm Pump 35GPM Heavy Duty Pneumatic Diaphragm Transfer Pump 120PSI 150 ℉ for Industrial

Brand: LIKARVA

Color: Black

Features:

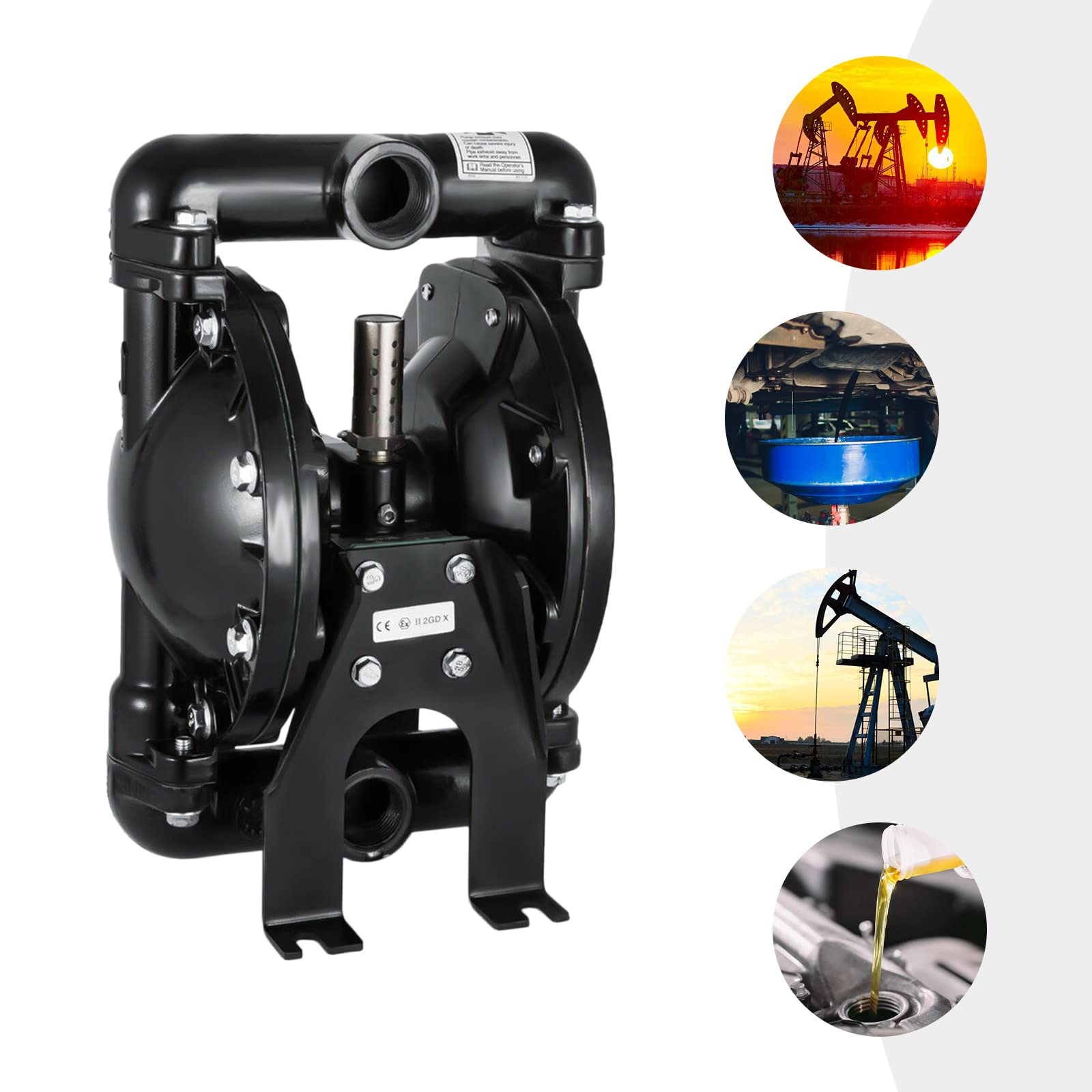

• ✔ The Air-Operated Dual Diaphragm Pump is easy to operate, widely used in petroleum, metallurgy, mining, coating, printing, paper making, water treatment, automobile and other industries.
• ✔ Our Air-Operated Double Diaphragm Pump is perfect for water.Suitable for low viscosity petr-oleum liquids, including die-sel, kero-sene, motor o-il and some waste o-ils. This powerful and efficient pneumatic diaphragm pump is perfect for all your needs in every industry!
• ✔ Heavy Duty Pneumatic Diaphragm Transfer Pump with externally repairable air distribution system and full bolt construction.Modular air valves Stall-free, the low-pulsation air valve provides smooth and fast changeover to increase efficiency and minimize downtime.
• ✔ The bolt construction enables leak-free fluid handling and the motor design provides optimal air efficiency. Easy access to spherical check valve and fluid cover for easy maintenance and repair.
• ✔ The diaphragm is installed in each of the two symmetrical working chambers of the pump, and the central link will be integrated as a whole.Compressed air enters the valve from the inlet of the pump, and introduces compressed air into one chamber through the valve body to promote the movement of the diaphragm chamber, while discharging the gas from the other chamber.

model number: QBY4-25L

Details: Description
Can not use for corro-sive liquid.
Perfect for use with water. Ideal for use with low viscosity petr-oleum fluids including die-sel, kero-sene, motor o-il and some waste o-il. This powerful and efficient air operated diaphragm pump is perfect for all your needs in every industry!

Specifications
Product: Diaphragm pump
Type: Double diaphragm
Operation Type: Air-operated
Model: QBY4-25L
Body Material: Aluminum
Inlet Port: 1 inch (25 mm)
Outlet Port: 1 inch (25 mm)
Air Inlet Size: NPT 1/2 inch (12.7 mm)
Average Air Consumption: 38 CFM
Max Flow Rate: 9 m3/h (35 GPM)
Suction: 0-5 m (0-16.4 ft)
Max Suspended Solids: 3 mm (1/8 inch)
Max Head: 84 m (275.59 ft)
Max PSI: 120 psi
Self-Priming Dry: 3 m (10 ft)
Self-Priming Wet: 4.6 m (15 ft)
Manifold Connection: Single
Valve Type: Ball
Ball Material: Acetal
Diaphragm Material: Nitrile

Superiority
1. Good abrasion resistance and heat resistance.
2. Environmentally Sound: Bolted construction for leak-free fluid handling.
3. Efficiency: Motor design delivers optimum air efficiency.
4. Reliability: "Unbalanced" air valve ensures no-stall operation.
5. Serviceability: Easy access to ball checks and fluid caps for maintenance and repairs.

Package includes:
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual

EAN: 0743557768329
