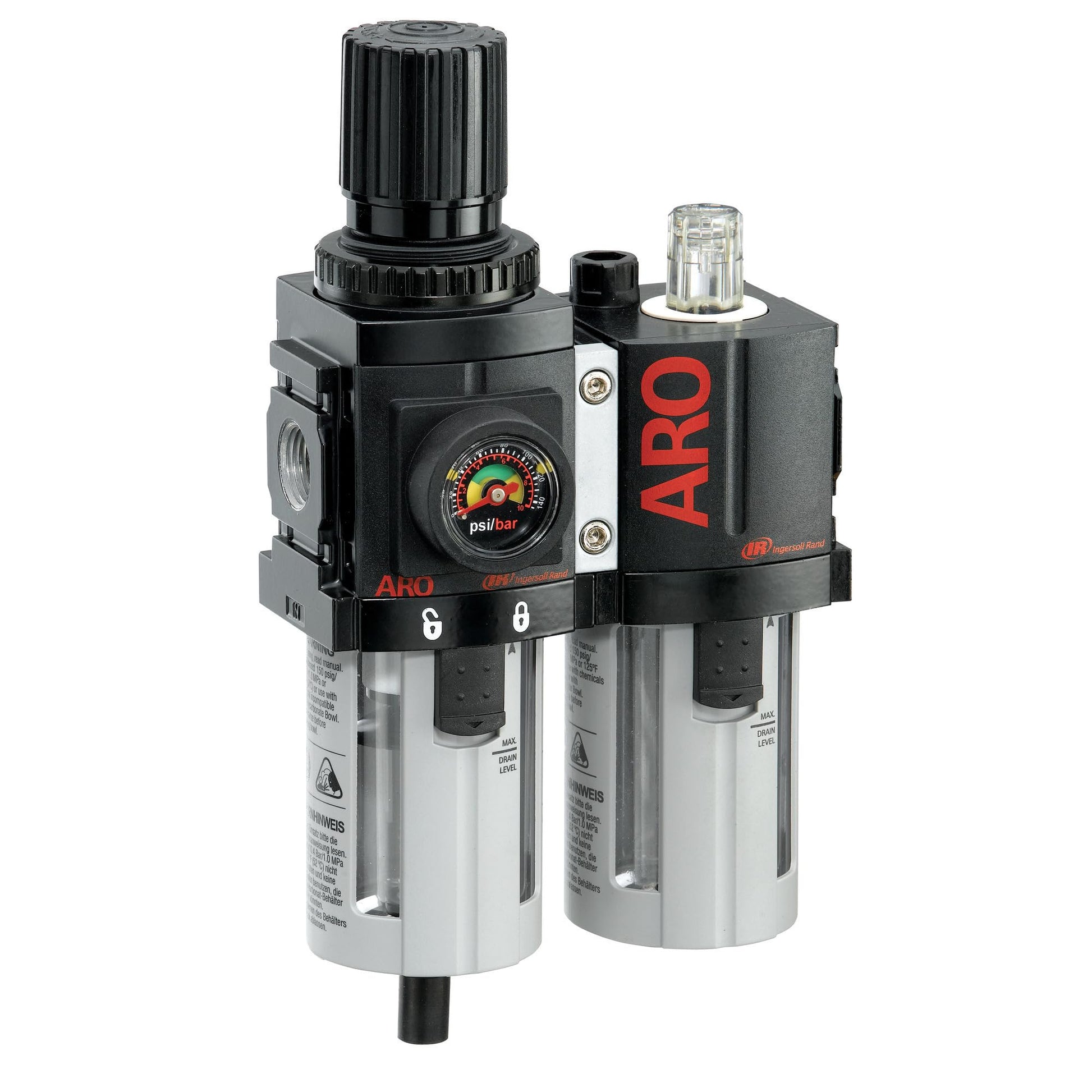

ARO C38231-600-VS Air Filter-Regulator-Lubricator Combination, 3/8" NPT

Brand: Ingersoll Rand – ARO

Color: Black/Gray

Features:

• 3/8-Inch NPT
• P39234-600 Piggyback Filter/Regulator and L36231-100 Lubricator
• Manual drain and polycarbonate bowl with guard
• Relieving with gauge
• 71 CFM

model number: C38231-600-VS

Part Number: C38231-600-VS

Details: Product Description

ARO-Flo 1500 Series Filter Regulator Lubricator -3/8" NPT Port
-71 SCFM
-5 Micron Filtration
-150 psig Max inlet Pressure
-0-140 psig Regulator Pressure Range
-Flush Mount Pressure Gauge
-23-125°F Temperature Range
-Polycarbonate Bowl w/ guard
-Manual Drain

From the Manufacturer

ARO-Flo Filter, regulator, Lubricators, and piggybacks can be combined together to form combinations. They are typically strung together in the F+R+L arrangement, although other configurations are also used depending on application needs. ARO-Flo combination FRLs are easily assembled using modular spacer kits.

EAN: 0663023080116

Package Dimensions: 10.7 x 6.3 x 4.1 inches
