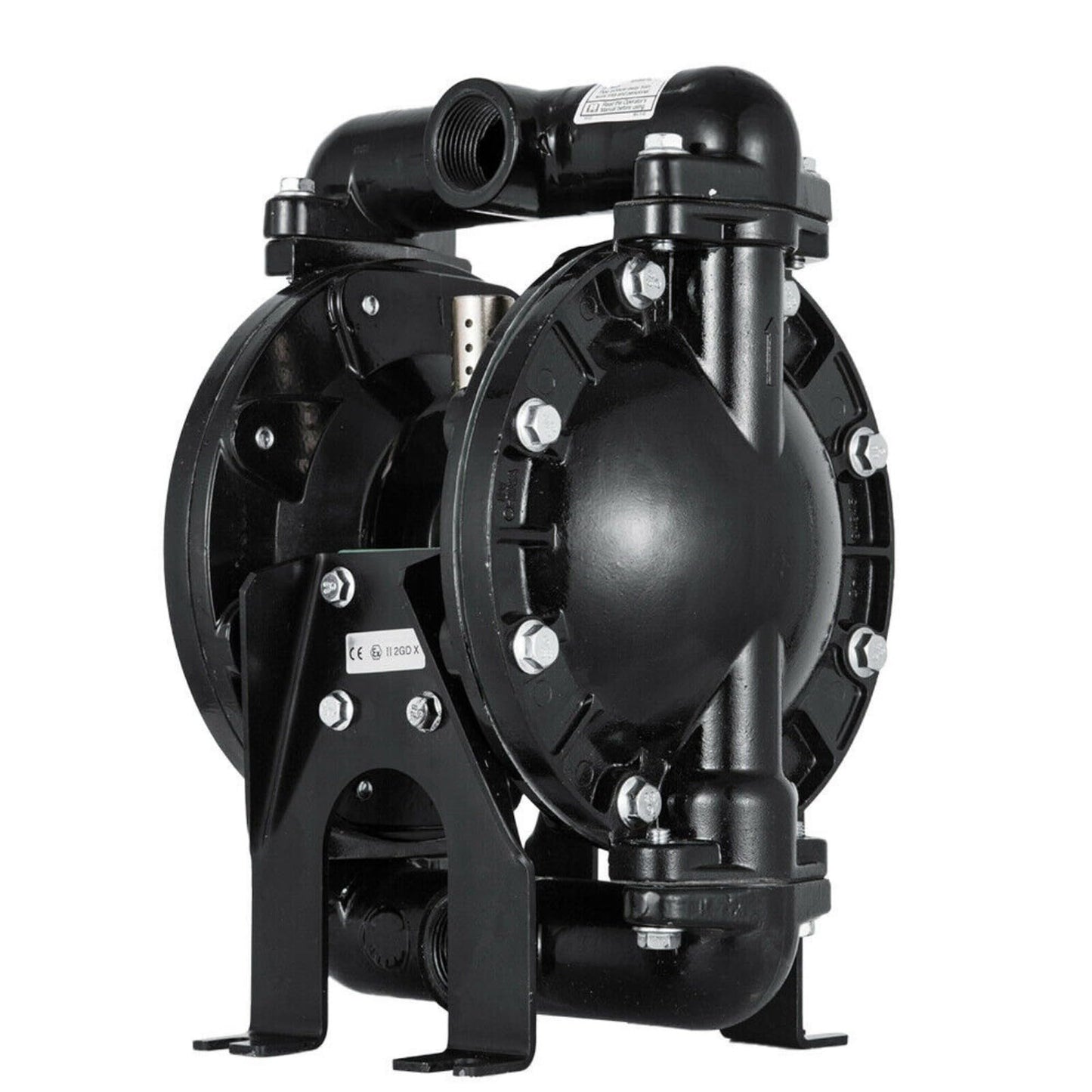

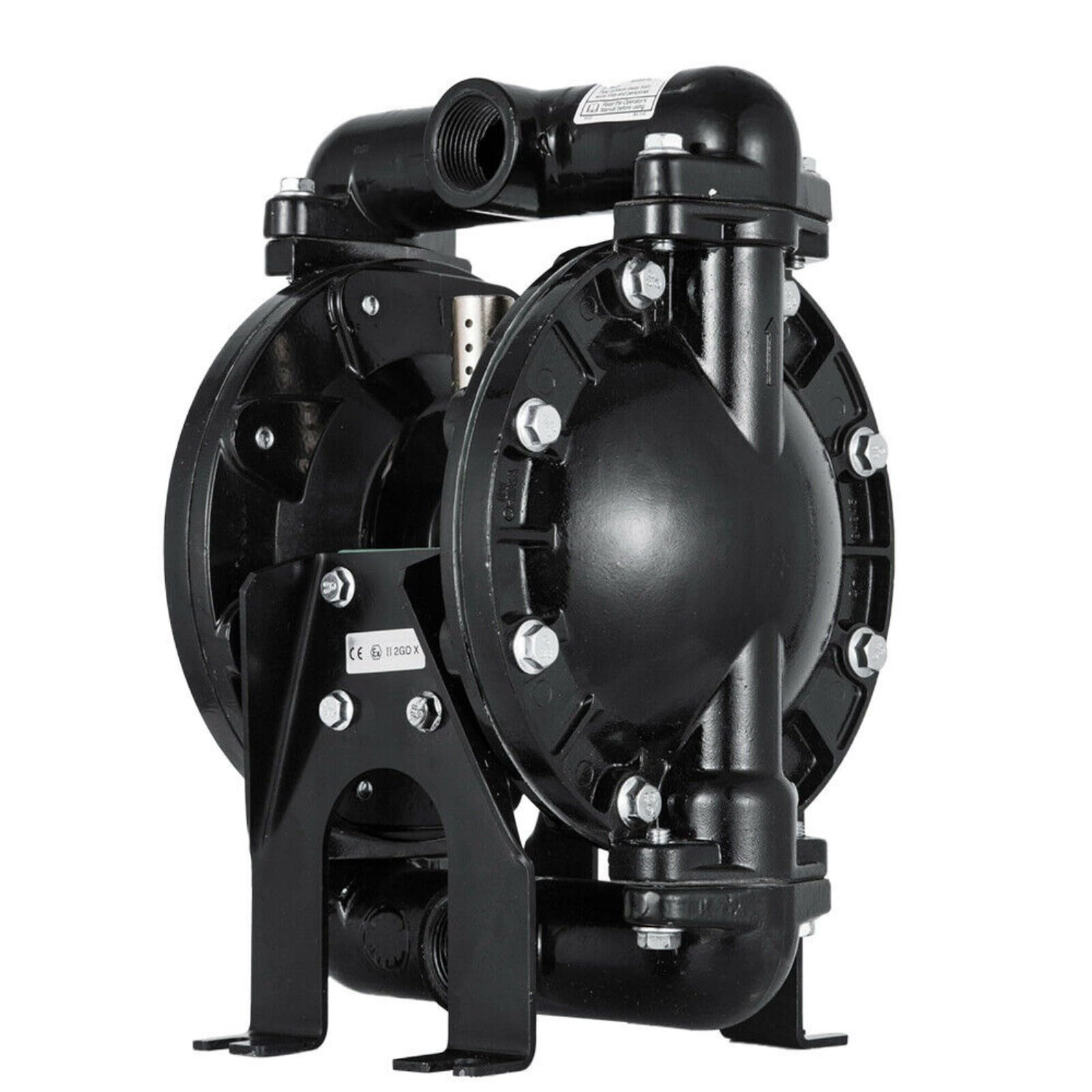

awolsrgiop Air-Operated Double Diaphragm Pump 1" Inlet Outlet Petroleum Fluids, 35GPM 120PSI Diaphragm Pump Up to 150 Degrees F. for Petroleum, Metallurgy, Mining, Coating Material, Printing

Brand: awolsrgiop

Features:

• 【Main Body Parameters】Body Material: Aluminum, Air Inlet: 1 inch (25 mm), Air Outlet: 1 inch (25 mm), Air Inlet Size: Npt 1/2 Inch (12.7 Mm),Average Air Consumption: 38 Cfm,Max Flow Rate: 9 M3/H (35 Gpm),Suction: 0-5m (0-16.4 ft).
• 【Superior Construction】Rugged construction - corrosion resistant, reliable performance and long life. Bolt-on construction designed for leak-free fluid handling.
• 【Quality Performance】Max. head: 275.59FT/84M,Max. temperature: 150℉,Max. pressure: 120PSI.Top quality gander ring with double action seal to provide better performance.1/2 inch air inlet with NPT fitting,use standard shop air for easy operation.
• 【Unique Design】Features an externally serviceable air distribution system and all-bolt construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and fast changeover, improving efficiency and minimizing downtime.

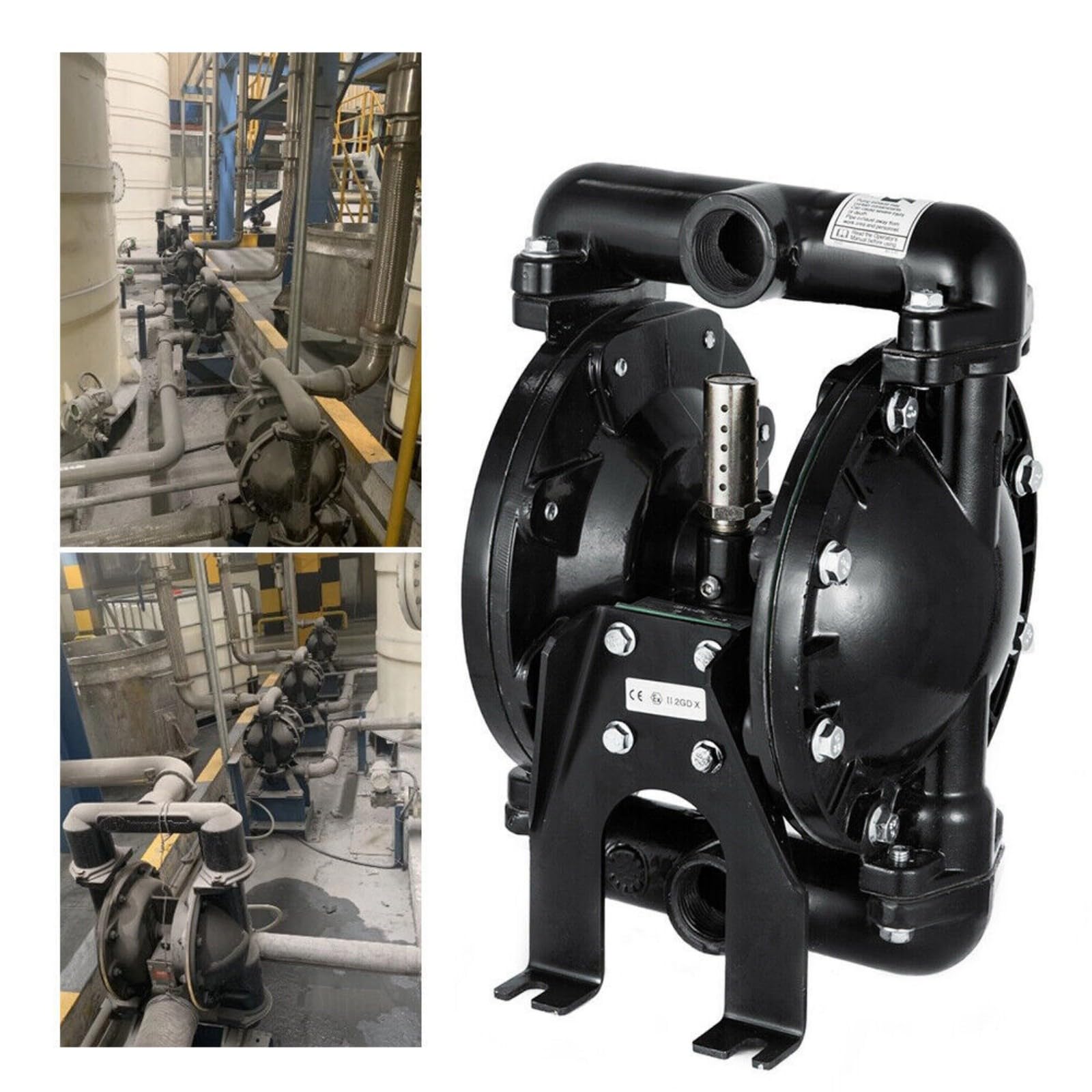

• 【Versatile Use】Perfect for water use. Suitable for low viscosity petroleum fluids, including diesel, kerosene, motor oil and some waste oils. Diaphragm pump is easy to operate and widely used in various industries, such as petroleum, metallurgy, mining, paint, printing, paper, water treatment, automotive, etc.

model number: OT-MLLCR-3067-YP

Details: Specifications:
Product: Diaphragm Pump
Type: Double Diaphragm
Operation Type: Air-operated

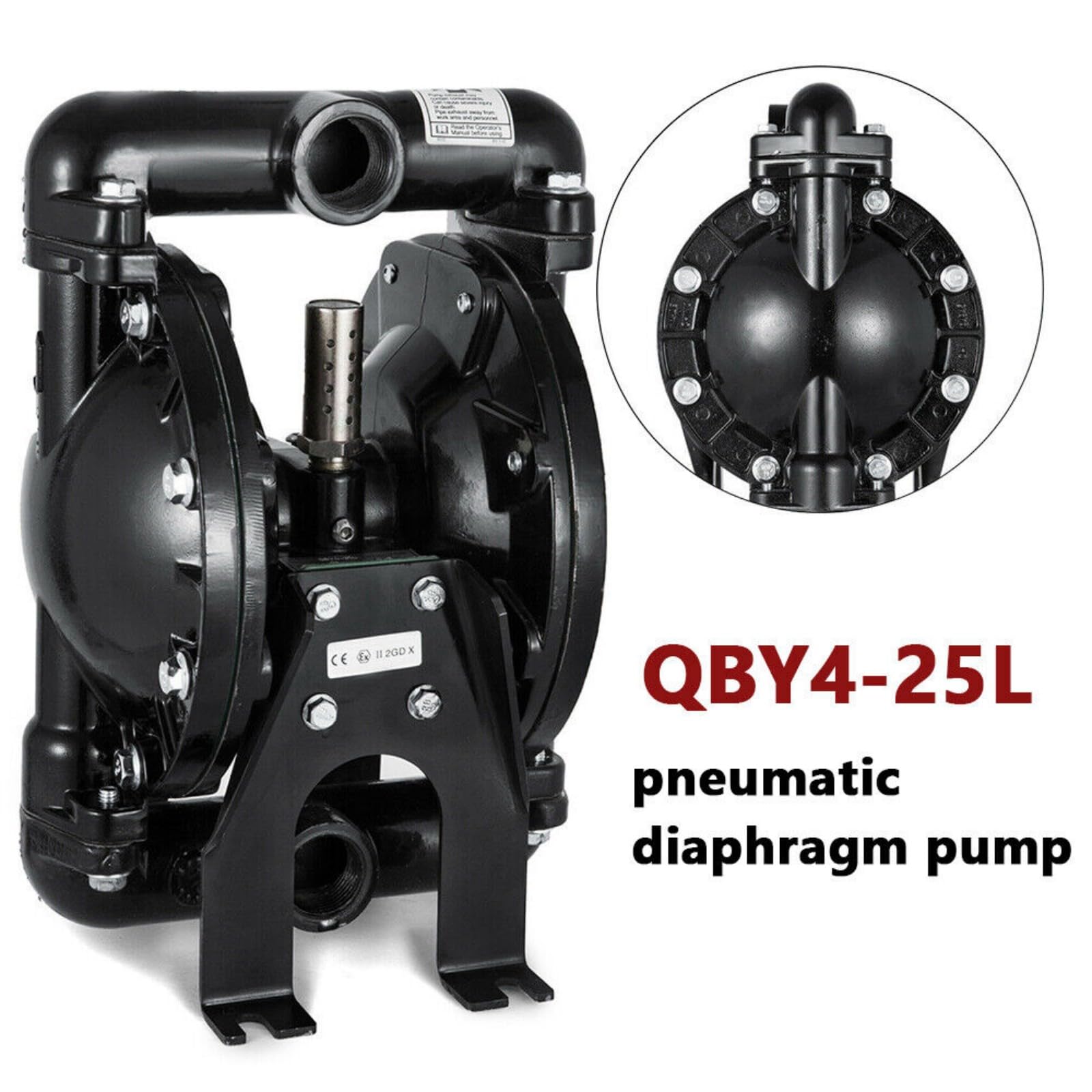

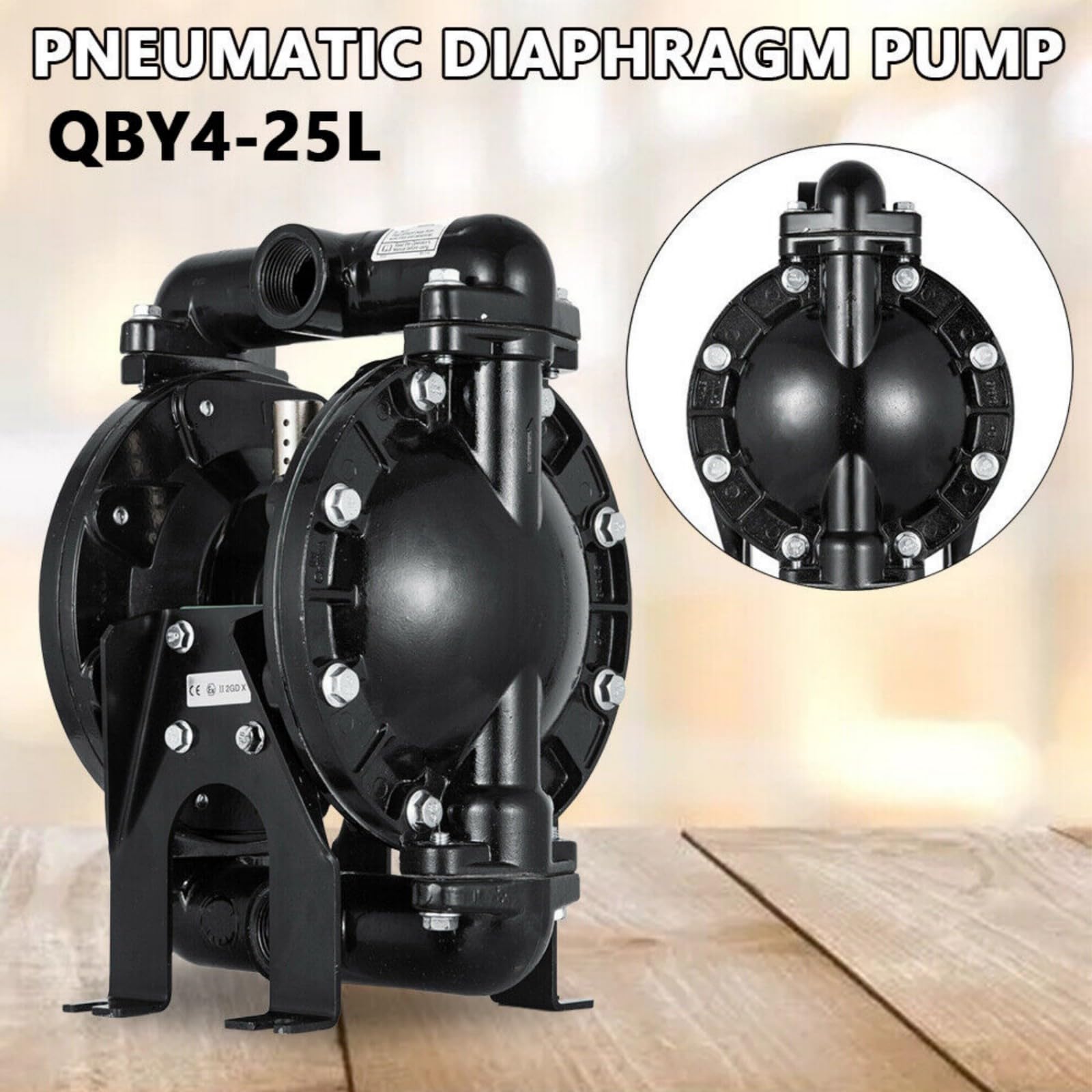

Model: Qby4-25l
Body Material: Aluminum
Inlet Port: 1 Inch (25 Mm)
Outlet Port: 1 Inch (25 Mm)
Air Inlet Size: Npt 1/2 Inch (12.7 Mm)
Average Air Consumption: 38 Cfm
Max Flow Rate: 9 M3/H (35 Gpm)
Suction: 0-5 M (0-16.4 Ft)
Max Suspended Solids: 3 Mm (1/8 Inch)
Max Head: 84 M (275.59 Ft)
Max Psi: 120 Psi
Max Temp.: 150 ℉
Self-priming Dry: 3 M (10 Ft)
Self-priming Wet: 4.6 M (15 Ft)
Manifold Connection: Single
Valve Type: Ball
Ball Material: Acetal
Check Seat Material: Polypropylene
Diaphragm Material: Nitrile

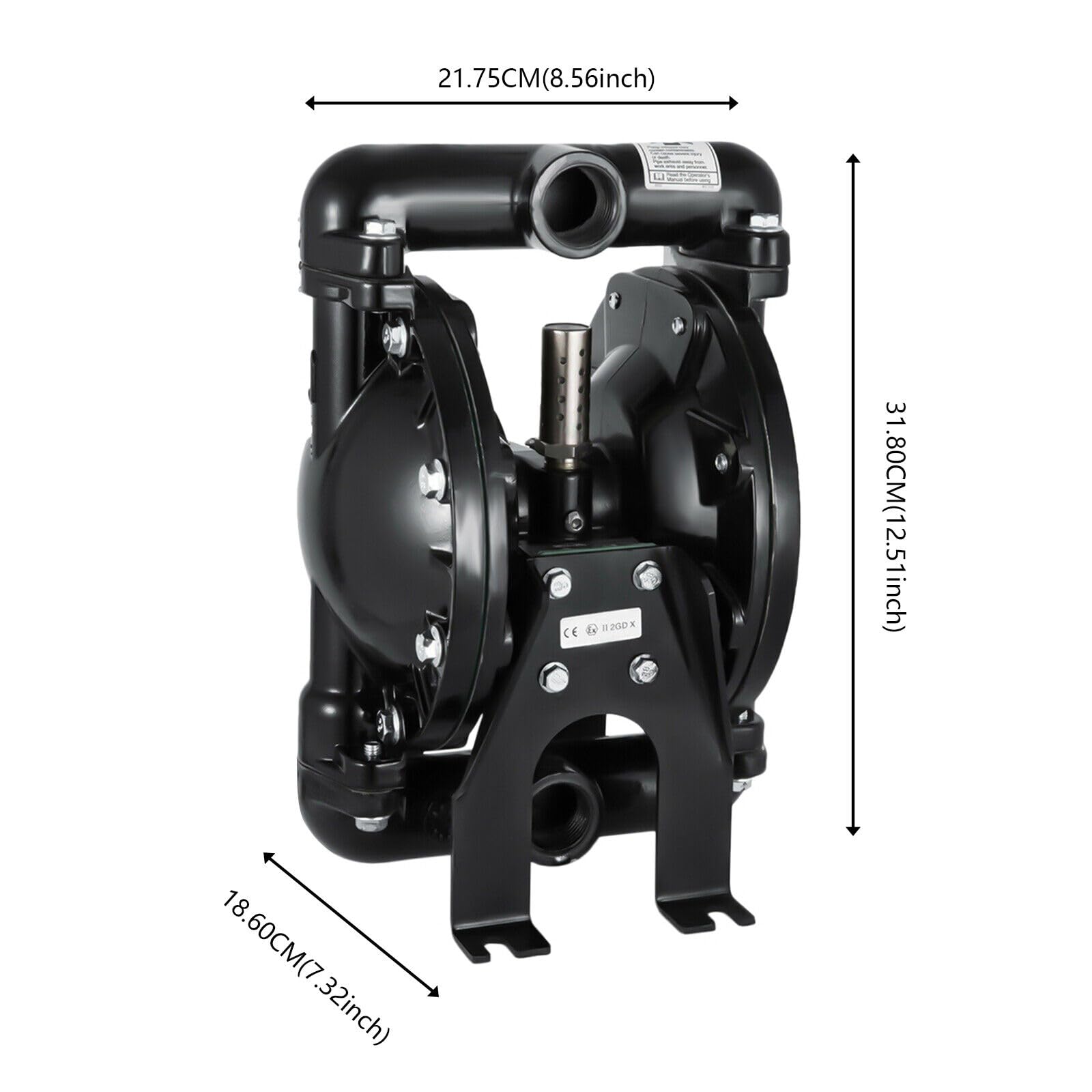

Package Size: 35 X 26 X 23 Cm (13.78 X 10.24 X 9.06 Inch)
Gross Weight: 9.86 Kg (21.74 Lbs)

Feature:
Brand New with Top Quality
Air-operated Double Diaphragm Pump
With 1 Inch Inlet and Outlet
1/2 Inch Air Inlet
1/8 Inch Max Diameter Suspended Solids
Perfect for Use with Water
Ideal for Use with Low Viscosity Petroleum Fluids
Solid Construction

Application:
Perfect for Use with Water. Ideal for Use with Low Viscosity Petroleum Fluids Including Diesel, Kerosene, Motor Oil and some Waste Oil.
Warning!
Can Not Use for Corrosive Liquid.

Working Principle:
In the Pump Two Symmetrical Working Chamber Each Equipped with a Diaphragm, the Center Link Will Be Integrated into One.compressed Air from the Pump Inlet into the Valve, Through the Valve Body to Introduce Compressed Air into One of the Chamber to Promote Movement of the Diaphragm Chamber, While the Other Chamber Gas Emissions. Once the End of the Stroke Is Reached, the Gas Distribution Mechanism Automatically Introduces Compressed Air into the Other Working Chamber to Push the Diaphragm in the Opposite Direction so That the Two Diaphragms Move Back and Forth in Unison.

Package Content:
1 X Air-operated Double Diaphragm Pump
1 X Product Manual
