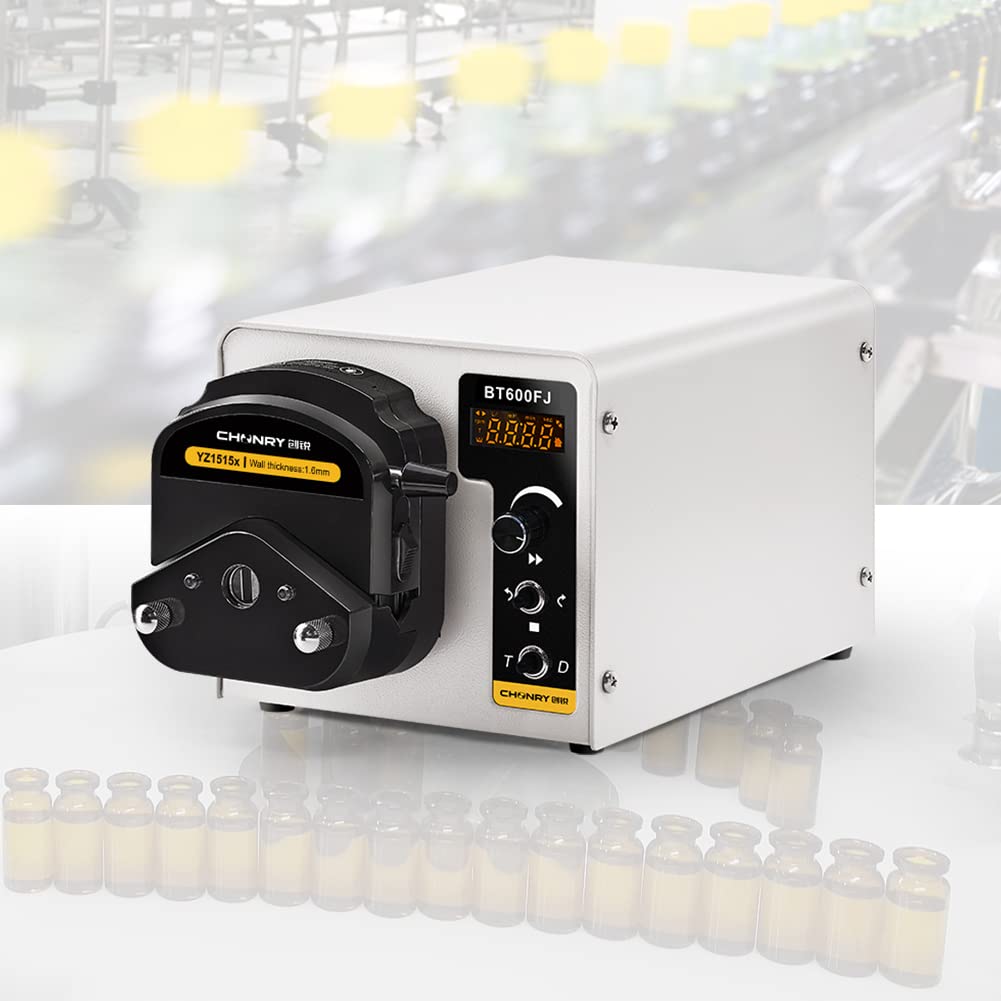

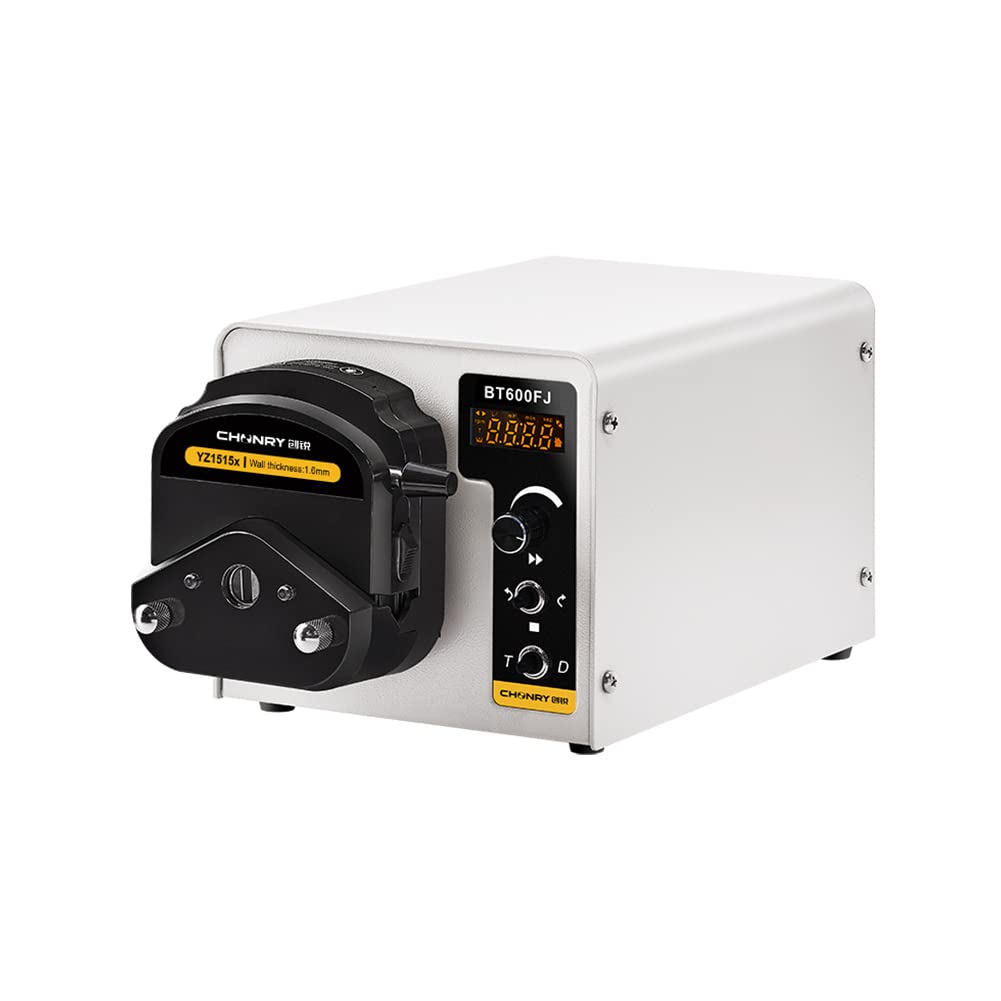

BT600FJ-YZ1515x Peristaltic Pump Peristaltic dosing pump Stepper with Digital Control with pump head Max 2280ml/min Liquid dosing Pump (110v)

Brand: Dr. Lab

Features:

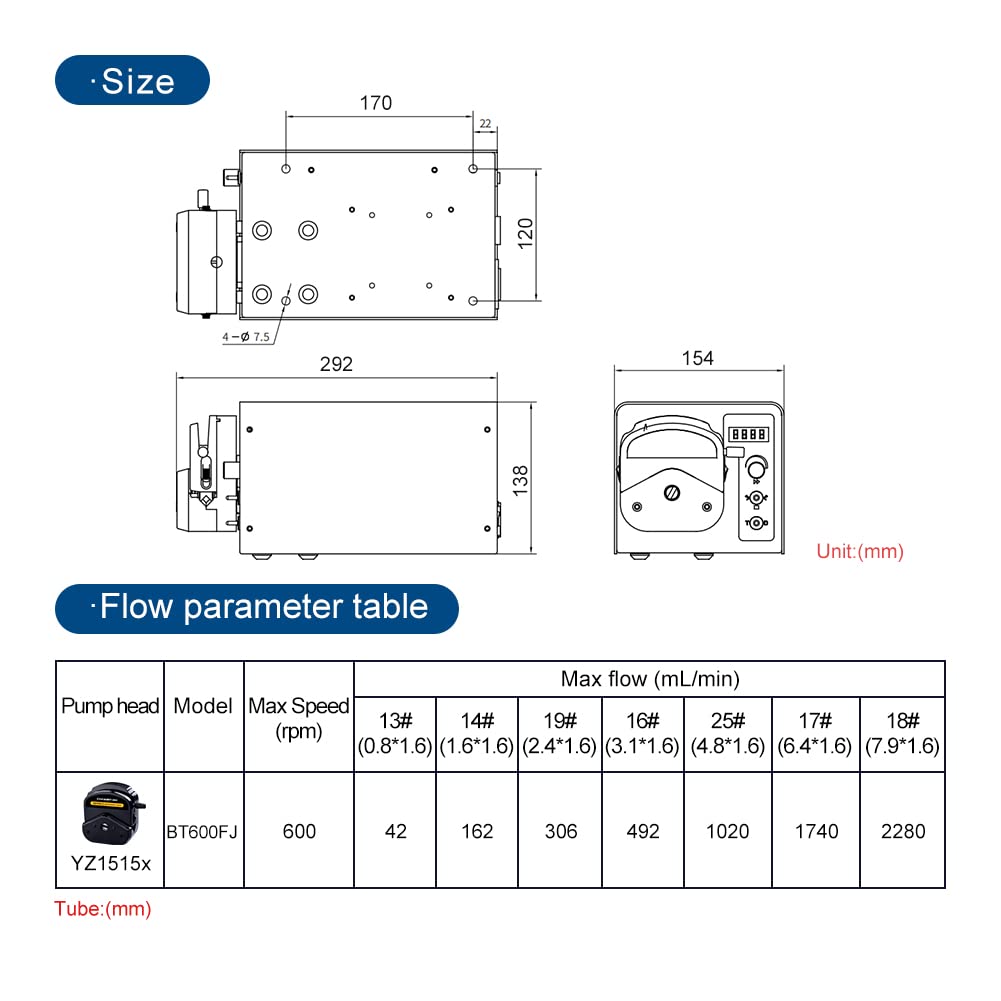

• 1. BT600FJ-YZ1515x ,flowrate range is 0.007~2280ml/min,maximum power: 50W, voltage: 110V-220V（Send 110v by default）,speed range: 0.1-600rpm.Suitable Tubing：17# 13# 14# 19# 16# 25# 18#（The default 17# pump tube, if you need other types of pump tubes, please consult customer service.）

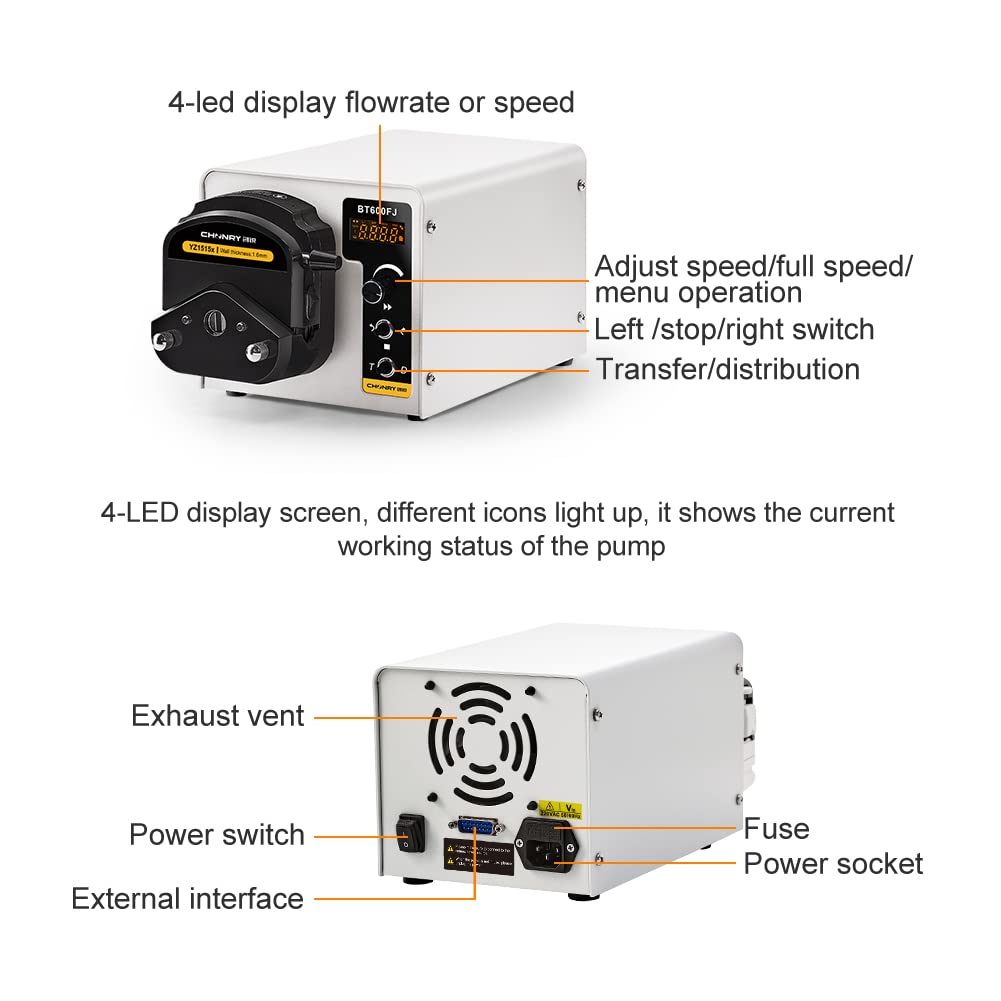

• 2. BT600FJ/YZ1515x peristaltic pump is a delivery peristaltic pump,the flow rate can be adjusted by manual switch knob, instead of the traditional membrane keyboard, which significantly reduces the failure rate; It can also be automatically controlled through the external controller interface, with three modes: 0-5V, 0-10V and 4-20MA.
• 3.This product also has shutdown memory function. Switch knob design clear, convenient user operation. Can be filled and emptied by pressing the full speed button. Peristaltic tube pump fills liquid only through the hose, does not contact the pump body, there is no valve or seal and other connecting parts.
• 4. Peristaltic pump can be set suction Angle and speed, to reduce liquid delivery or filling drip.The pump can use a pedal that allows you to control the pump over a longer distance rather than the traditional start-stop switch.Long-range control is available through the DB15 interface of the drive.It has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.(If you need an external control line, please contact us for remarks.)

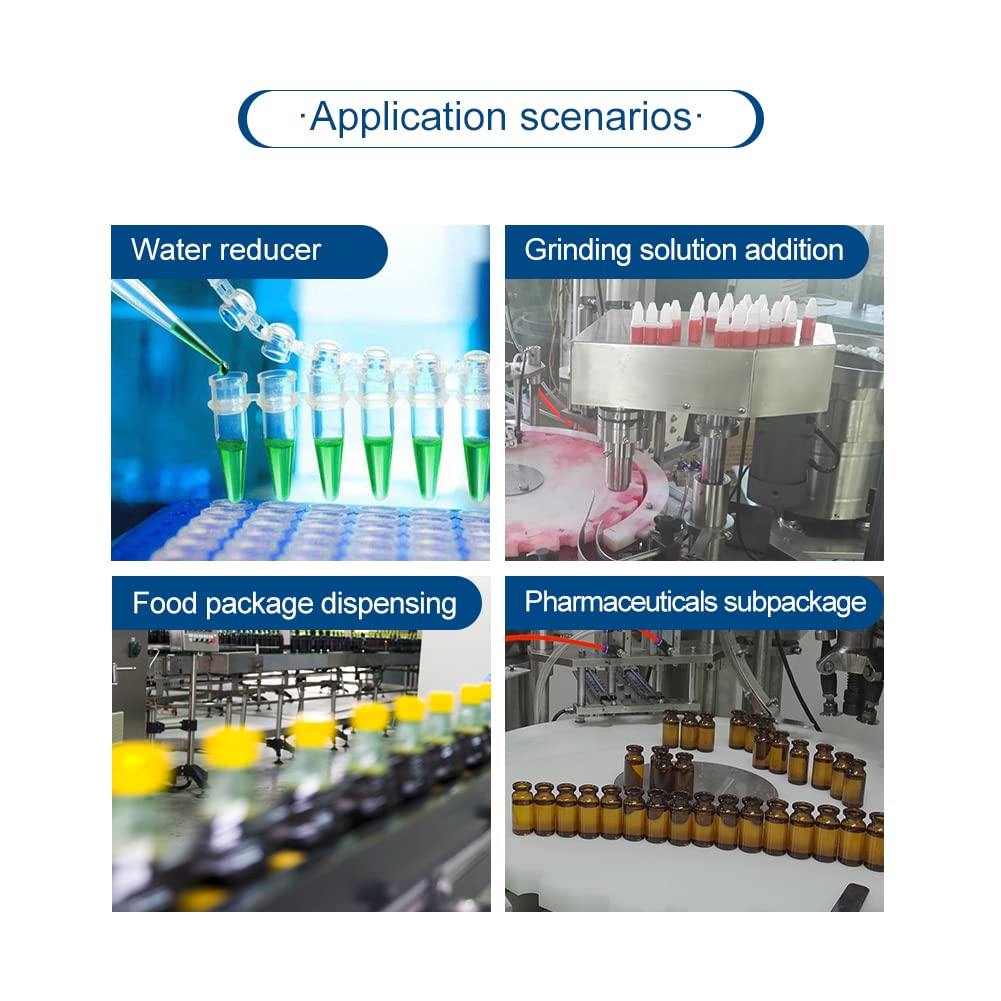

• 5. Application:Used in the addition of water reducing agent,grinding liquid,food packaging,pharmaceutical packaging,etc

Part Number: BT600FJ-03

EAN: 9484876297756
