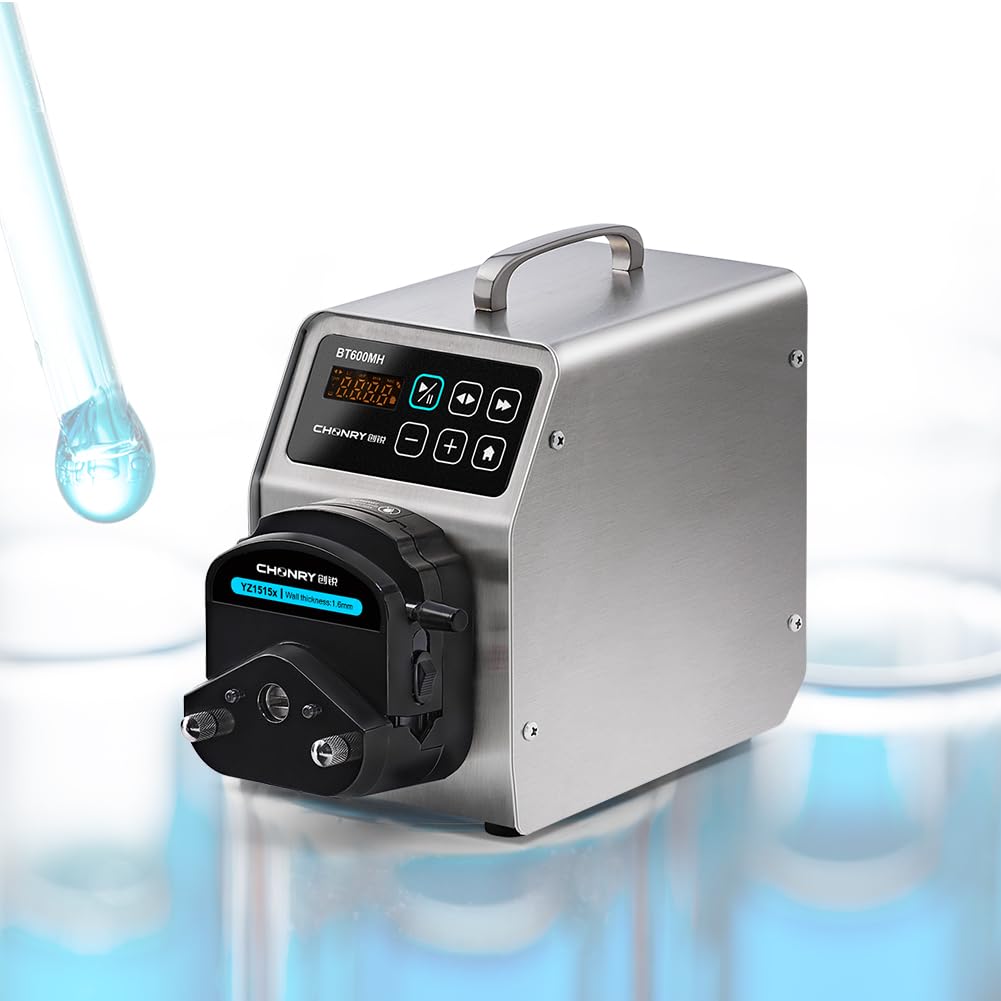

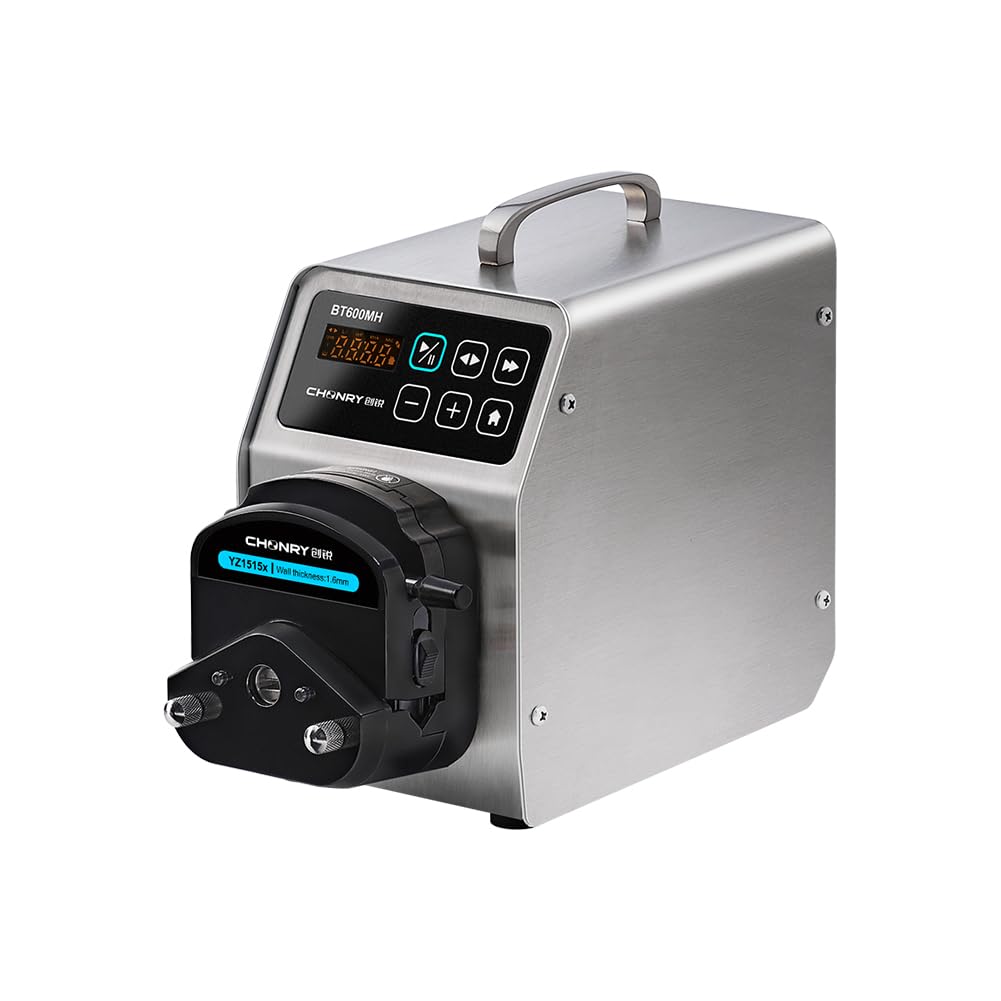

BT600MH-YZ1515x Peristaltic Pump Stepper with Digital Control Dosing Pump with Pump Head Max 2280ml/min Liquid Dosing Pump for Lab (110V)

Brand: Dr. Lab

Color: Silver

Features:

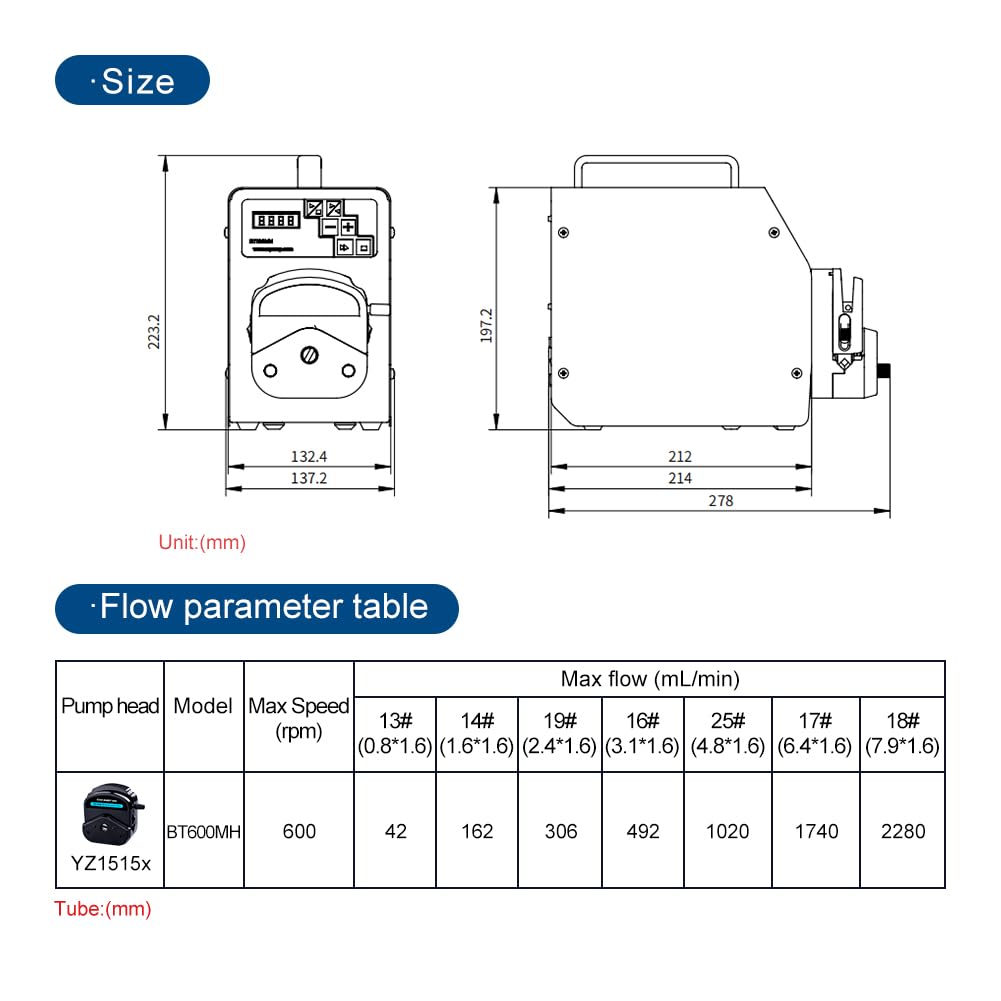

• Technical Specifications: BT600MH-YZ1515x with flowrate range of 0.0072280ml/min, maximum power of 50W, voltage of 110V-220V (110V sent by default), speed range of 0.1-600rpm. Compatible with tubing sizes 17#, 13#, 14#, 19#, 16#, 25#, 18# (17# pump tube included by default)

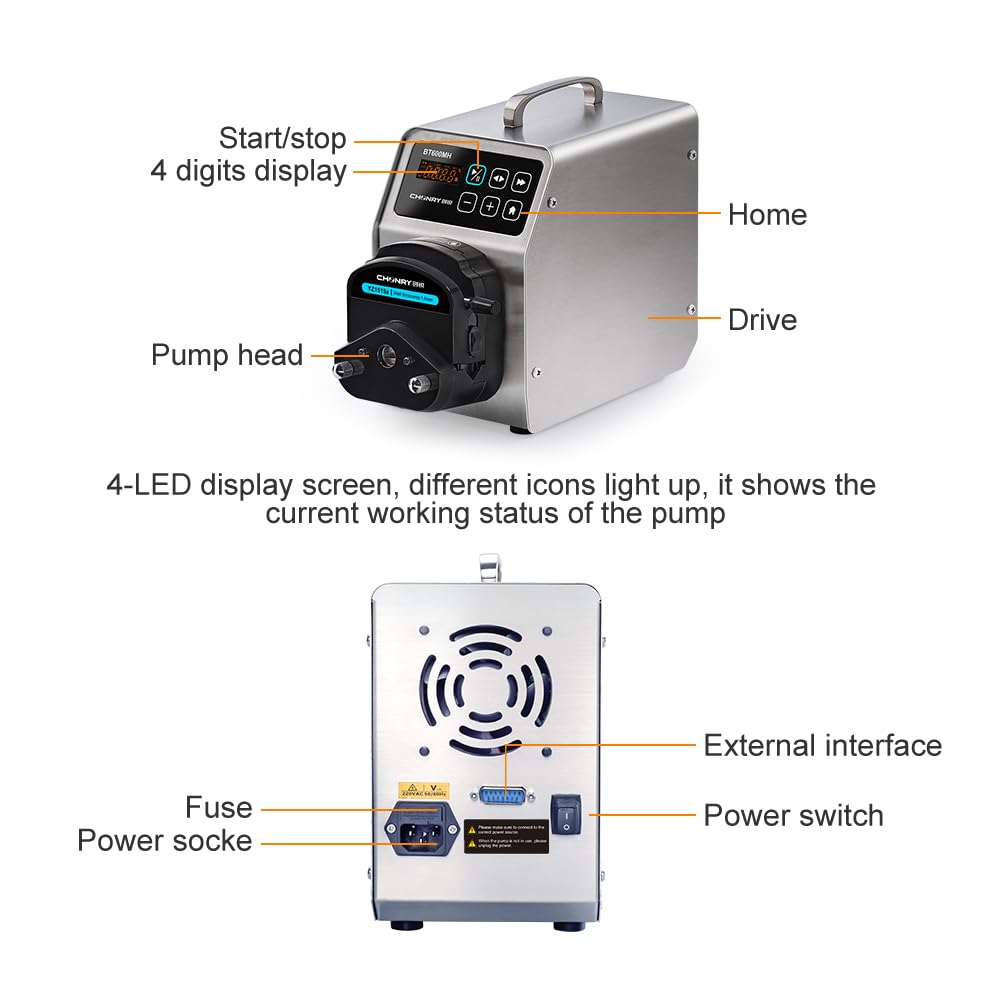

• User-Friendly Interface: Simple button operation with intuitive interface and 4-digit LED display showing current flow or speed. Features automatic control through external controller interface with three modes: 0-5V, 0-10V and 4-20MA
• Convenient Features: One-key full speed button enables quick filling or emptying of the tube. Memory function retains settings in case of power interruption
• Advanced Control Options: Pedal control allows operation over longer distances beyond traditional start-stop switch. Long-range control available through DB15 interface. Includes RS485 communication interface with MODBUS communication protocol support and customization options

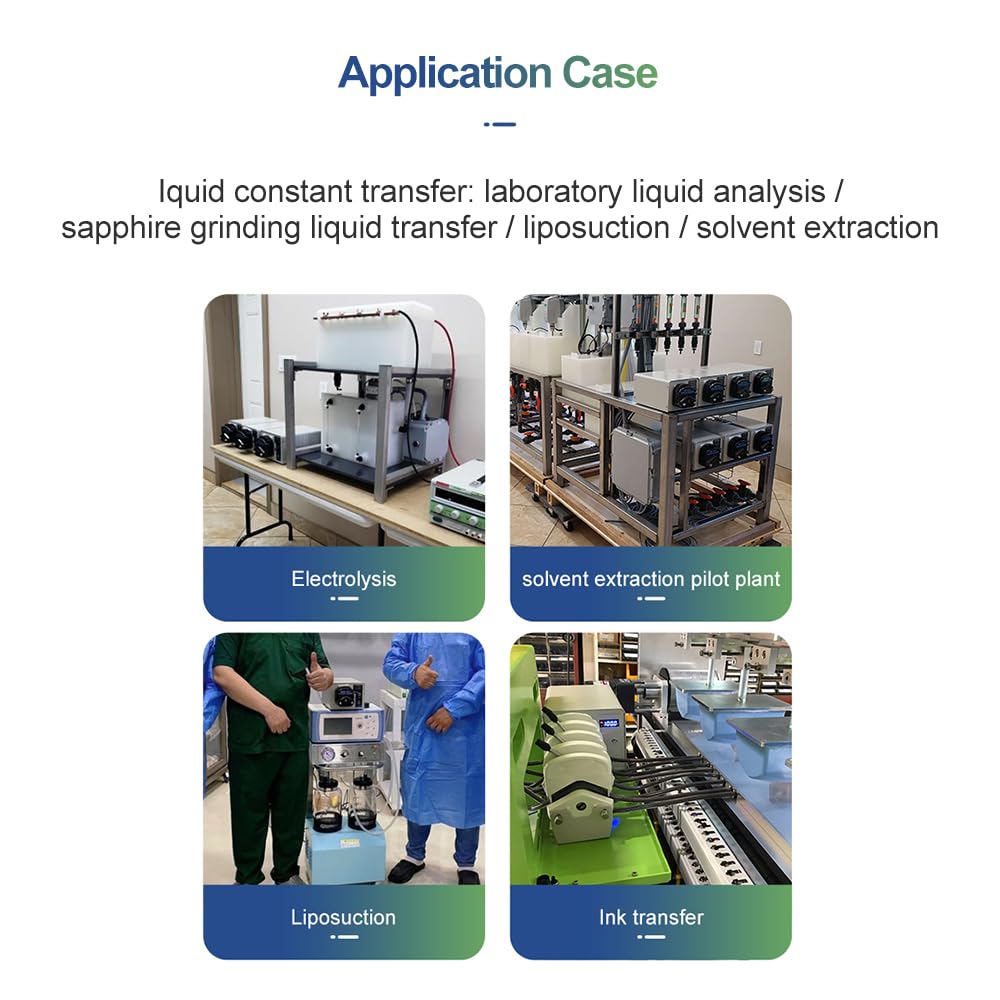

• Wide Range of Applications: Suitable for use in universities and laboratories, water treatment sampling, chromatography liquid supply matching, and industrial raw material addition processes
• Reversible Operation: Features reversible motor with maximum speed of 600rpm, adjustable suction angle from 10-720, and suction speed range of 10-300rpm for versatile pumping requirements
• Precise Flow Control: Membrane key speed regulation system provides accurate control over flow rates, making it suitable for precise liquid dosing and transfer applications in laboratory and industrial settings

model number: BT600MH

Part Number: BT600MH-YZ1515x-03

EAN: 9484876297879
