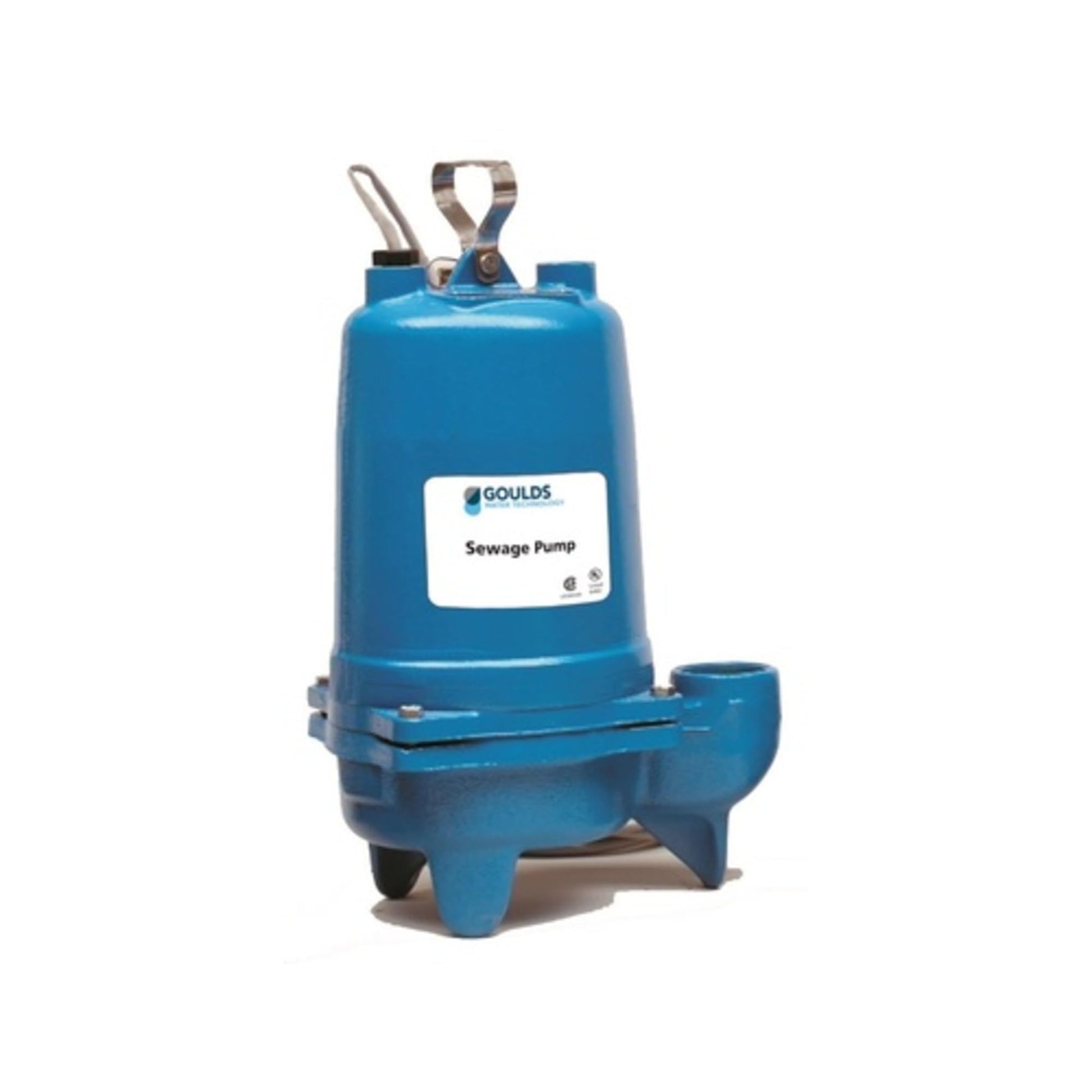

Goulds WS0318B, Model 3886, WS_B Series, Submersible Sewage Pump, 1/3 HP, 208 Volts, 1 Phase, 2" NPT Vertical Discharge, 105 GPM Max, 18 ft Max Head, 20 ft Cord, Manual

Brand: Goulds

Color: Stainless Steel

Features:

• Corrosion resistant construction. Cast iron body. Thermoplastic impeller and cover. Upper sleeve and lower heavy duty ball bearing construction.
• Motor is permanently lubricated for extended service life. Powered for continuous operation
• Vortex impeller. All ratings are within the working limits of the motor. Replaceable power cord, heavy duty 16/3 SJTW with NEMA three prong
• Mechanical seal is carbon, ceramic, BUNA and stainless steel. Stainless steel fasteners. Built-in thermal overload protection with automatic reset
• Class B insulation. Oil-filled design. High strength carbon steel shaft

Part Number: WS0318B

Details: Goulds 3886 Submersible Sewage Pump
This pump is capable of handling sewage containing non-abrasive 2 inch maximum solids.
Features Cast iron, semi-open, non clog impeller is dynamically balanced with pump out vanes for mechanical seal protection Cast iron volute type for maximum efficiency Designed for easy installation on A10-20 guide rail or base elbow rail systems Mechanical seal with SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers Corrosion-resistant stainless steel shaft. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation 300 series stainless steel fasteners Capable of running dry without damage to components Designed for continuous operation when fully submerged Single phase models feature capacitor start motors for maximum starting torque Built-in overload with automatic reset Severe duty oil and water resistant power cords Supplied with NEMA three prong grounding plugs 2" NPT threaded casing with a vertical discharge
Applications Homes Sewage systems Dewatering / effluent Water transfer

EAN: 0697666156471
