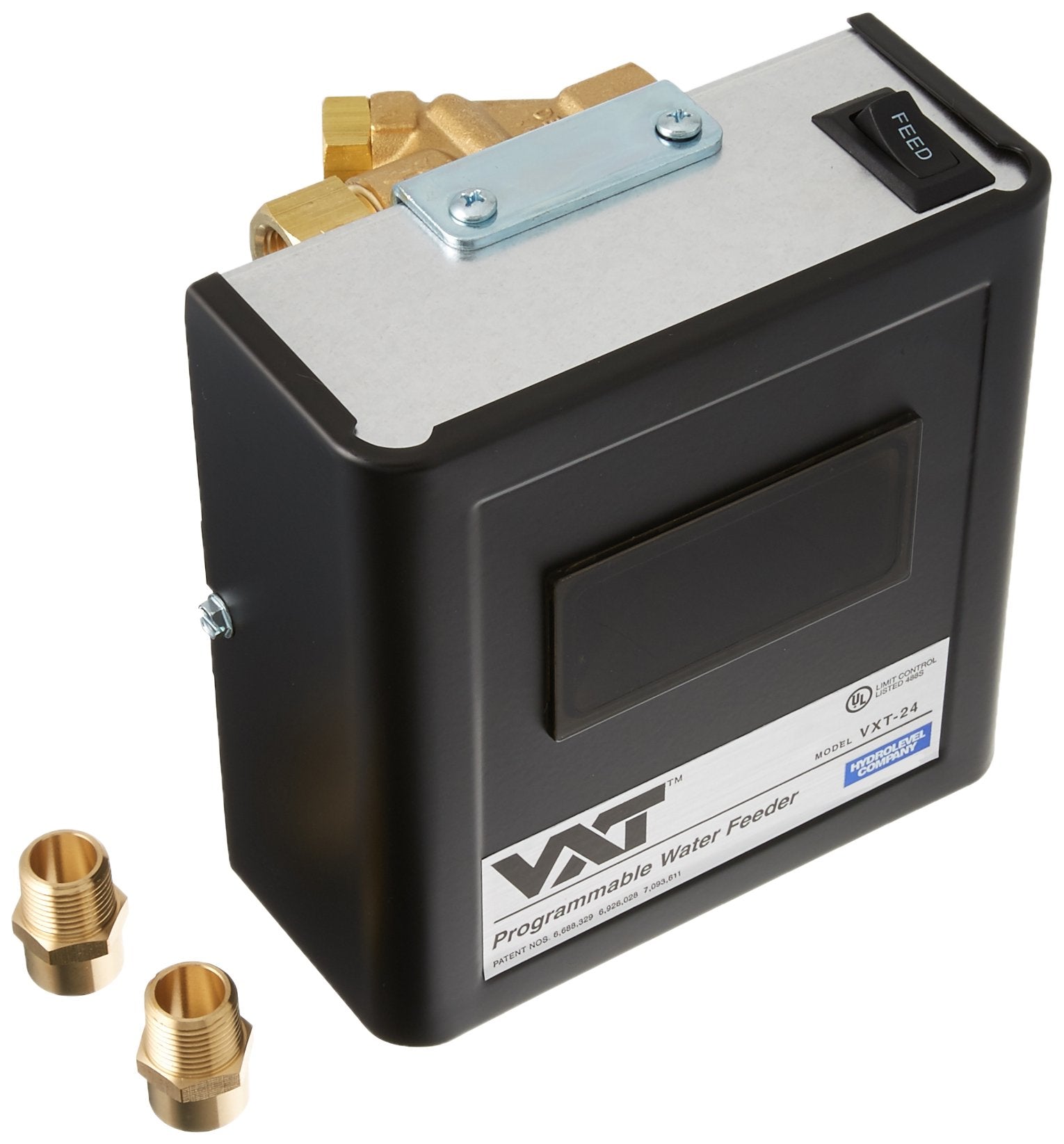

Hydrolevel 4567 Water Feeder 24 VAC for Steam Boilers Part No. 45-026

Brand: Hydrolevel

Color: Black

Features:

• Universal Compatibility
• Digital Feed Counter
• Programmable Feed Delay Settings (30 Sec. to 10 Min)
• Country of Origin: China

model number: vxt-24

Part Number: vxt-24

Details: Power Consumption 10 VA. Max. Fluid Temperature 150° F. Flow Rate 1 GPM. Fittings 1/2" Sweat. Upon a feed signal from low water cut-off, the VXT feeder delays (from 30 seconds to 10 minutes) to allow condensate to return to boiler. If make-upwater is required after the delay period, the VXT will initiate a feed cycle. TheVXT can be set to feed to the level of the low water cut-off or can be set from 1 to 5 gallons to raise the water level above the cut-off to the normal operating level. The digital feed counter tracks all water fed into the boiler including water added using the Manual Feed Button. VXT-24. 24 VAC.

EAN: 0642277450265

Package Dimensions: 6.8 x 6.0 x 5.3 inches
