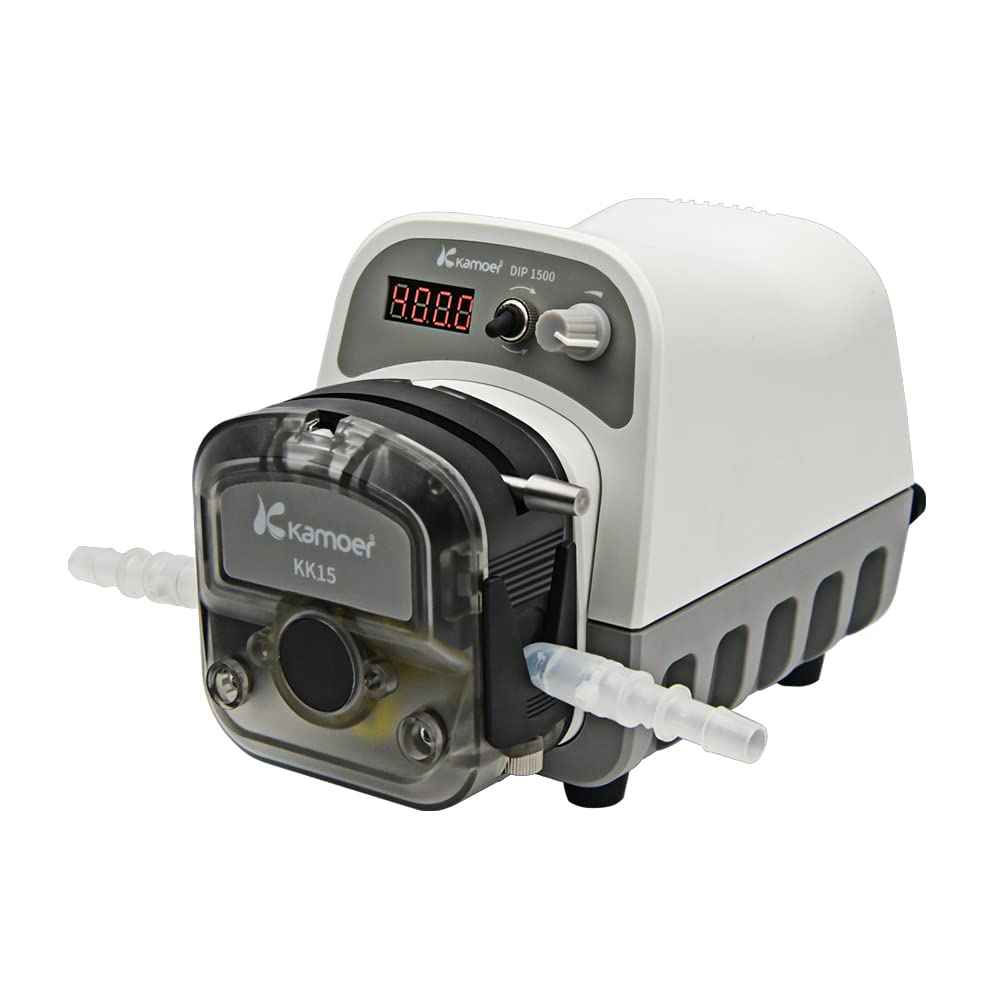

DIP1500 intelligent peristaltic pump, using high-precision long-life stepper motor, with a digital LED display to show the instant speed, flow rate.

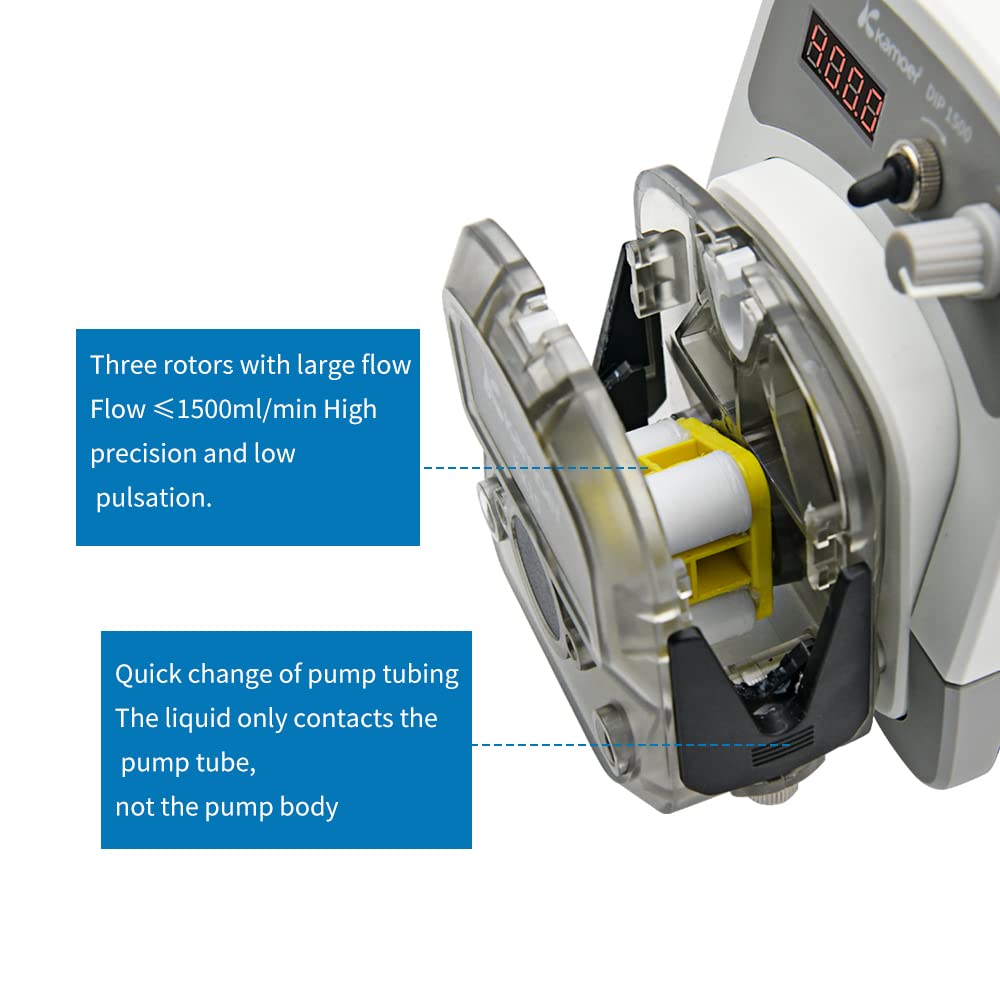

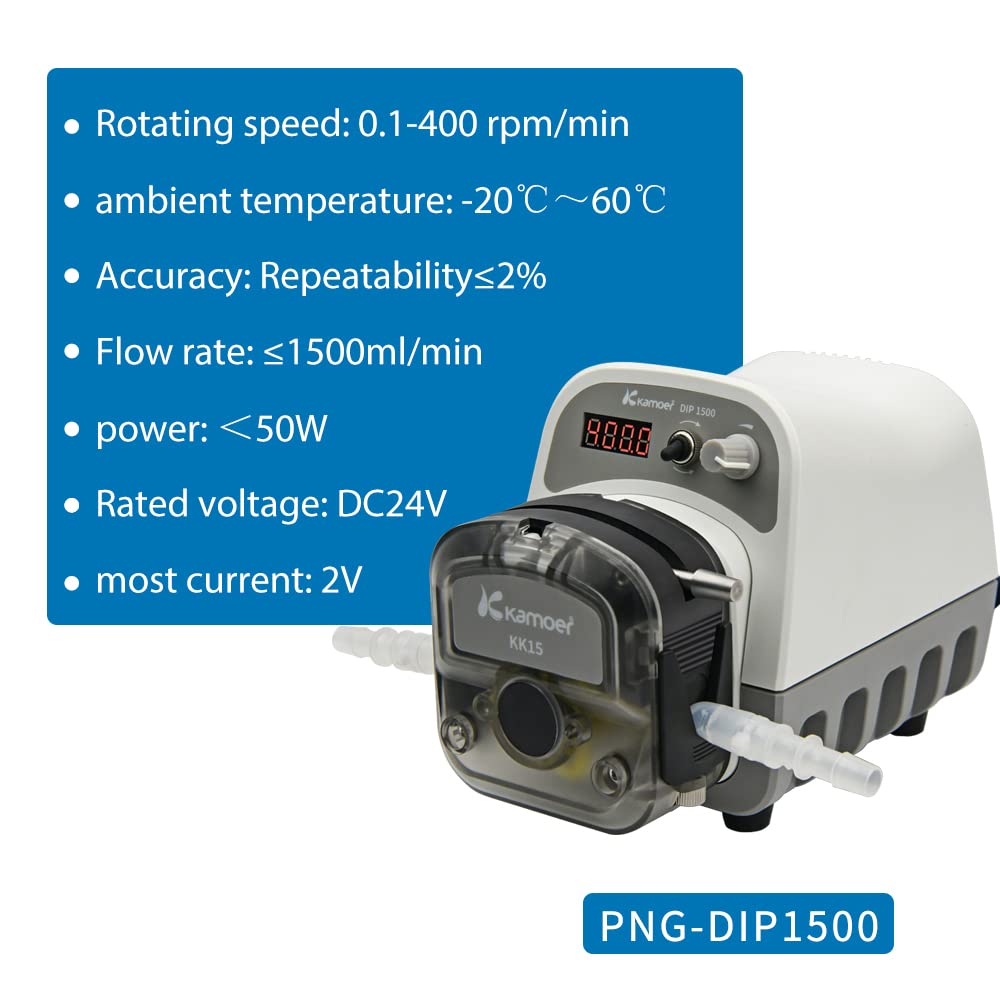

Standard silicone tube S18#7.9mm IDx11.1mm OD(consumables,lifetime about 200H), easy to change tube, 3 rotors, speed range 0.1-400rpm, flow rate ≤1500ml/min, DC24V, 2A, power <50W, weight about 1.7KG, noise ≤65dB.
Support the functions of start-stop, reversing, speed regulation, calibration, reverse sucking back, etc. Precise control of stepper motor, speed adjustment resolution 0.1 rpm.

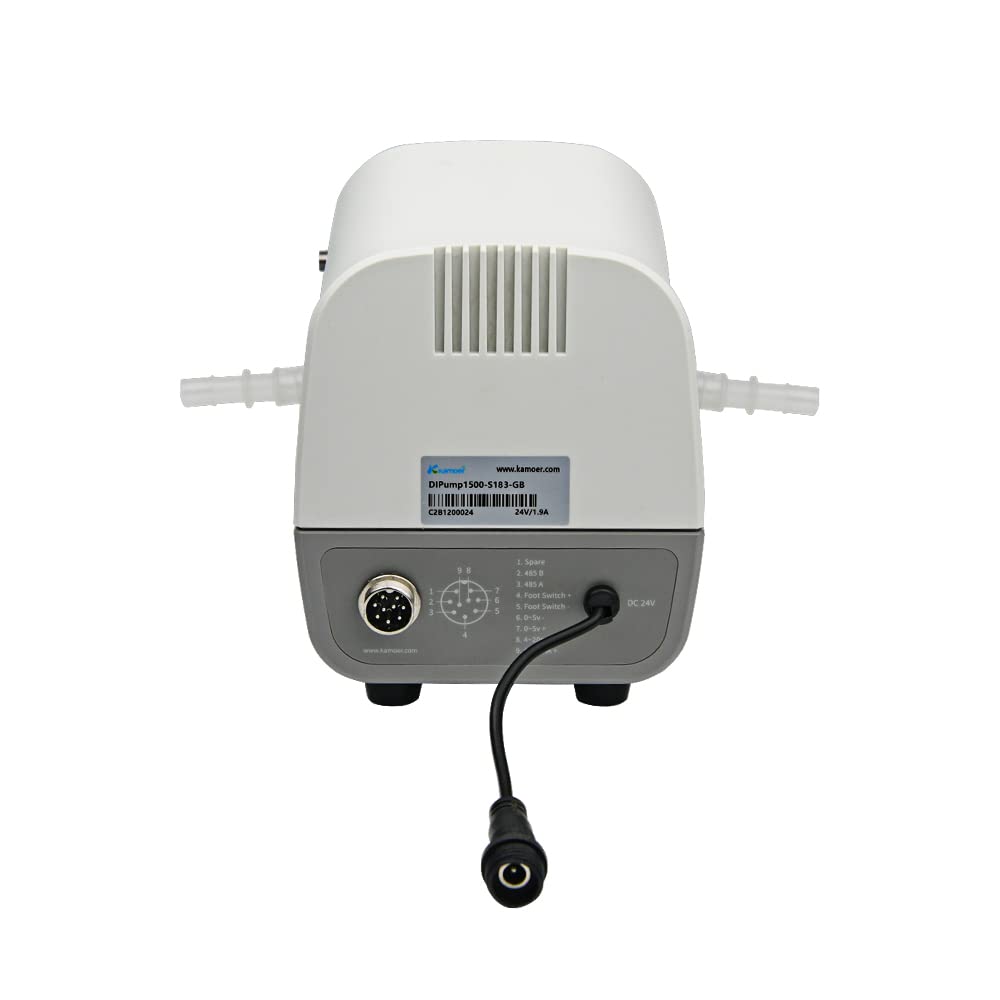

Multiple control methods, support rotary encoder, foot switch, external analog (4-20mA and 0-5V), 485 communication (Modbus) control.

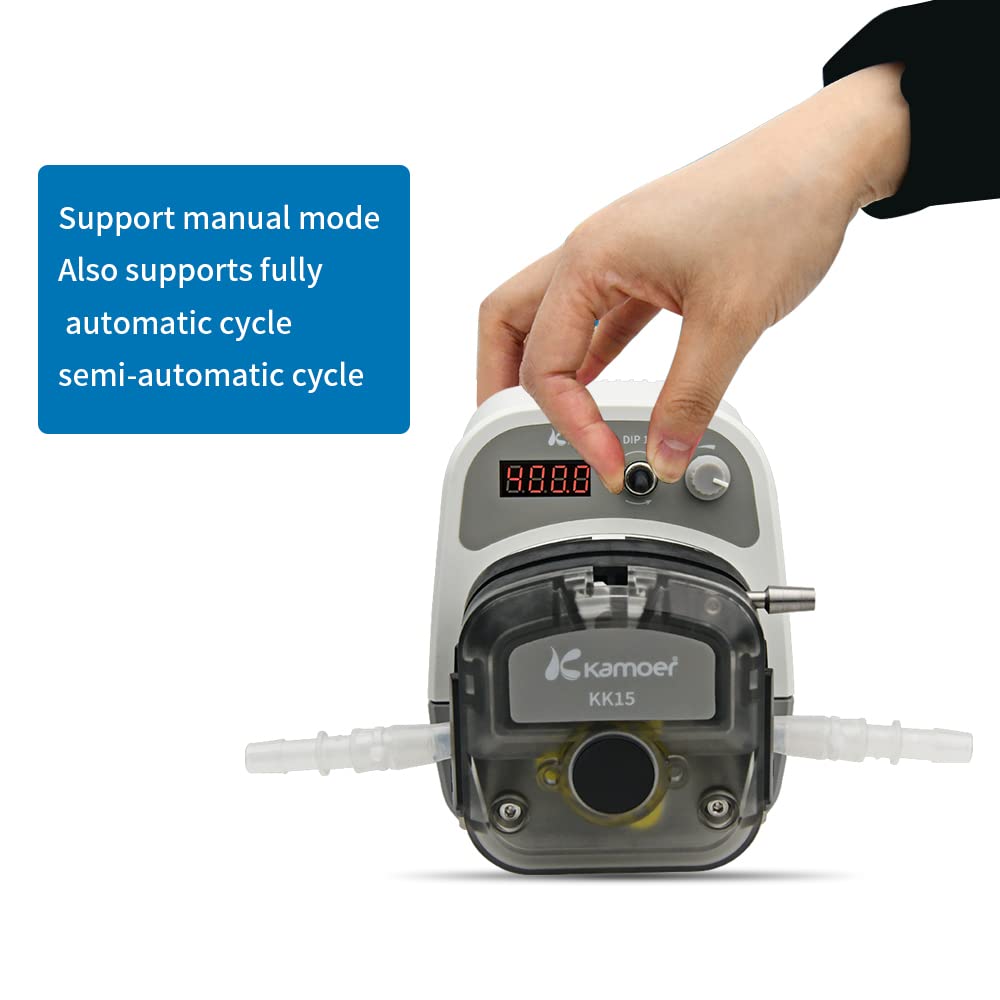

Optional operation by speed and operation by flow, support fully automatic cycle work, semi-automatic cycle work and manual control work. With power failure memory function, it can automatically save the operation parameters when the last power failure occurred.
