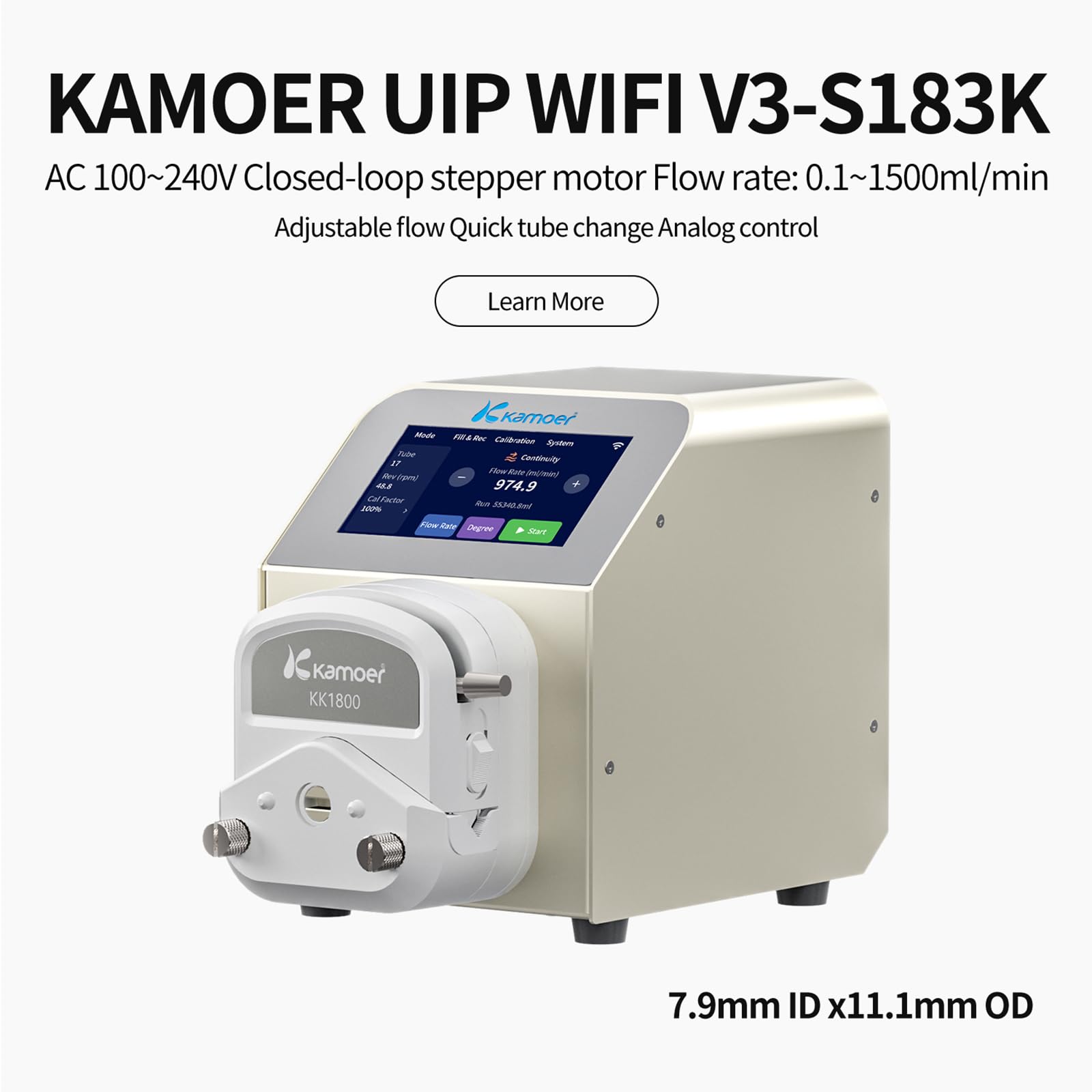

Kamoer UIP V3 Intelligent 0.1~1500ml/min High Flow Peristaltic Pump with High-Precision Closed-Loop Stepper Motor 100V~240VAC Dosing Pump Foot Switch (UIP-V3 Single Head)

Brand: Kamoer

Features:

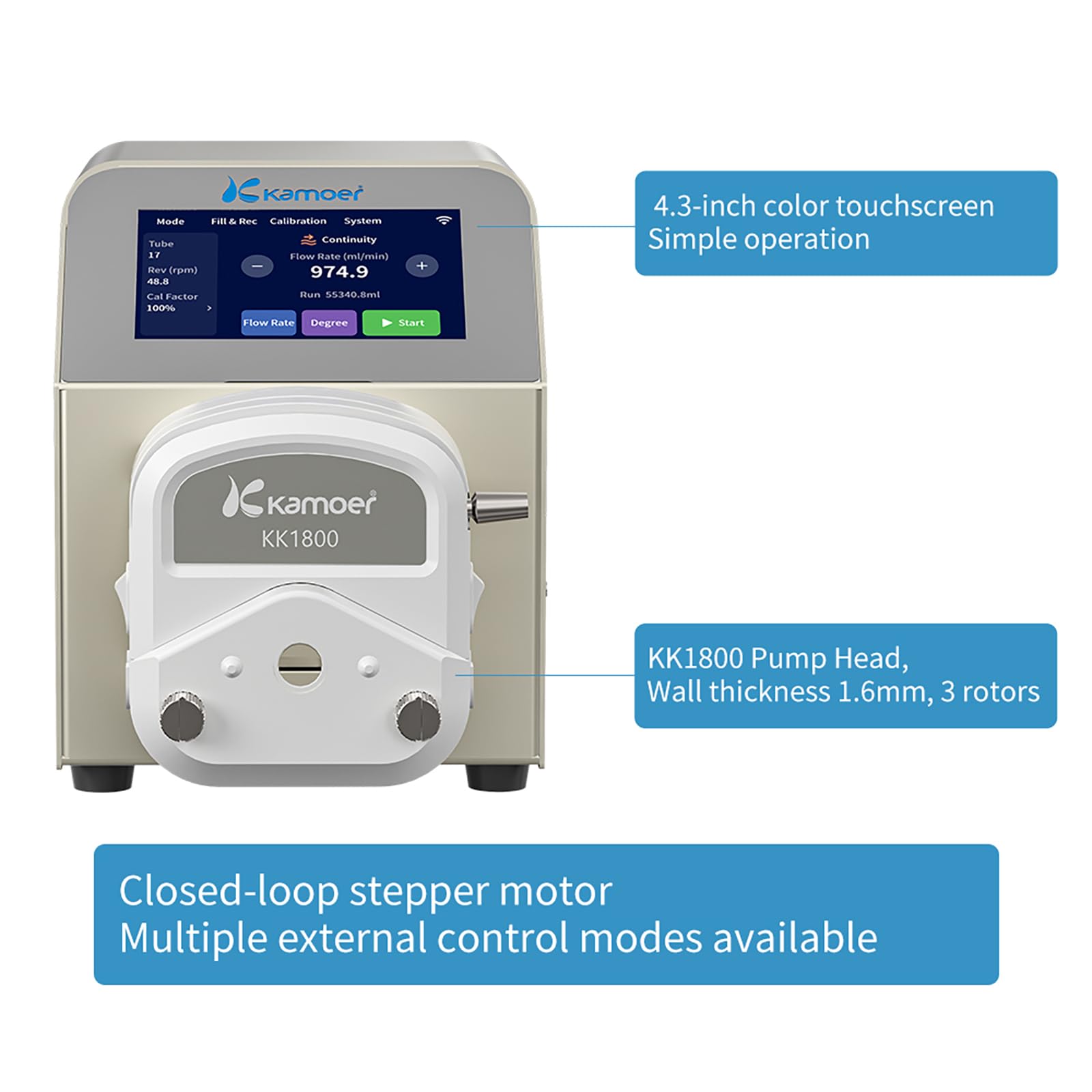

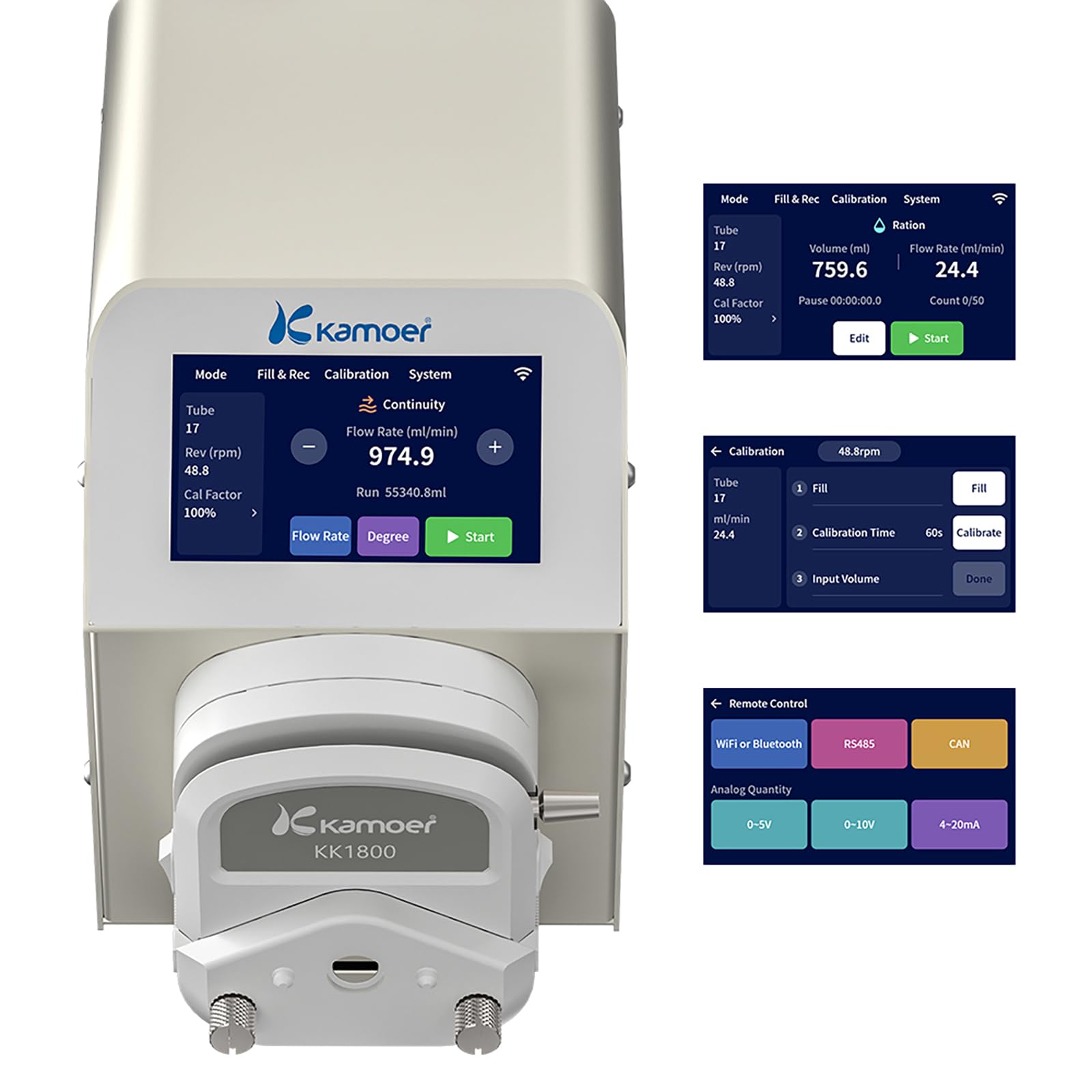

• Smart & Intuitive Operation – Features a 4.3" color touch screen with Wi-Fi connectivity. Supports continuous, dispensing (batch), and remote control modes. Easy to set flow rate, volume, cycles, and pause time via the built-in interface.

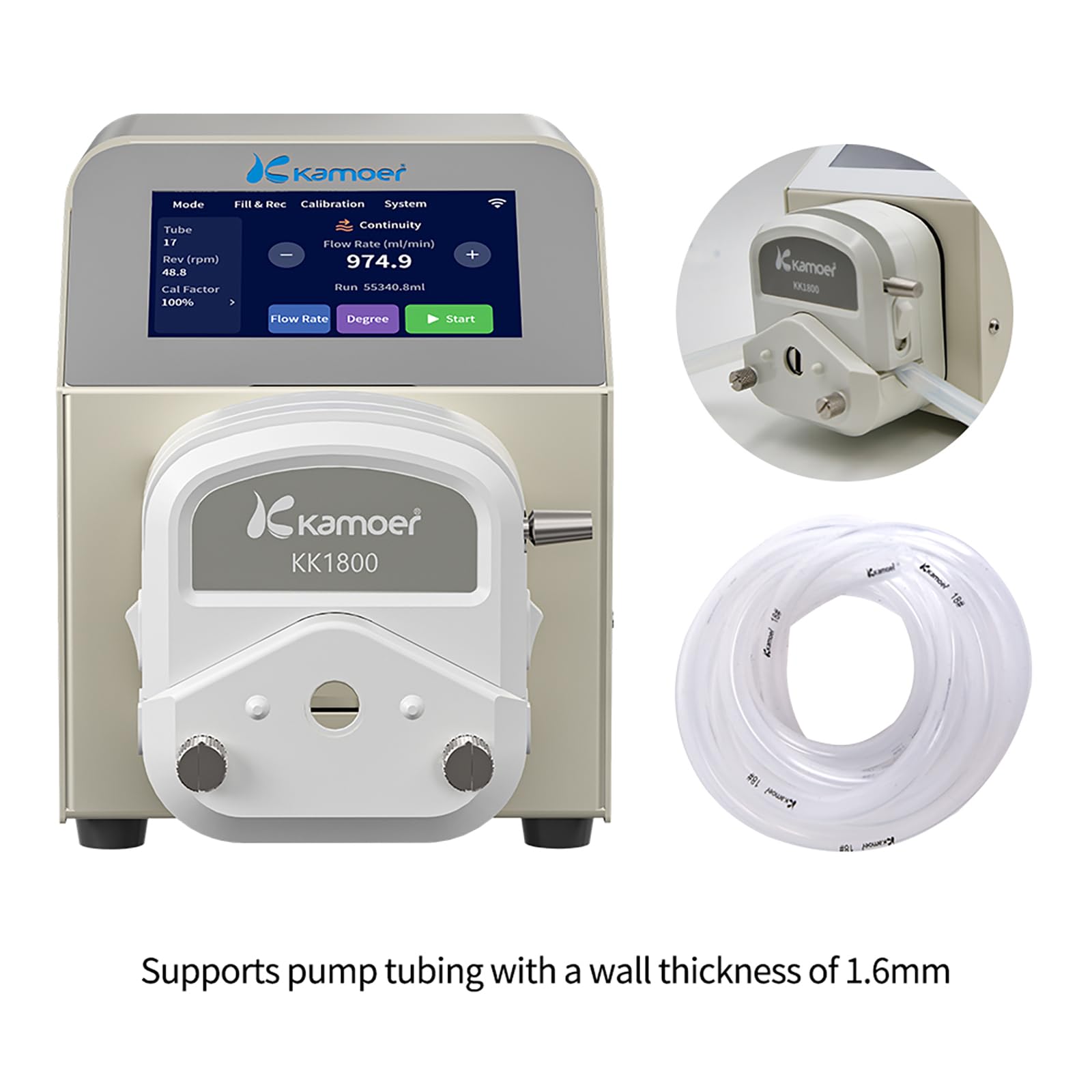

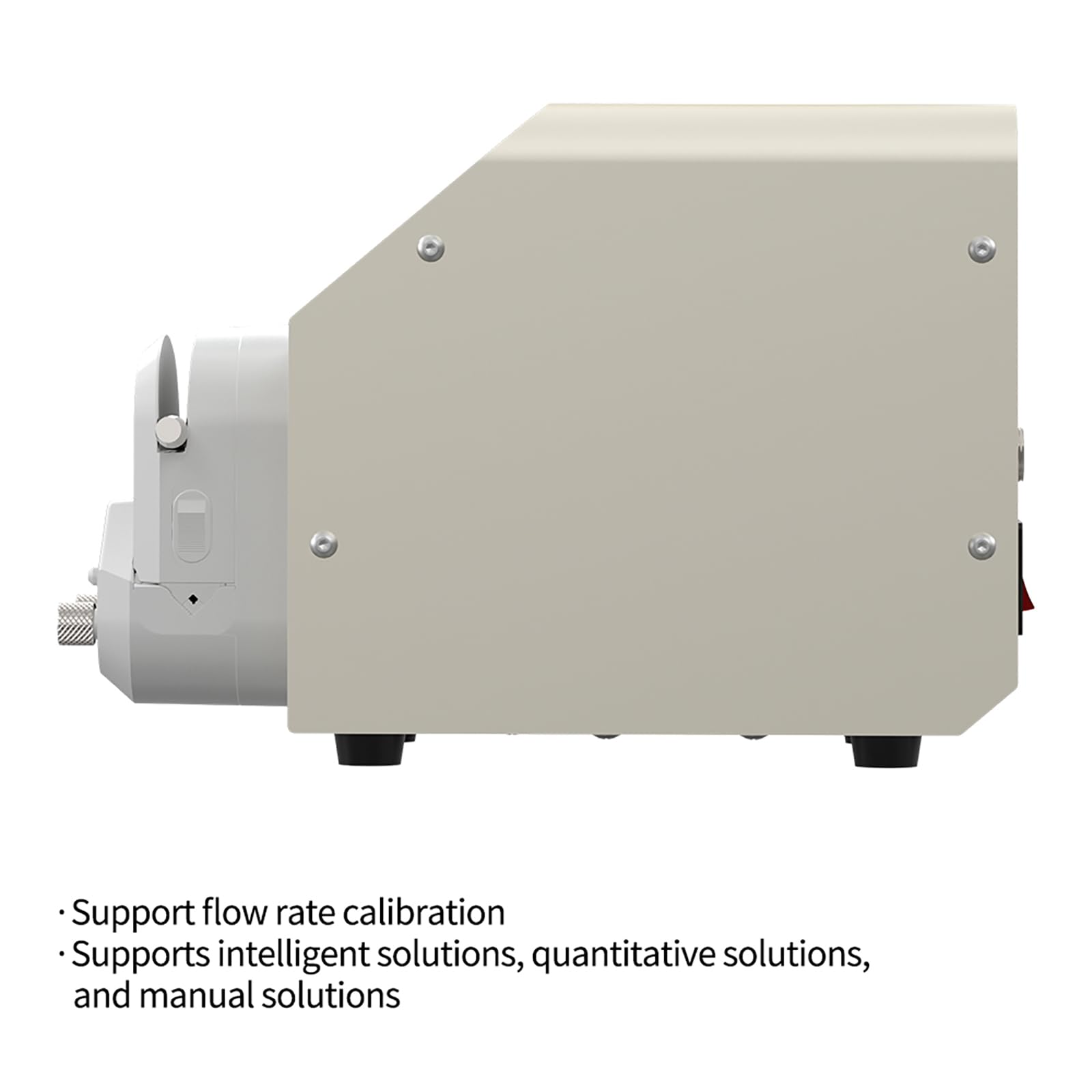

• High Precision & Wide Flow Range – Equipped with a closed-loop stepper motor (0.1–350 RPM resolution). Flow rate from 0.1 to 1500 mL/min depending on tubing (supports 1.6mm/2.5mm wall thickness, 3 or 6 rotor options). Built in flow calibration ensures accurate liquid delivery.

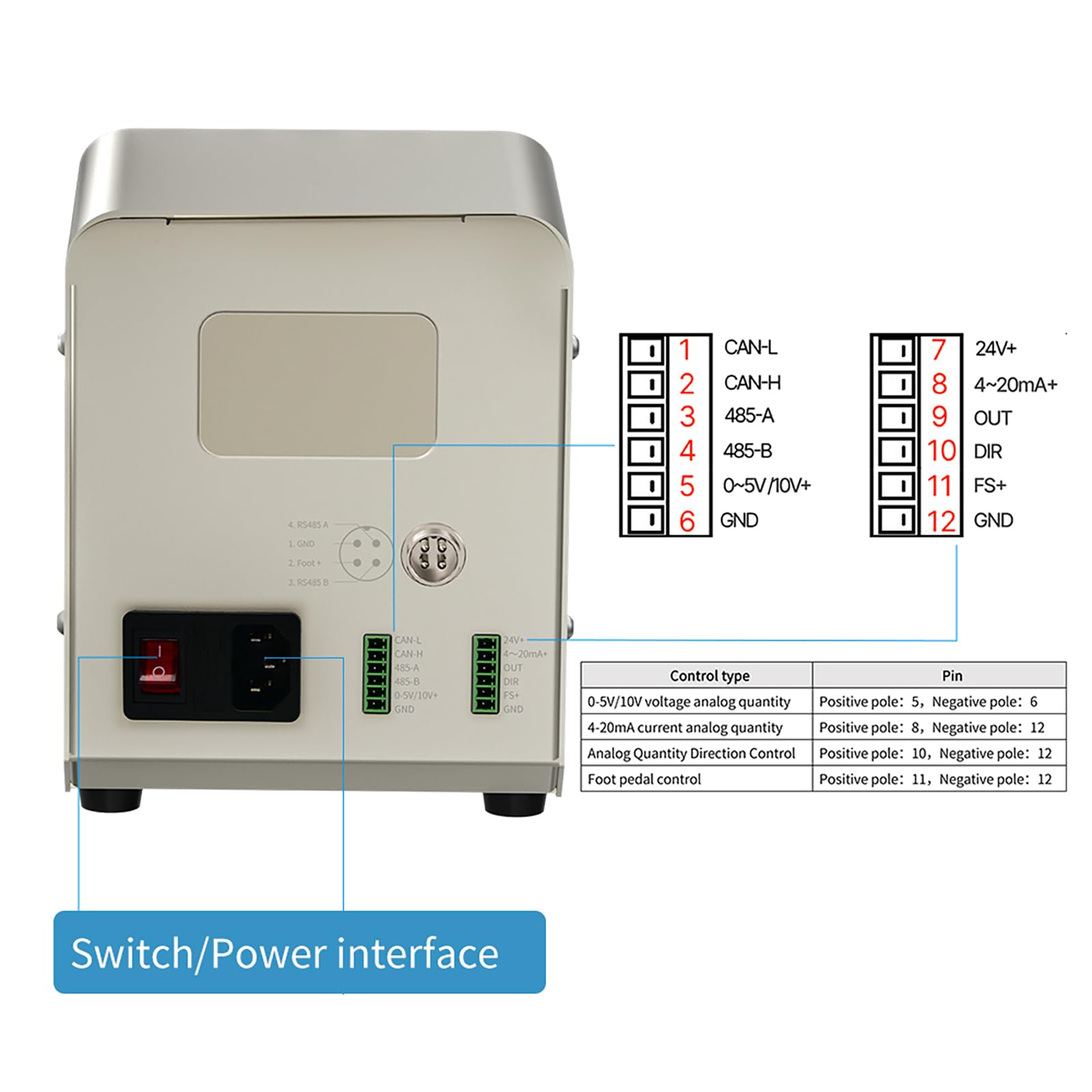

• Versatile External Control – Includes RS485, CAN, 0–5V/0–10V voltage analog, 4–20mA current analog, direction control, and foot pedal switch (GX16 4 aviation socket). Easily integrates into automated systems or remote operation setups.
• Durable & Reliable Construction – Stainless steel rotor and rugged pump head (KK1800) for long service life. Stepper motor rated for >6,000 hours. Works with various tubing materials (silicone, etc.) for corrosive or viscous fluids. Back siphon function prevents drips after dispensing.

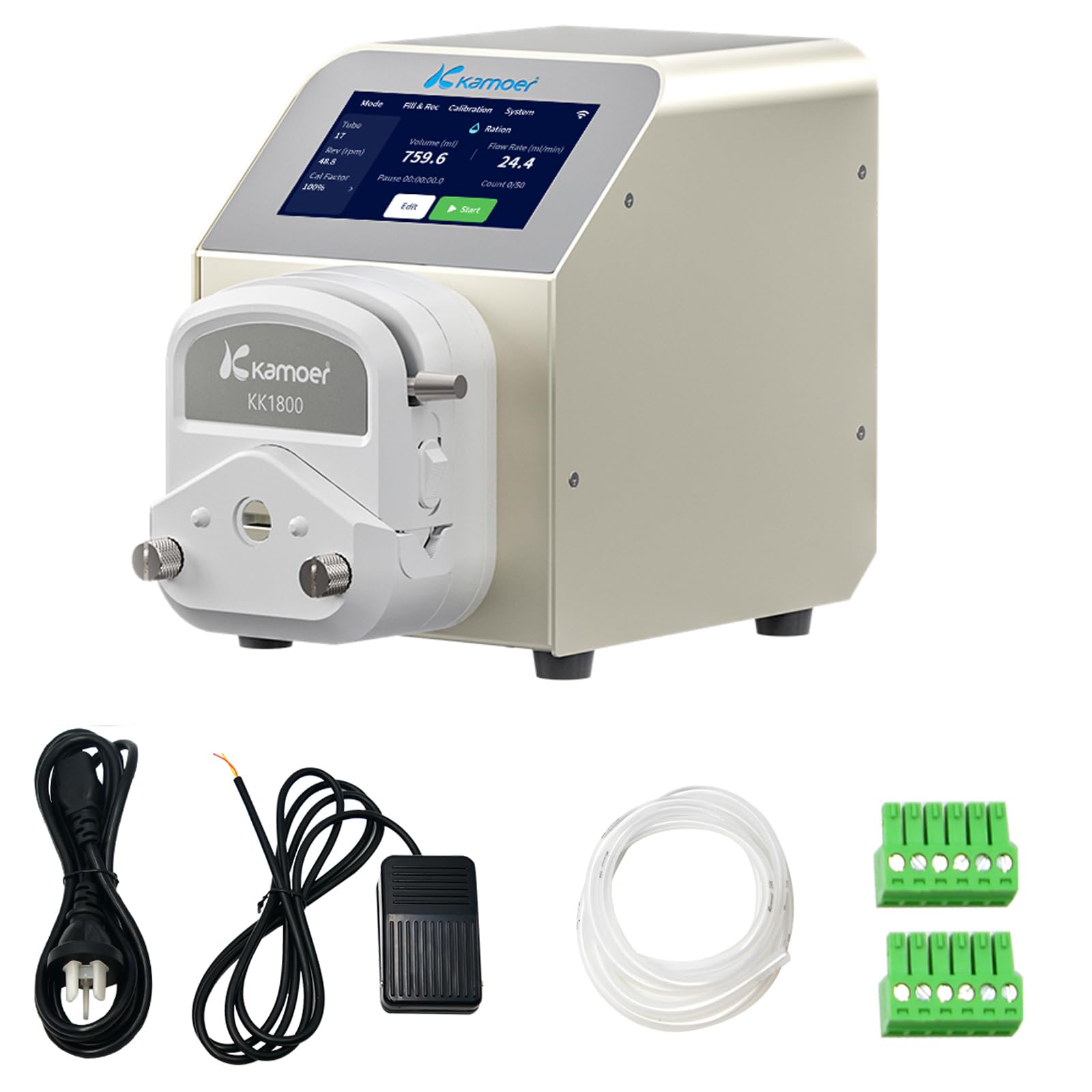

• Wide Application & Safety Features – Ideal for laboratory liquid transfer, reagent dispensing, food packaging machines, and chemical feeding. Supports foot pedal control, optical sensor (for bottle detection), and password lock. CE/RoHS compliant. Comes with 1.8m power cord and quick connect terminals.

model number: UIP

Package Dimensions: 14.5 x 11.5 x 9.0 inches
