APPLICATIONS: designed for in-line, non-submersible use to circulate highly corrosive acids, alkalis, solvents, brine, plating and sterile solutions, and other highly corrosive chemicals/solutions
EXCELLENT CHEMICAL RESISTANCE: leak-proof, seal-less magnetic drive; volute, magnet housing and impellers are glass-filled polyphenylene sulfide; FKM O-ring; ceramic shaft and thrust washers
EASY MAINTENANCE: pumping heads are easily rotated for cleaning or servicing with no special tools required
MOTOR SPECIFICATIONS: 115 Volt, 50/60 Hz, 2.0 Amps, 240 Watts, Thermally Protected, CSA component recognized in the USA and Canada

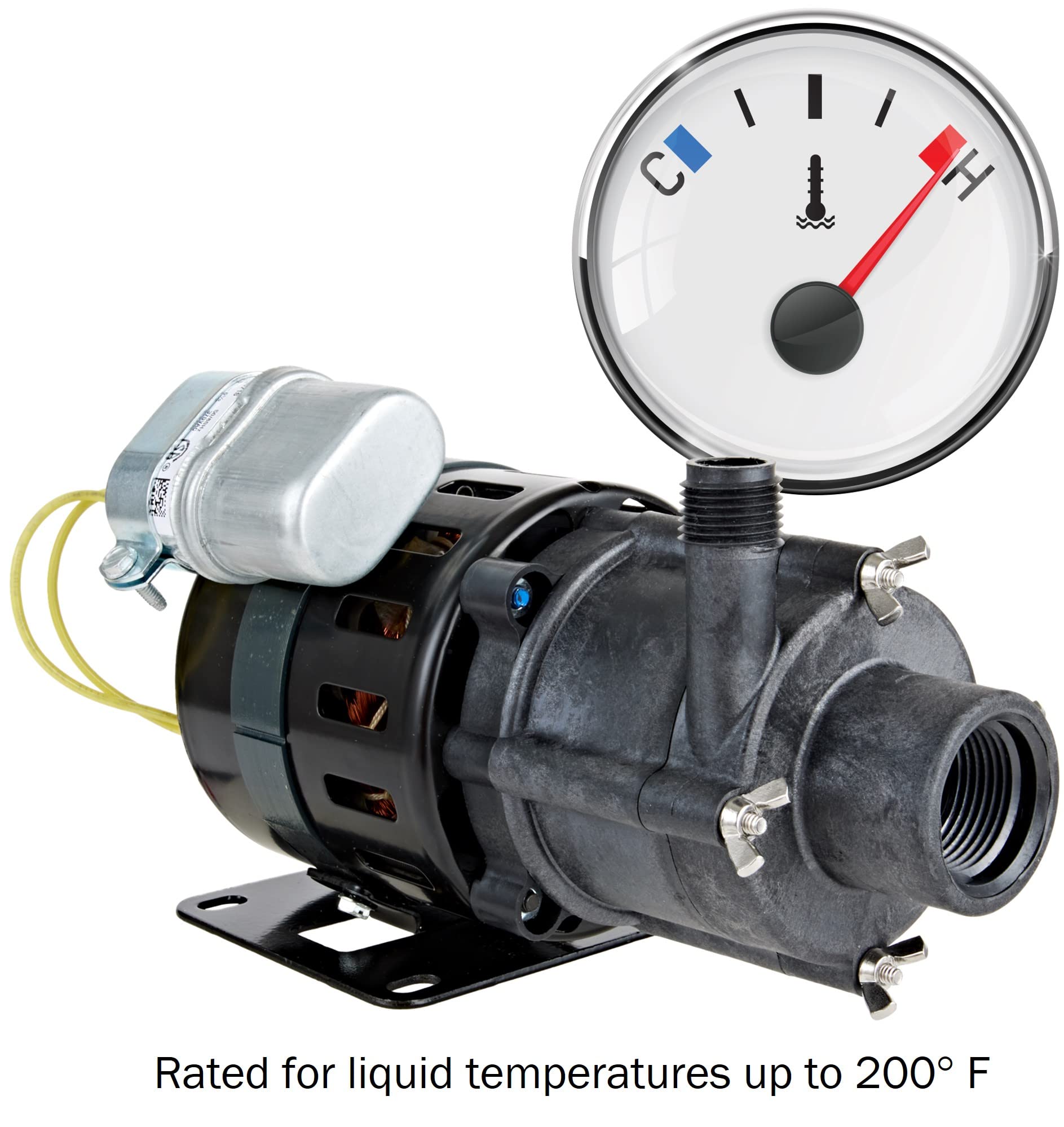

PUMP SPECIFICATIONS: 1050 GPH at 0-ft. Lift, 27.5-ft. shutoff; maximum liquid temperature 200°F; 1/2-inch MNPT discharge; 1-inch FNPT intake; 6-ft. cord with plug
model number: 583603
Part Number: 583603

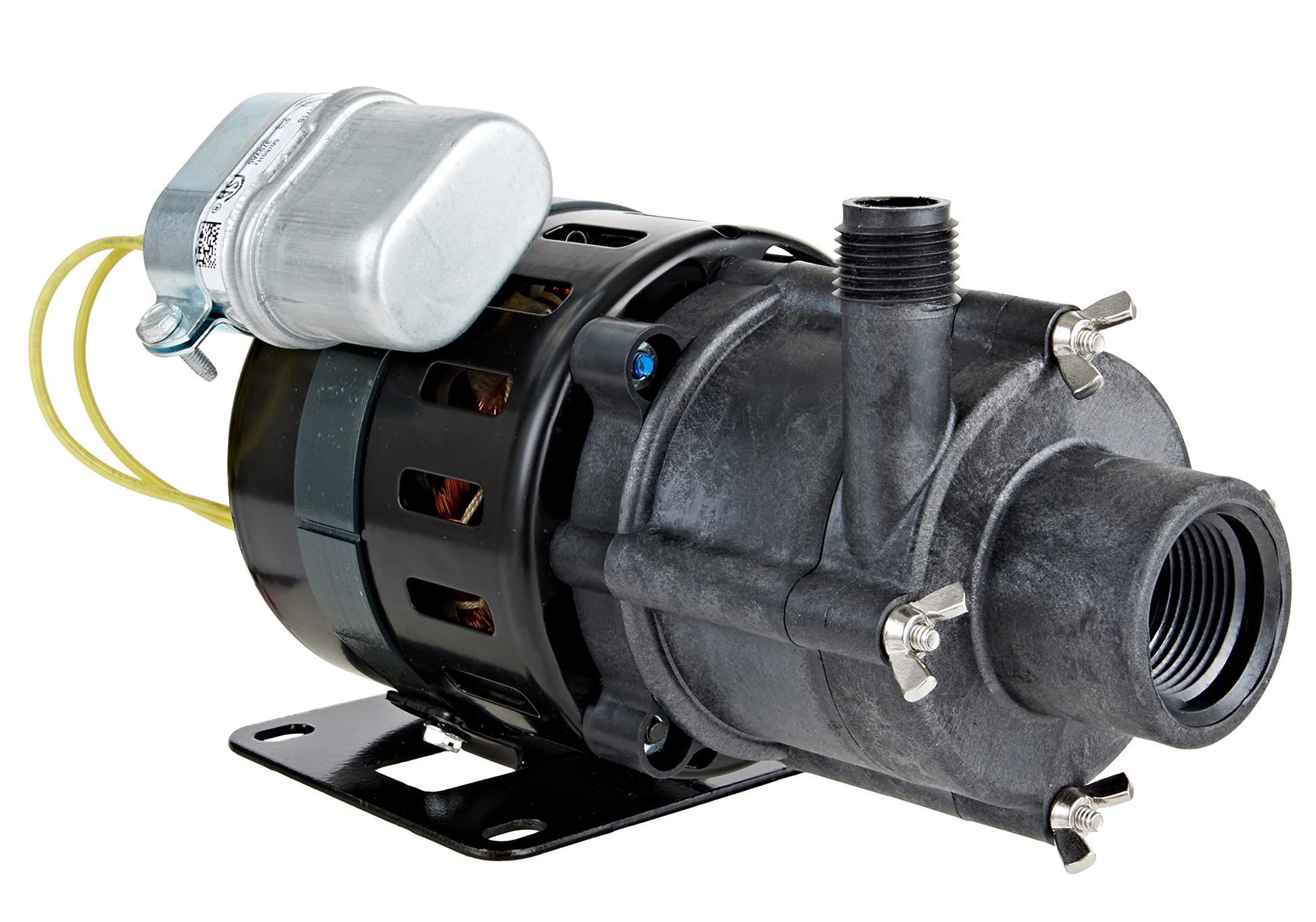

Details: The Little Giant 115 Volt, 1/8 HP 5-MD-HC non-submersible magnetic drive pump is sued to circulate highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions (1.1 specific gravity). Its volute, magnet housing and impeller are glass-filled polyphenylene sulfide for excellent chemical resistance. This pump utilizes pure carbon bushings to enable the pump to run dry for up to 8 hours at a time. This pump delivers up to 1050 GPH at 0-ft. lift and comes with a 6-ft. power cord with plug.
