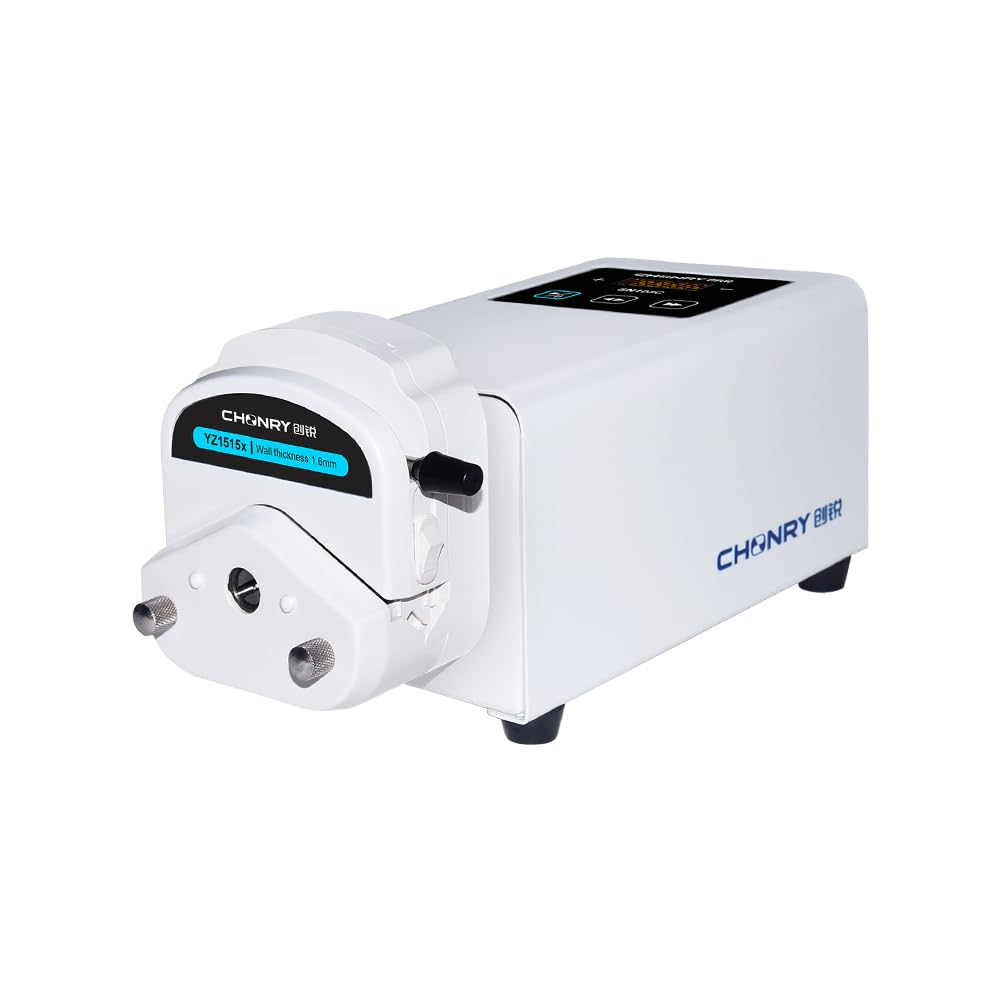

ON103C/YZ1515X High Flow Digital Transfer Peristaltic Pump Max Flow 380mL/min Small Intelligent Multi-Channel Laboratory Water Pump with Tubing 110v

Brand: Dr. Lab

Color: White

Features:

• Compact Design: Small size for space-saving use in laboratory environments
• Durable Construction: The surface of the shell adopts electrostatic anticorrosive spraying treatment with pearl white finish, visually appealing with delicate touch, anticorrosive and durable
• User-Friendly Controls: Easy operation with physical buttons for start/stop, direction, and rpm control
• Quiet Operation: Low noise and vibration during pump operation for maintaining a peaceful experimental environment
• Communication Protocol Support: Supports RS485/MODBUS communication protocol, with customization options available according to user requirements
• Versatile Pump Head Compatibility: Compatible with various pump heads including TX215, YZ, DG, and BZ series
• High Flow Capacity: Maximum flow rate of 380mL/min with adjustable speed up to 100rpm in reversible direction
• Precise Speed Control: Speed resolution of 0.1rpm for accurate and controlled fluid transfer in laboratory applications

Part Number: ON103C-YZ1515X

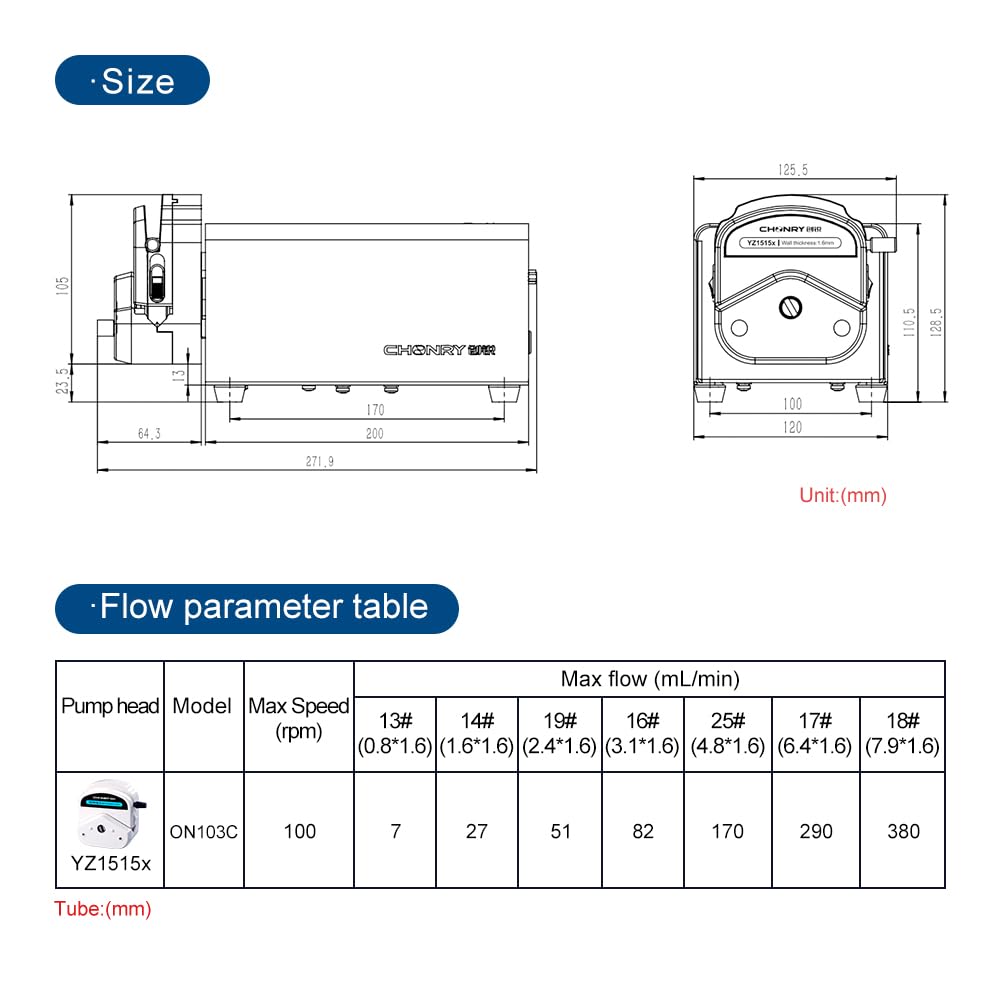

Details: Max Speed:100rpm (reversible) Speed resolution:0.1rpm Max flow:380mL/min Working power:AC100V-240V,50Hz/60Hz External control interface(The function needs to be customized):Start/stop control / direction control / speed control (0-5V, 0-10V, 4-20mA , 0-10kHz optional) RS485 serial communication
