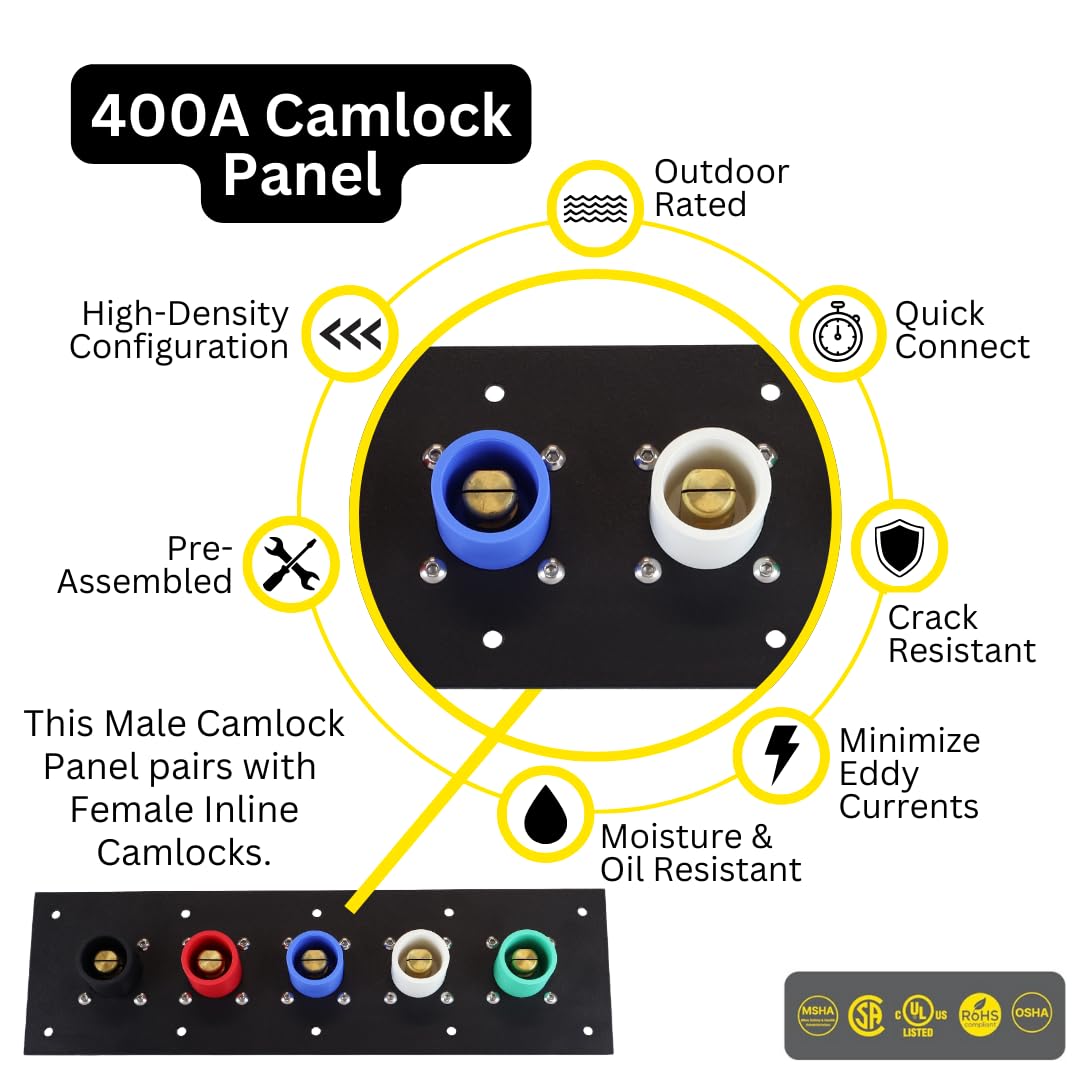

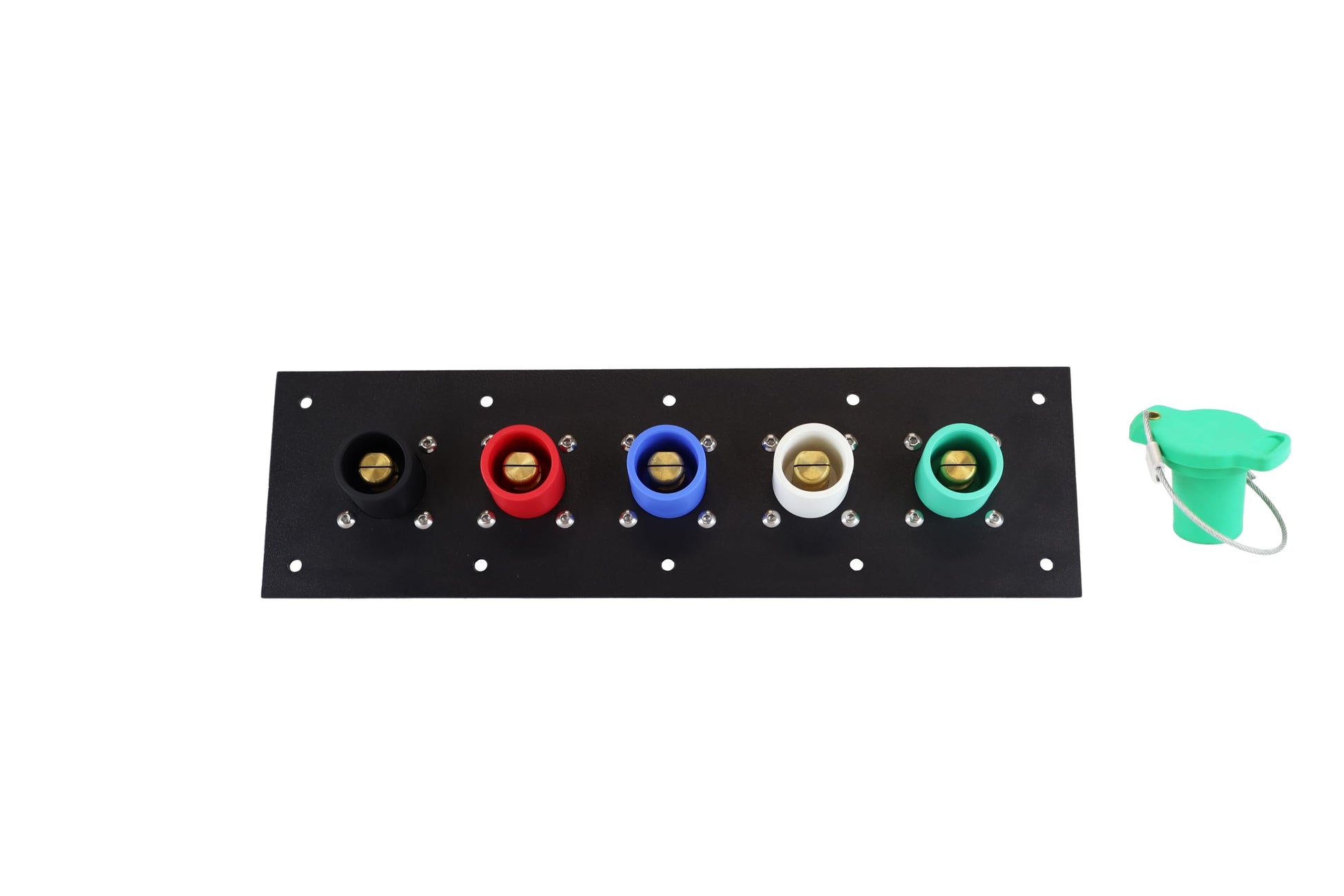

Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90°, Double Set-Screw Connections with NEMA 3R Caps and Lanyards, Series 16 CAM Connectors, Power Distribution Panel

Brand: Power Assemblies

Features:

• CAM Panels are shipped pre-assembled, reducing labor time and costs for installation - no more cutting individual holes for panel-mounted CAMs
• High density configuration allows more connections per square foot
• Standard panel configurations offered to meet most temporary power applications
• 1/8" powder coated aluminum is non-ferrous and minimizes eddy currents

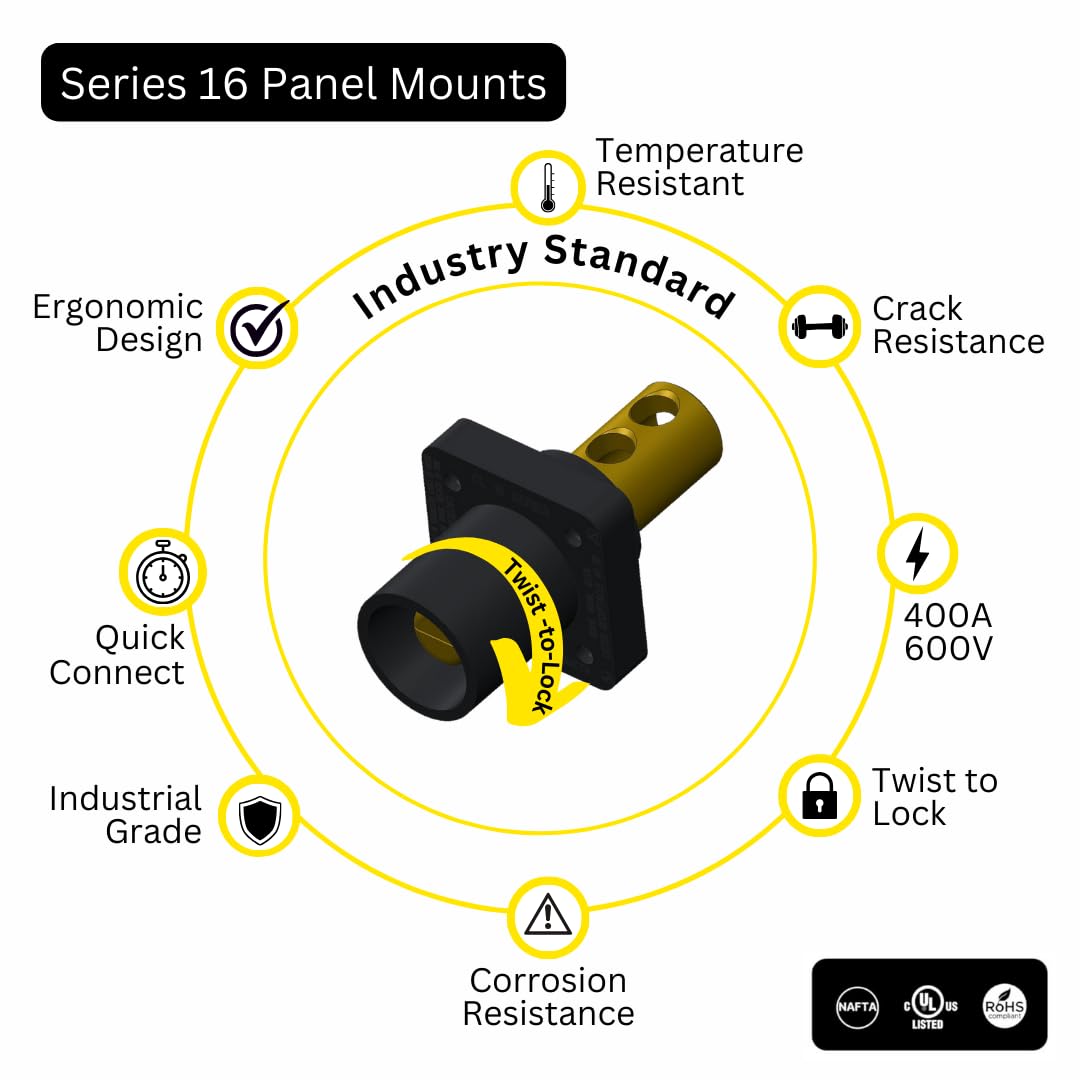

• Use Series 16 CAM connections to distribute power. Each row of CAMs allows the distribution of 400 amps of power.

model number: [PLAUSIBLE] Series 16

Part Number: PNL05ACDBE90DSMCL

Details: CAM Panels are power distribution panels utilizing industry-standard series 16 CAM connections. They are installed onto machinery, equipment, or part of a facility to allow faster power connections using the CAM connectors. CAM panels are shipped pre-assembled reducing labor time and costs for installation with high density configurations, which allows more connections per sq./ft.
Standard panel configurations available to meet most generator connections and other temporary portable power applications. Panel construction is comprised of 1/8 inches powder coated aluminum and non-ferrous which minimizes eddy currents.

Specifications:
Amperage: 400
Positions: 5
CAM Type:Male
Voltage:3 Phase 120/208 Volt
CAM Angle:90 Degree
Termination Type:Double Set-Screw Connection (UL Listed,Type 3R and 4)
NEMA 3R Cap:Santoprene TPV Protective Caps and Lanyards (Type 3R and 4)

**PLEASE NOTE: The Pictures shown are for illustration purposes only. Actual product may vary based on the specification selected.

Package Dimensions: 16.5 x 16.3 x 8.3 inches
