Programmable DC Electronic Load Tester Battery Capacity Tester ET5410A+ 400W Electronic Load 150V 40A Voltage Tester USB Tester

Brand: Generic

Color: multicolour

Features:

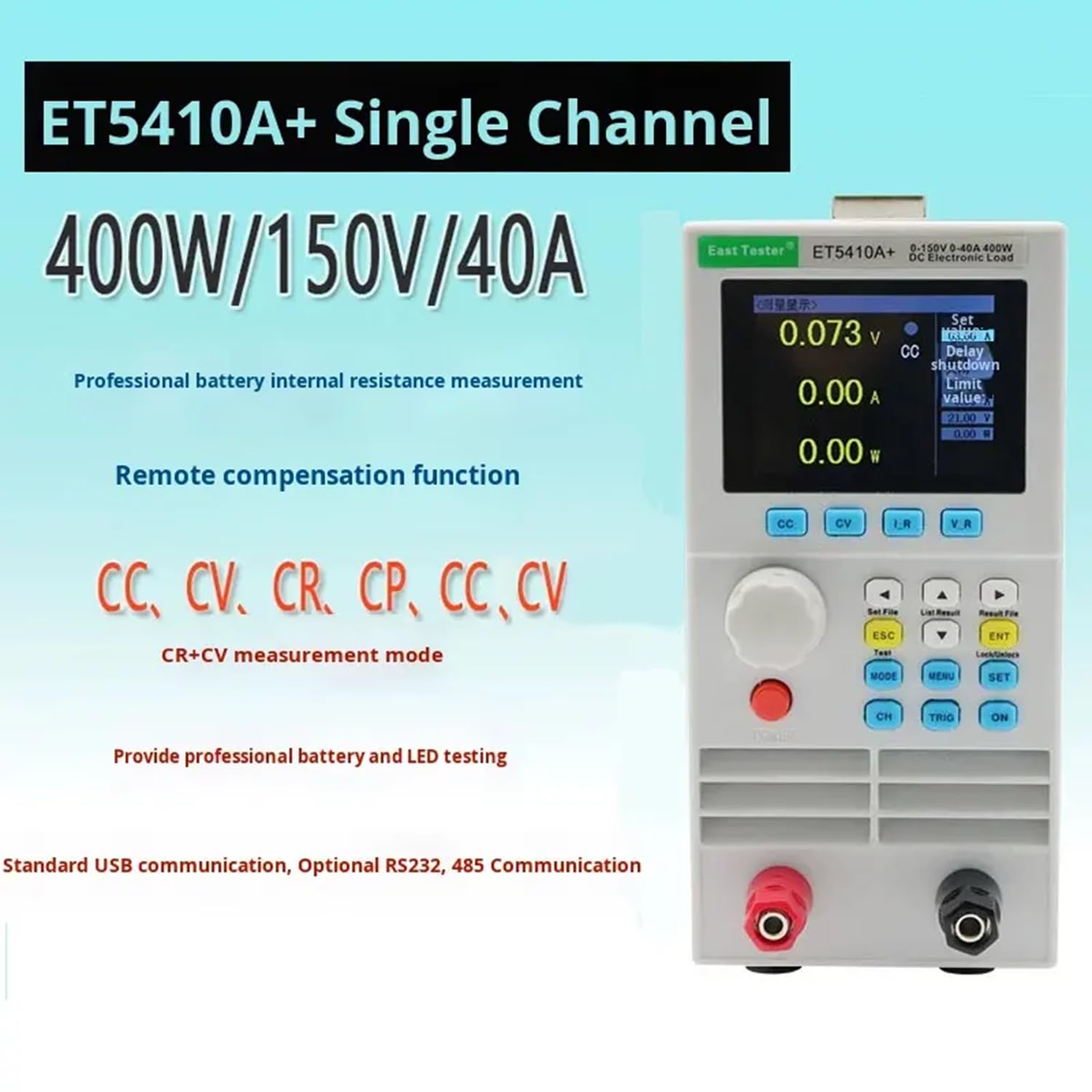

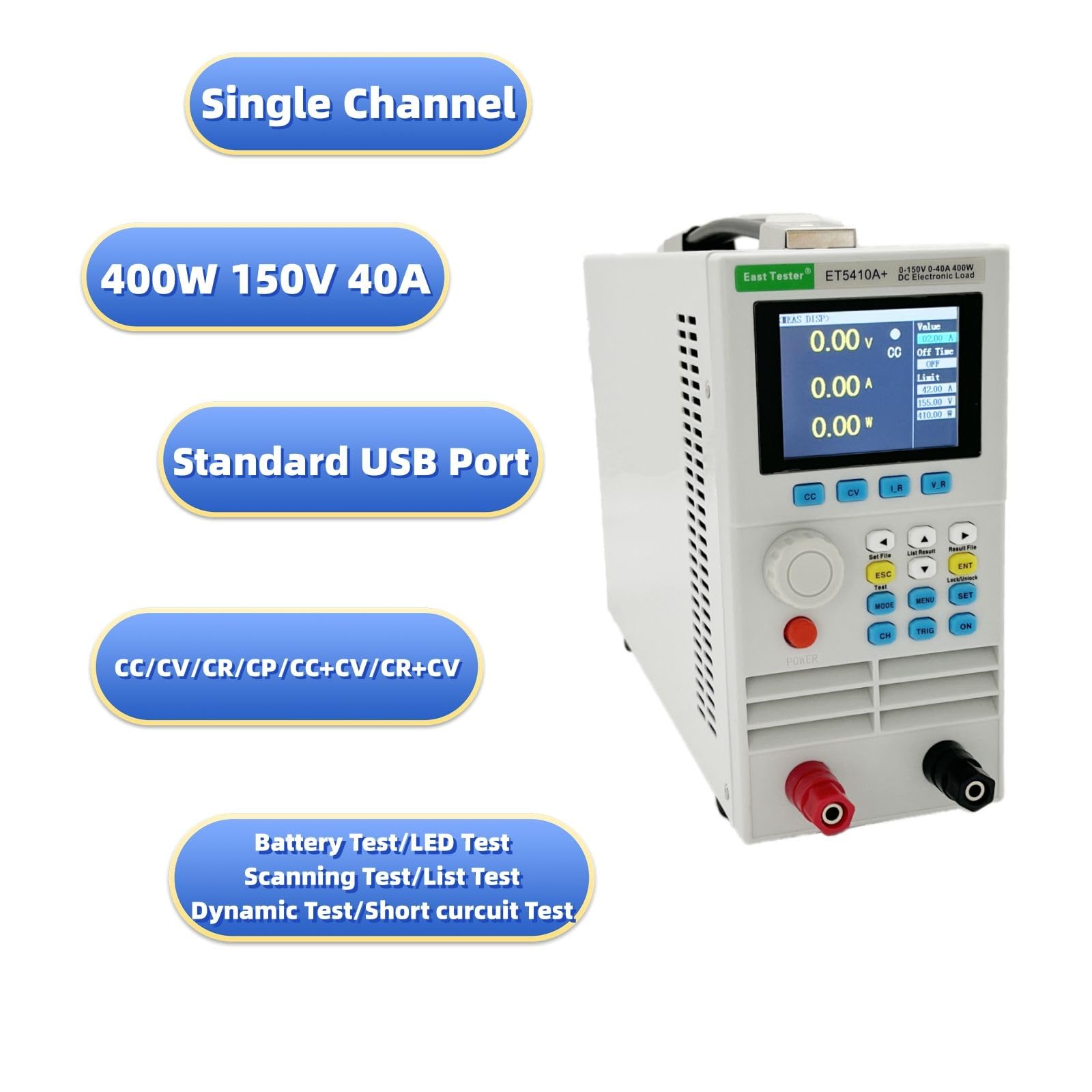

• 1.Multi-Mode Operation: Supports CC, CV, CR, CP, CC+CV, and CR+CV modes for versatile testing scenarios, including battery internal resistance measurement and LED testing.

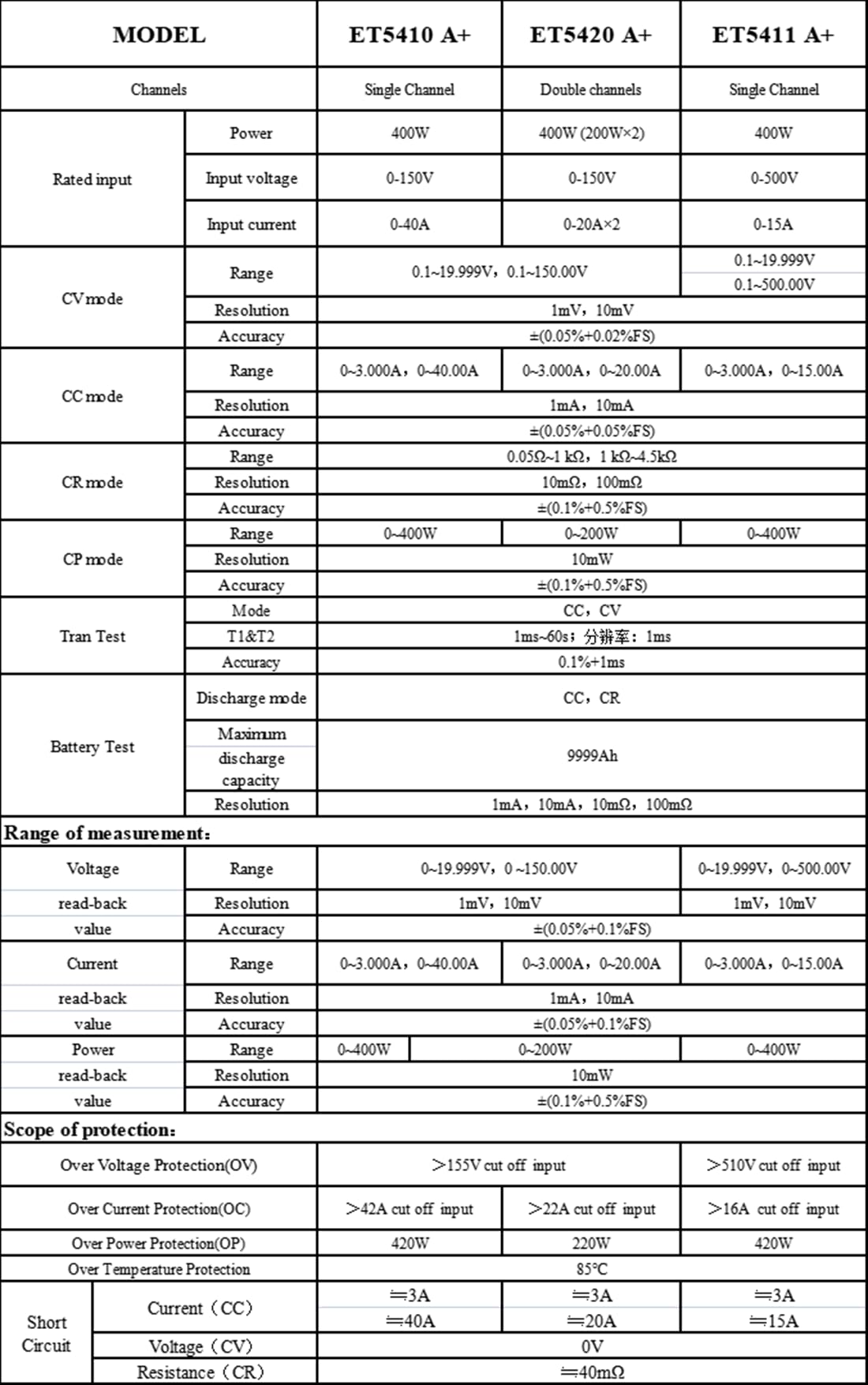

• 2.High Precision & Resolution: Delivers accurate measurements with voltage resolution of 1mV/10mV, current resolution of 1mA/10mA, and resistance resolution of 10mΩ/100mΩ, ensuring reliable test results.
• 3.Professional Testing Capabilities: Enables comprehensive battery testing (up to 9999Ah discharge capacity), LED testing, transient testing, and short-circuit testing, making it suitable for industrial and laboratory use.
• 4.Remote Compensation Function: Minimizes measurement errors caused by cable resistance, ensuring accurate readings even in complex setups.
• 5.Robust Protection & Connectivity: Features OV, OC, OP, and over-temperature protection for safe operation, plus a standard USB port for data logging and remote control.

model number: ET5410 A+

Part Number: ET5410A+

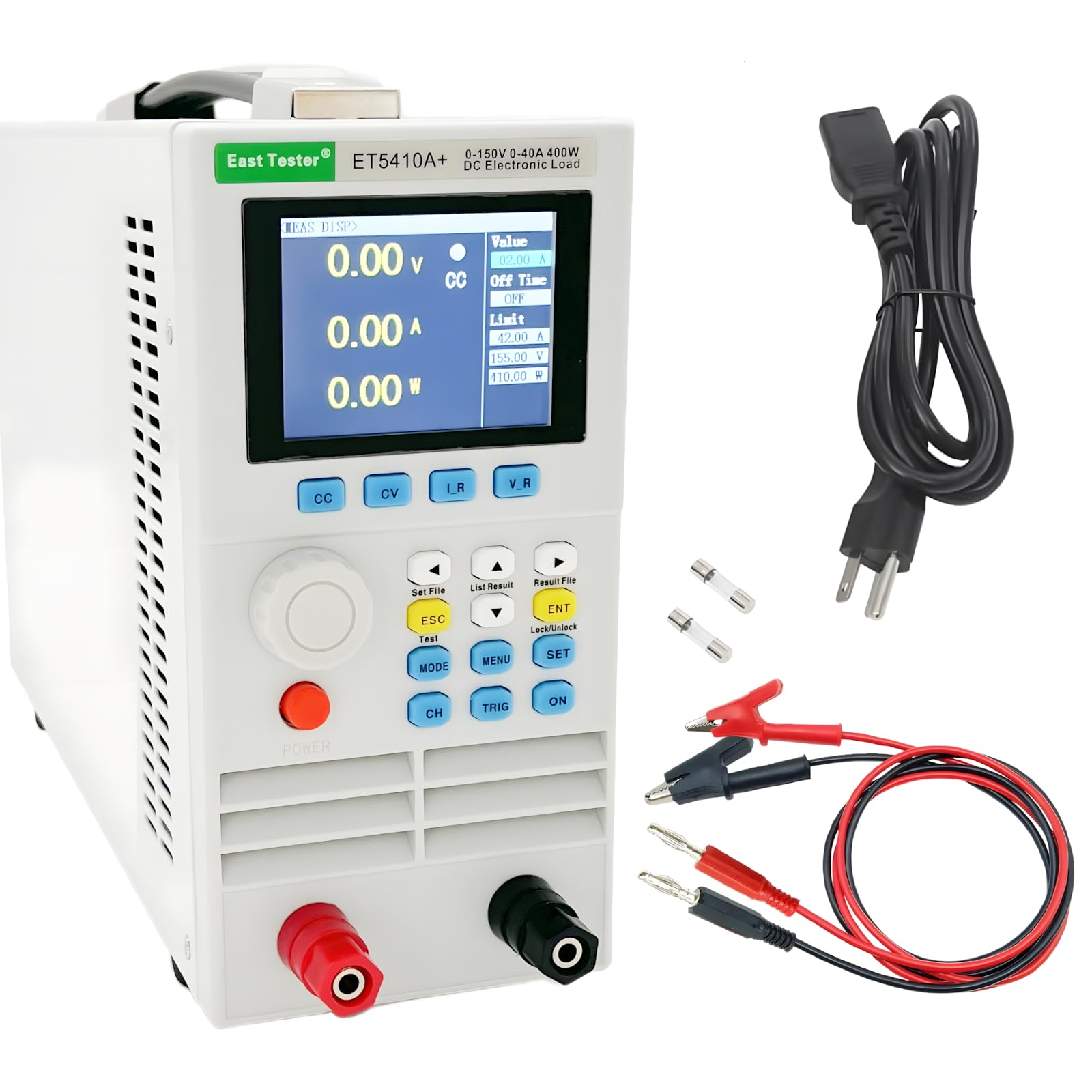

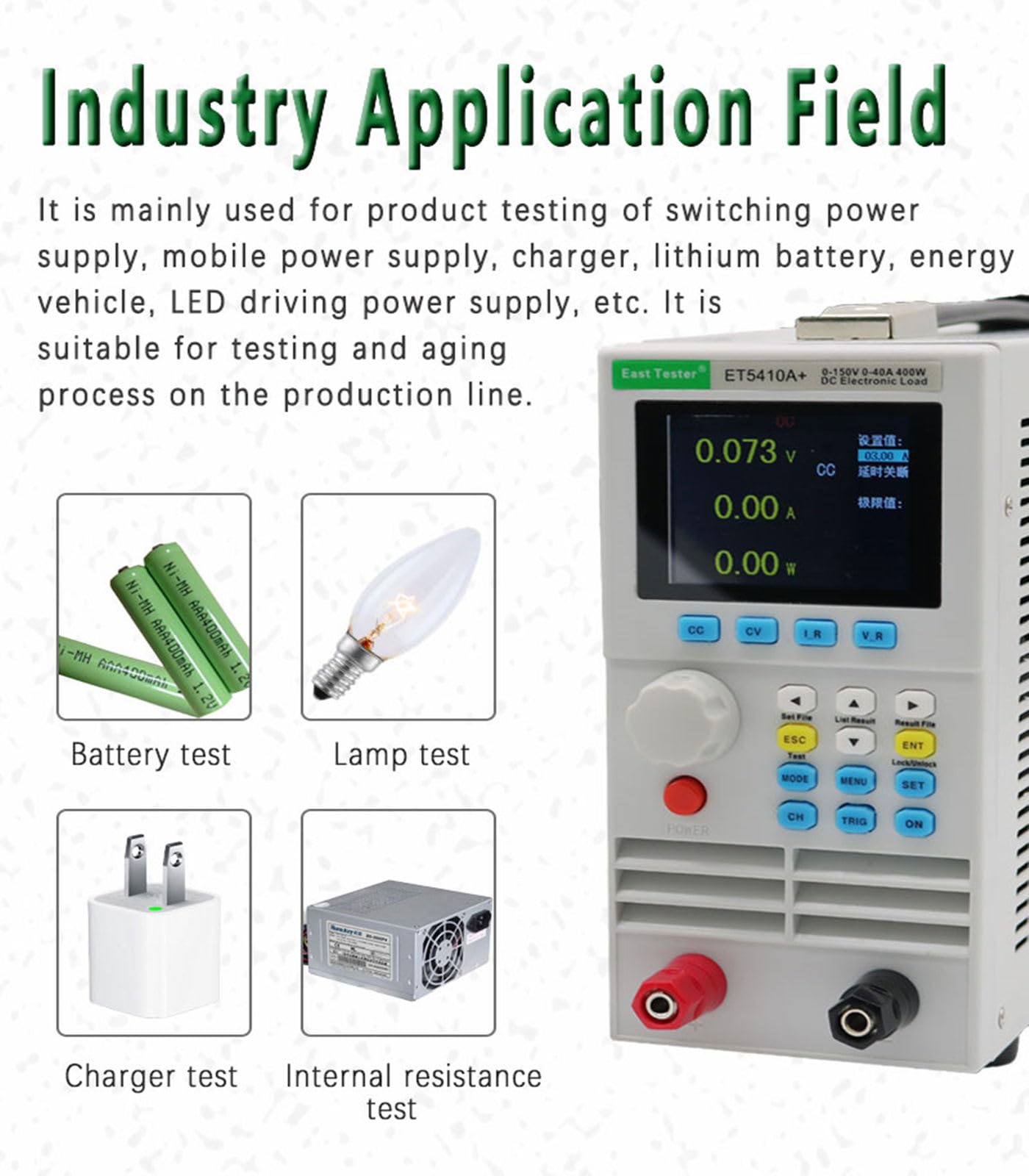

Details: The ET5410A+ is a high-performance, single-channel programmable DC electronic load designed for professional testing of batteries, power supplies, LEDs, and other electronic devices. With a rated power of 400W, input voltage range of 0-150V, and input current up to 40A, this instrument delivers precise and reliable measurements across multiple operating modes. It supports constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP), as well as combined modes like CC+CV and CR+CV, making it ideal for a wide range of applications including battery discharge testing, LED testing, power supply validation, ATE systems, and laboratory research. Equipped with a clear LCD display, intuitive controls, and a standard USB port for data transfer, the ET5410 A+ ensures ease of use and seamless integration into your testing workflow. Its robust protection features, including over-voltage, over-current, over-power, and over-temperature safeguards, guarantee safe operation even under demanding conditions.

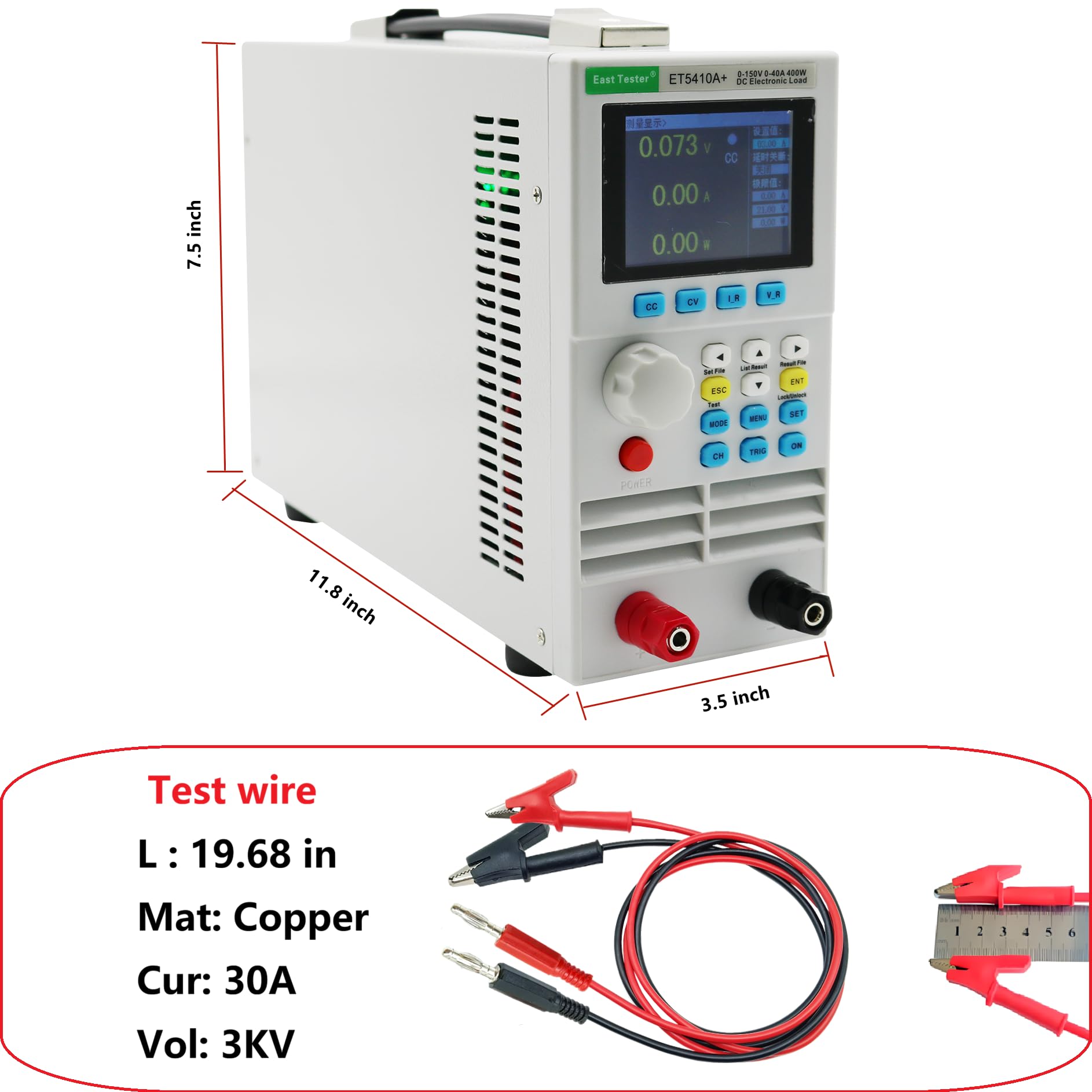

Package Dimensions: 12.2 x 7.5 x 3.5 inches
