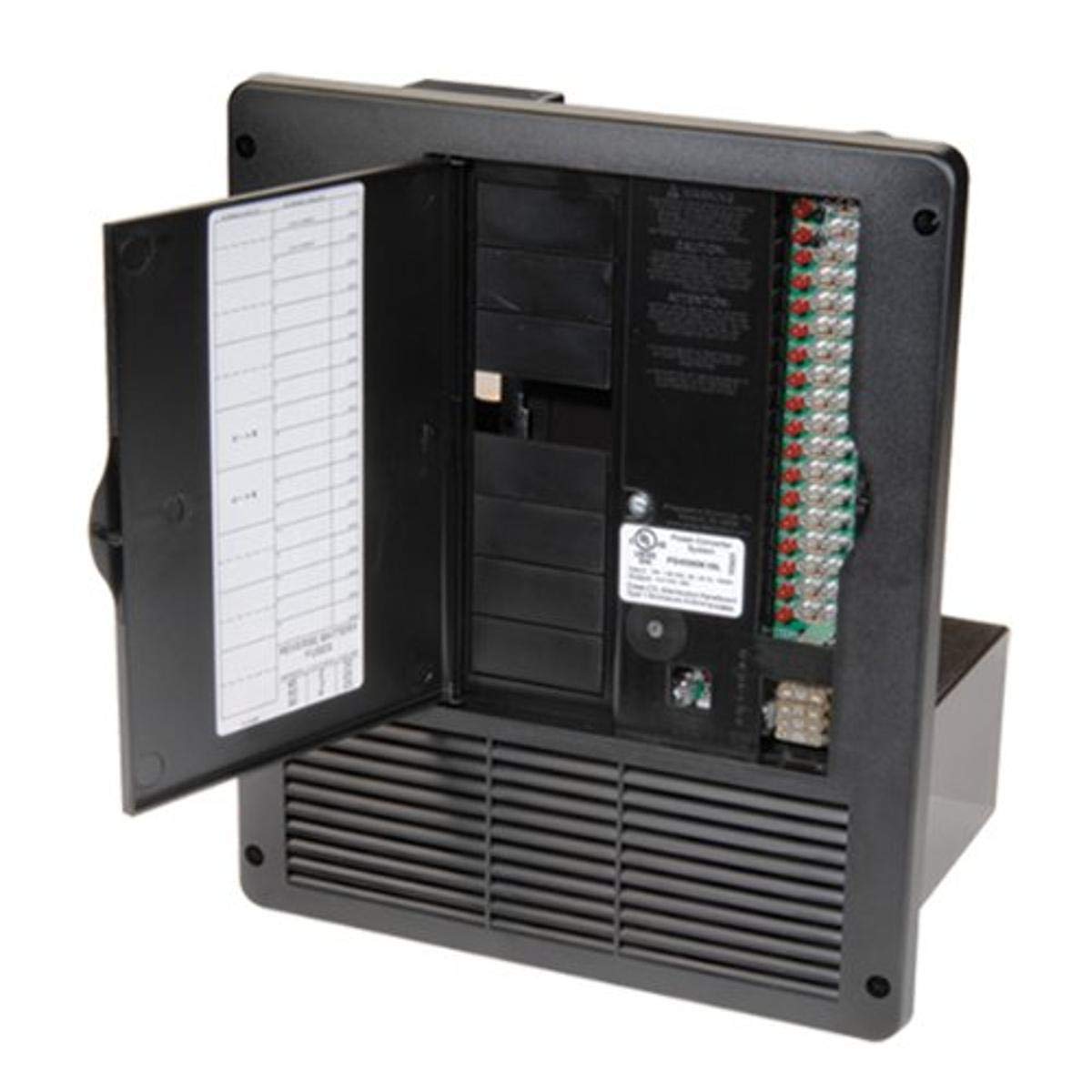

Progressive Dynamics PD4560 Inteli-Power 4500 Series AC/DC Distribution Panel - 60 Amp

Brand: Progressive Dynamics

Features:

• Reverse battery protection and electronic current limiting
• High and Low AC input protection
• Intelligent, variable speed cooling fan
• Front access to large wiring compartment
• Input: 105-130 VAC 50/60Hz, 1025 Watts; Output: 13.6 VDC, 60 Amps

Release Date: 07-03-2014

model number: PD4560

Part Number: PD4560

Details: AC features: Incudes provision for up to 12 branch circuit breakers, plus a center feed dual 50 Amp main breaker (not included). 12 built-in push and lock strain relief wiring connectors make installation quick and easy while saving over 50% on installation costs. The attractive lightweight panel design is constructed of impact-resistant, high-temperature polymers. DC features: Top two fuse holders recommended for low curret devices such as smoke and carbom monoxide detectors. The converter/charger section is accessible from the front. Input: 105-130 VAC 50/60Hz, 1025 Watts. Output: 13.6 VDC, 60 Amps.

EAN: 0675566456020

Package Dimensions: 16.2 x 13.4 x 11.8 inches
