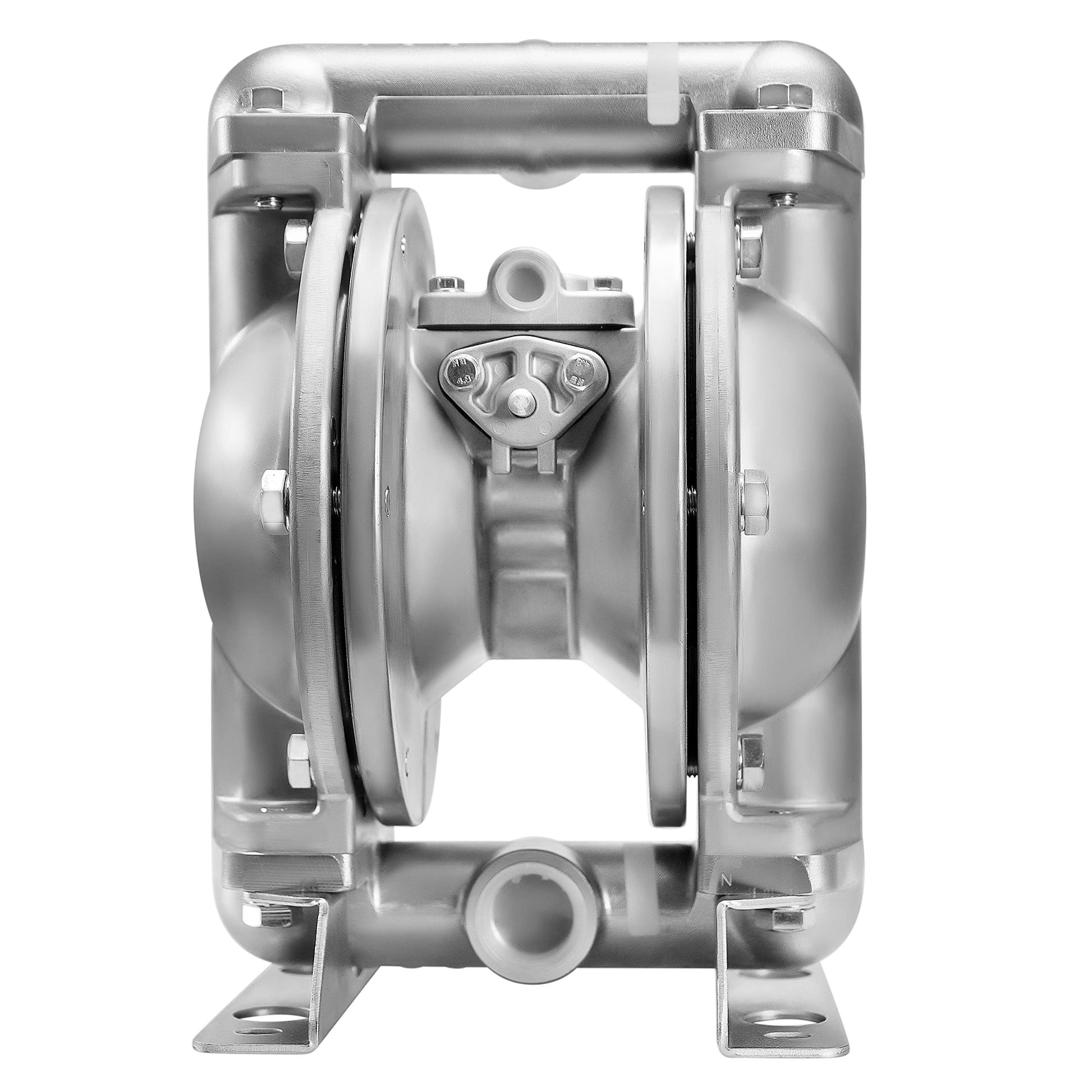

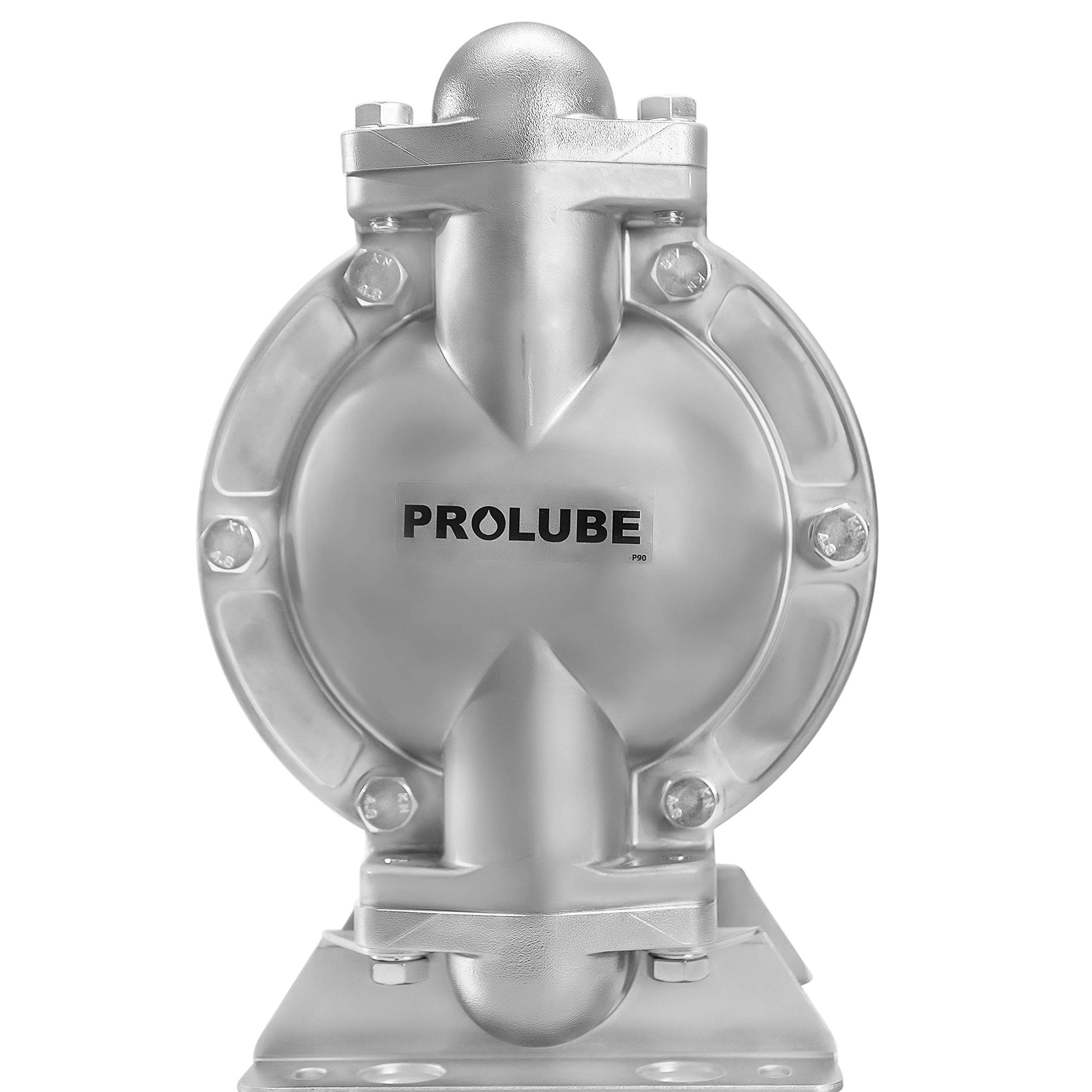

PROLUBE Air Operated Double Diaphragm Pump | 1-inch Pump Inlet/Outlet | Aluminum Casing | NBR Diaphragm | 37 GPM | Self Priming | Explosion Proof | Submersible | Non-Lubricating Design (44745)

Brand: PROLUBE

Features:

• Non-Lubricating Design: no messy packaged grease
• Self-priming pump design: (incorporating internal check valves) allows for high suction lift even at dry start-up and with heavier fluids;
• Energy Saving: 20% less air consumption over conventional pumps
• Explosion Proof Design: as pumps are operated by compressed air, all Diaphragm pumps are safe
• Submersible: can be submerged int the liquid by running the exhaust line above the liquid level

Release Date: 08-11-2018

model number: AODD/25/BAN/N

Part Number: AODD/25/BAN/N

Details: PROLUBE 44745 1-inch Air Operated Double Diaphragm Pump Specifically designed with reduced wearing parts for maximum performance; Truly non-lubricated design with externally accessible air distribution system. Stall free & Ice-free Operation: Staged exhaust design. The main air valve comprises of a patented carbon (Graphite) filled Ekonol designed to be non-stalling. Energy saving pump with over 20% lower air consumption over conventional pumps; Ideal for Waste Oil handling (can pass particles over 3mm); Fully bolted design: Quick tear down & rebuild, Hence negligible downtime during operation. Self-priming pump design (incorporating internal check valves) allows for high suction lift even at dry start-up and with heavier fluids; Explosion proof design, these do not produce pressure as they have a 1:1 operation & cannot be used with a flow meter; Inlet Air Pressure of 29 – 100 PSI. Air Inlet on pump is threaded 3/8” NPT (F); Up to 7.66 GPM; Max Air Temperature: 176° F. Recommended Fluids: Diesel fuel, Kerosene, Lubricants, Gear oil, Engine oil, Waste oil, Brake fluid

EAN: 0816139018027

Package Dimensions: 13.7 x 10.5 x 9.5 inches
