Replacement for Edv200 1/4npt 110/120v Electronic Drain Valve, 7/16" ORF, Full-feature Automatic Electronic Solenoid Condensate Valve

Brand: Generic

Color: Black

Features:

• Replacement for Edv200 1/4npt 110/120v Electronic Drain Valve

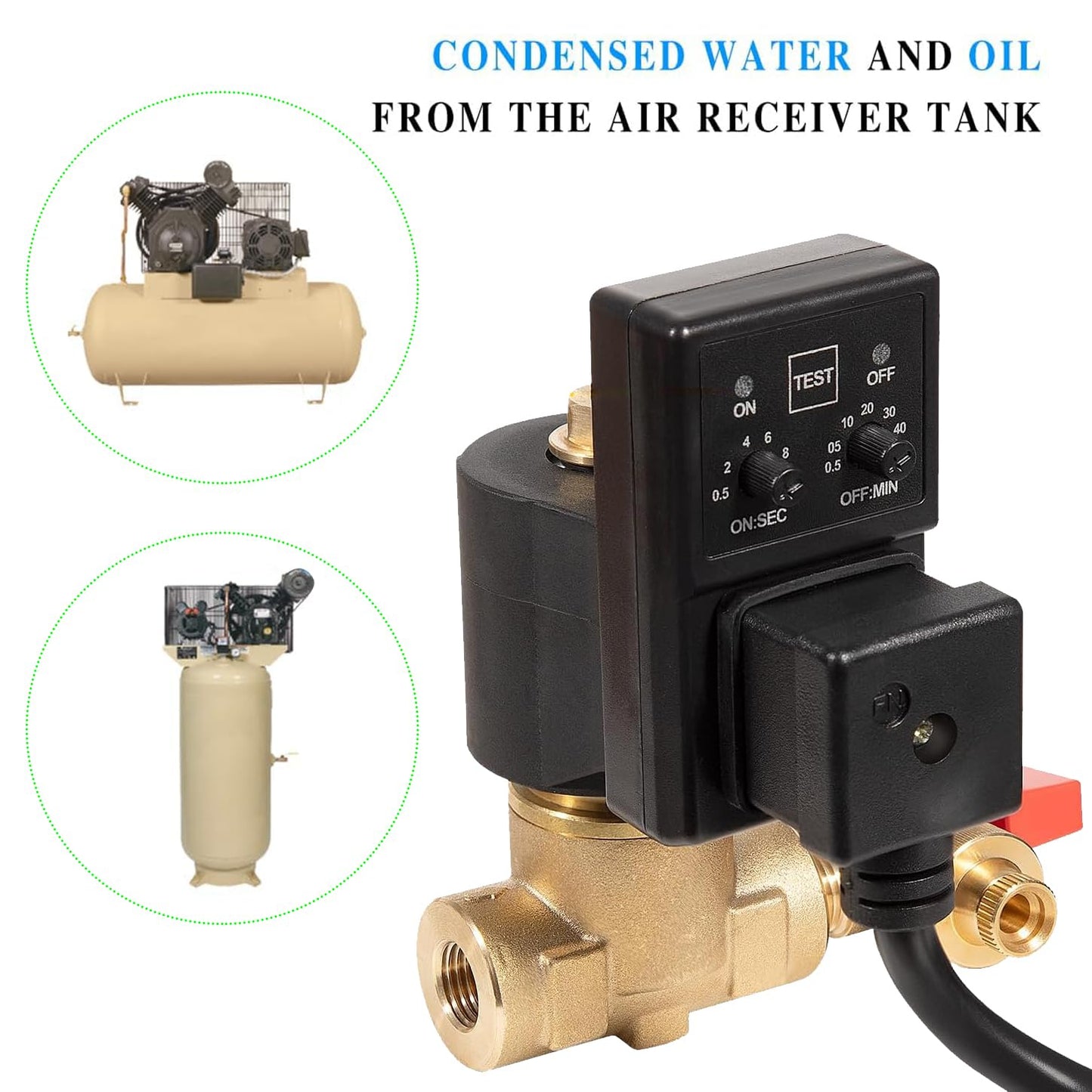

• EDV-200 removes condensed water and oil from the air receiver tank. It is a full-feature automatic electronic drain valve. It cost-effectively removes condensate from receivers, dryers, aftercoolers, compressors, filters and drip lines. Tested to perform in any demanding environment.

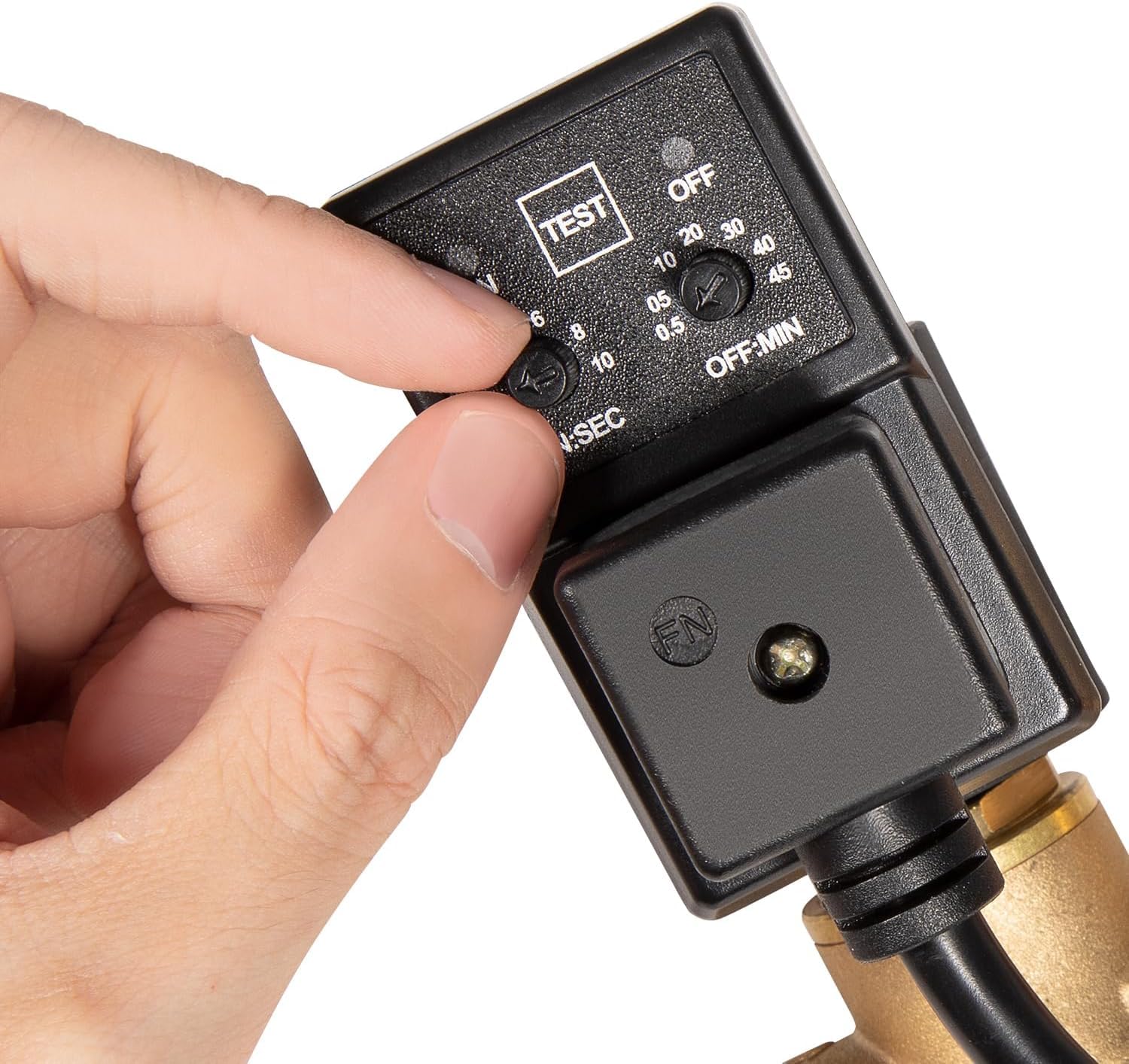

• Adjustable time on (0.5 - 10 seconds); Adjustable time off (0.5 - 45 minutes); Manual test button, delivers drier air to extend the life of tools and pneumatic equipment, Eliminates manual draining. Indicator lamp: LED indicating power on / off

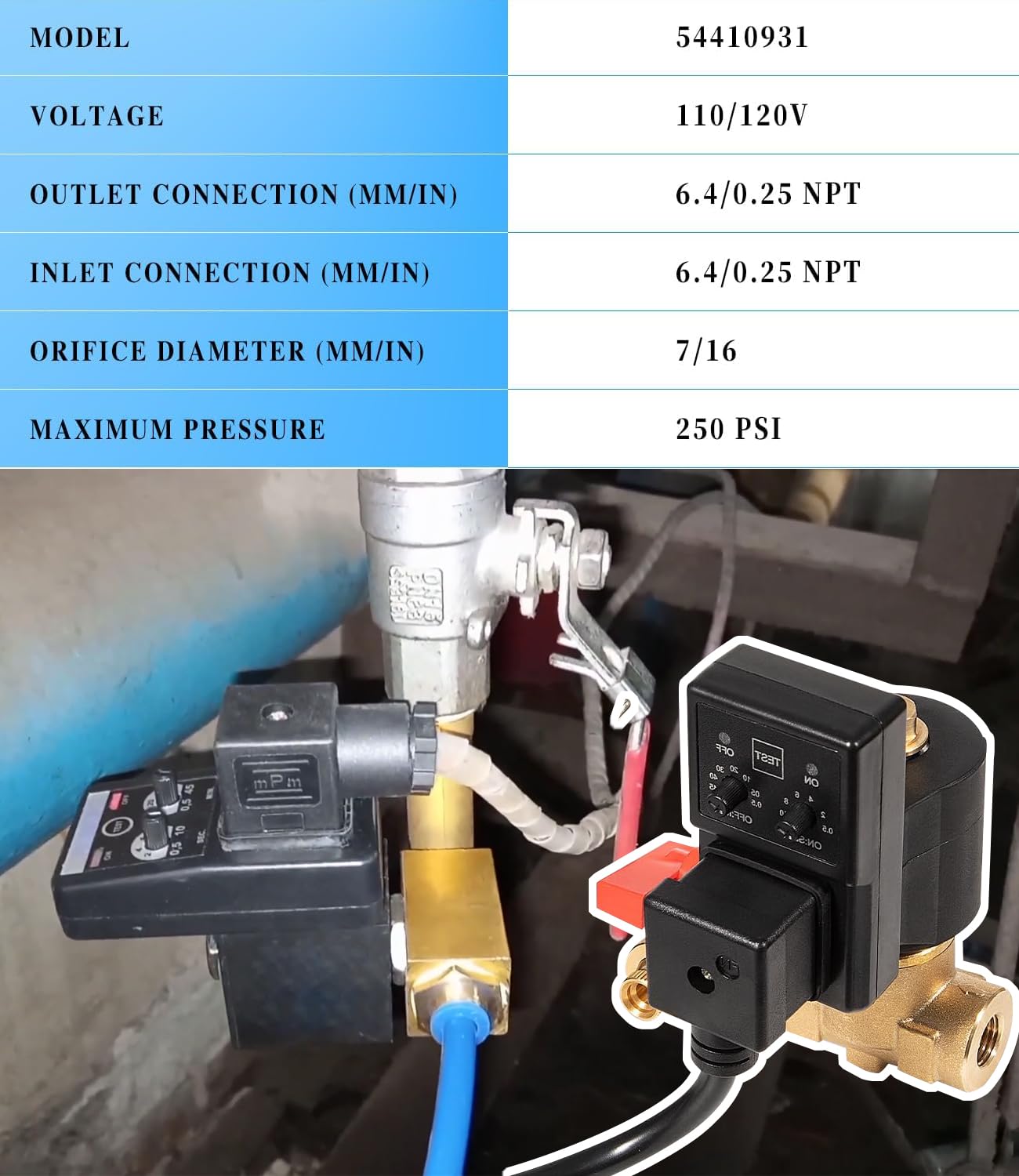

• Specification:Outlet Connection (mm/in): 6.4/0.25 NPT; Inlet Connection (mm/in): 6.4/0.25 NPT; Voltage: 110/120V; Orifice Diameter (mm/in): 7/16. The maximum pressure is 250 PSI

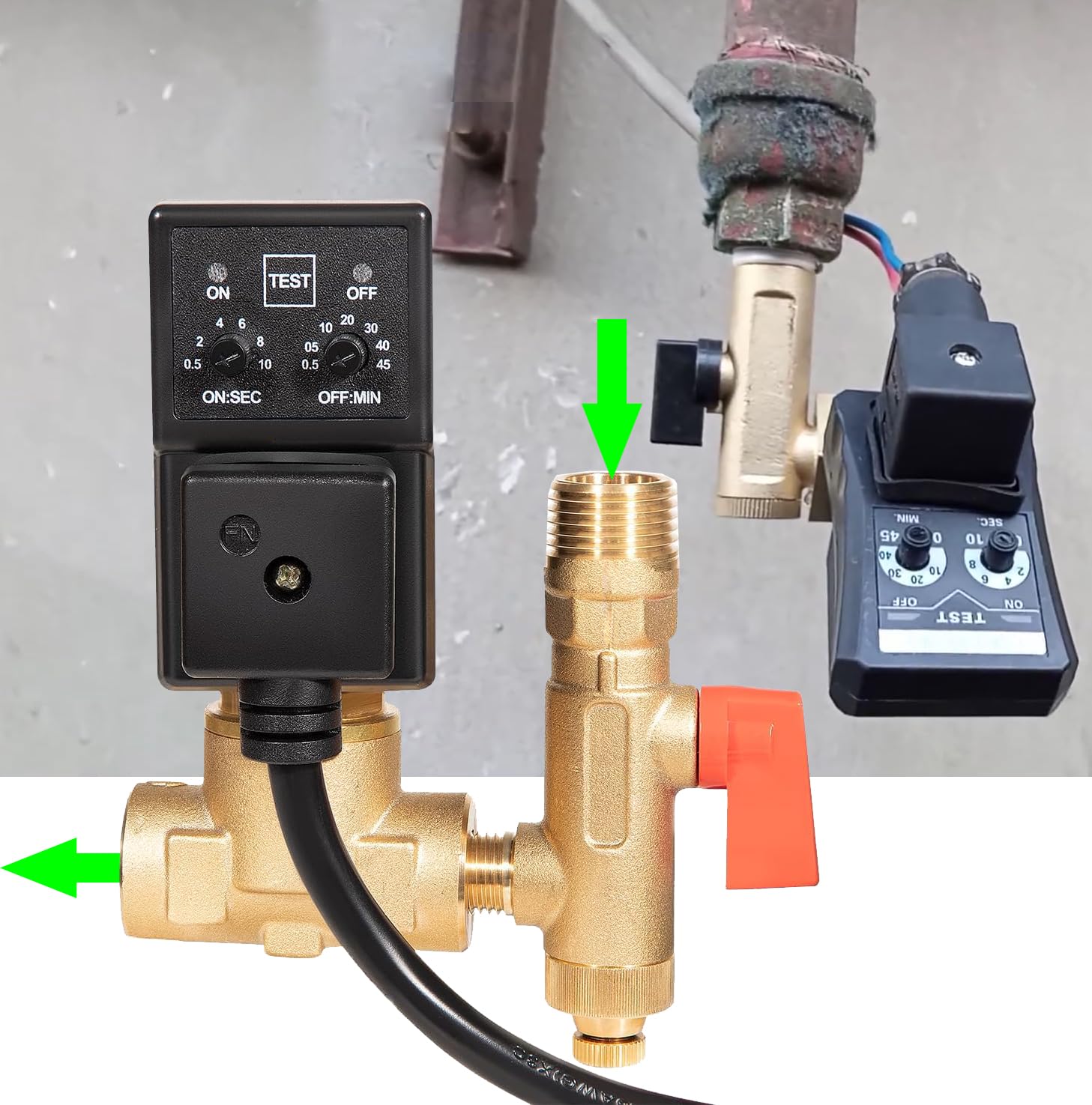

• Simple Operation:Offered in a variety of outlet pipe and orifice sizes, this compact and reliable drain valve can meet system demands easily. Condensate follows a serpentine path through a small orifice that is actuated by an electric timer. The length of time the drain is open and the frequency at which it opens can be adjusted manually by easy to operate dials

model number: 54410931

Details: EDV-2000 ELECTRONIC CONDENSATE DRAINS

1/4" NPT inlet and outlet connections

Automatic or manual operation

Compact and easy to install

Handle high flow rates

LED indicator lights for power

No need for external control devices

Outlet Connection (mm/in): 6.4/0.25 NPT

Inlet Connection (mm/in): 6.4/0.25 NPT

Voltage: 110/120V

Orifice Diameter (mm/in): 7/16

The maximum pressure is 250 PSI

Light mode:

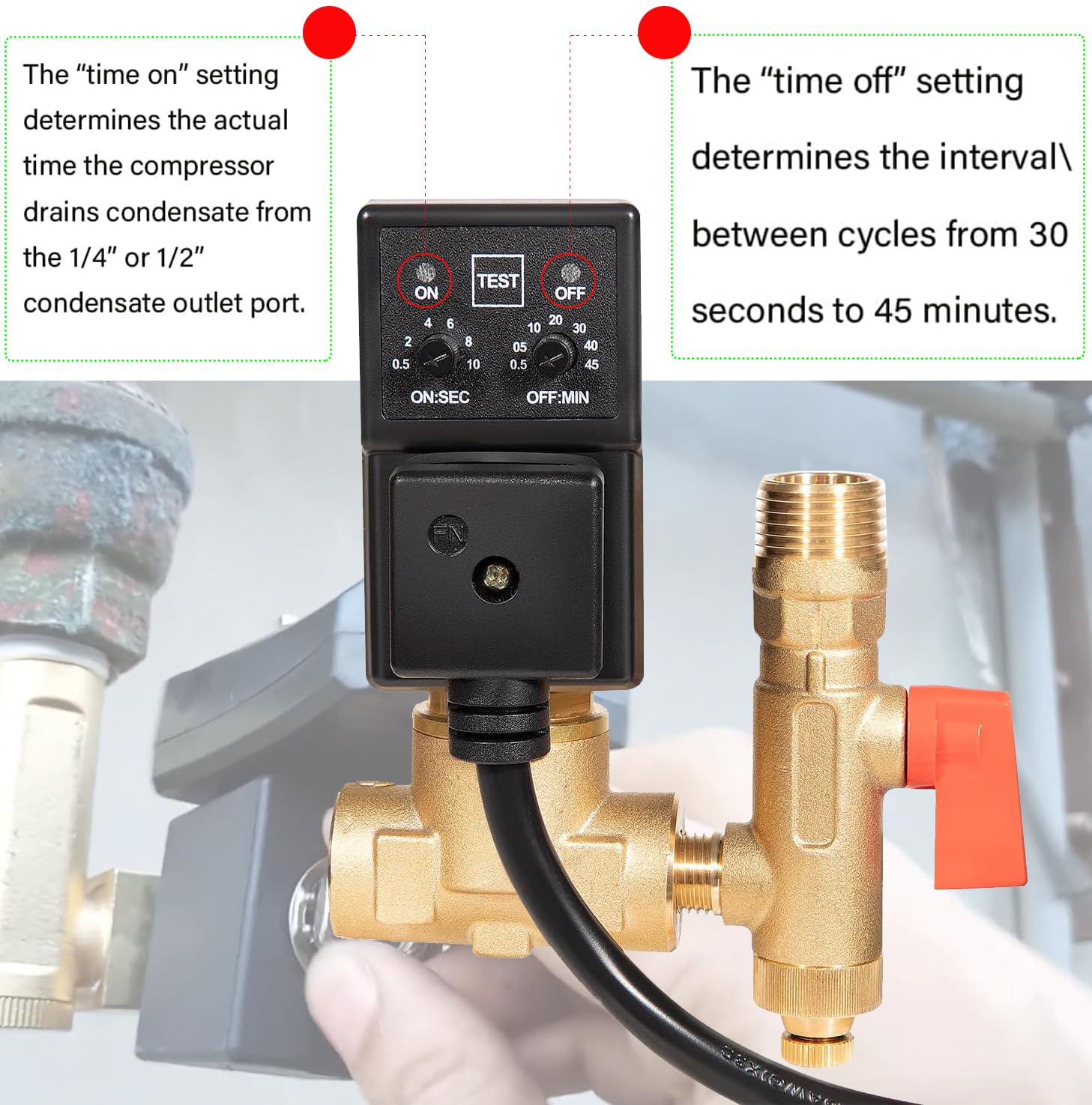

The "time on" setting determines the actual time of the compressor drainage from the 1/4 "or 1/2" condensate outlet port

The time offsetting decisions

The interval between cycles from

30 seconds to 45 minutes

Package Dimensions: 8.0 x 5.0 x 2.0 inches
