Water to Air Heat Exchanger 18x18 1" Copper Ports Hot Water Coil Outdoor Wood Furnace

Brand: AB

Color: black

Features:

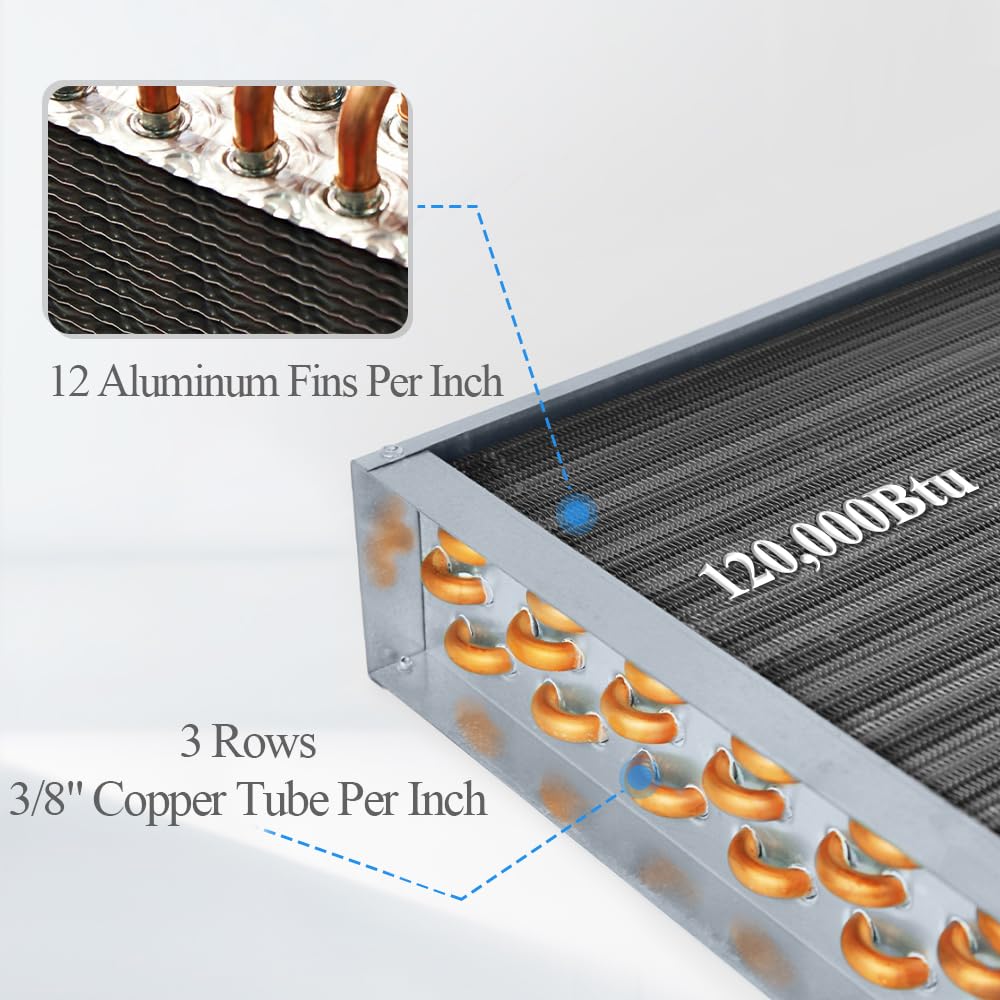

• Exceptional Performance: The heat exchanger has a capacity of 120,000 Btu. Depending on the application, the heat exchanger can produce up to 360kBtu of heat per hour, with 12 aluminum fins and 3 rows of 3/8" seamless copper tubes per inch. The combination of wavy fins and seamless copper tubes, which enhanced contact areas both inside and outside the tubes, results in a 10-20 percent increase in heat transfer performance, maximizing heating or cooling efficiency
• Convenient For Use And Energy Saving: This new style chilled water cooling coil can be easily installed by just slipping it into the plenum. You will not need any special tools to install. Highly conductive material make good performance and economy for heating transfer and cooling without electricity consumption and oxygen consumption
• Energy-efficient and Affordable: Our water-air heat exchangers allow for water-air heat exchange movement through a variety of sources - boilers, solar panels, etc. This means you can utilize a variety of renewable energy sources and save energy
• Convenient Installation: This new type of heat exchanger is easy to install, with a variety of options available. It can be directly connected to the pipeline and fixed with clamps; it also can be directly welded to the pipeline and adapters or be connected with rivets to meet a multitude of installation needs

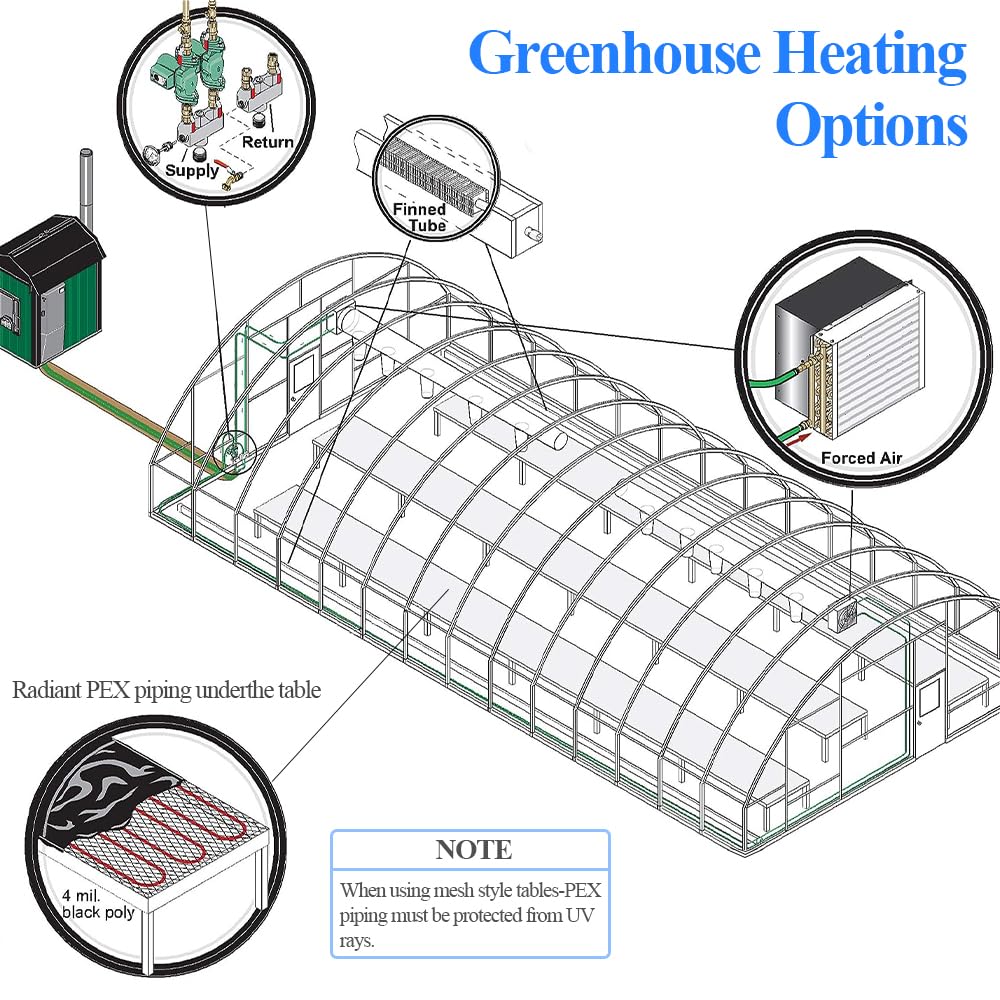

• Multiple Applications: Water-to-air heat exchanger offers a high level of thermal efficiency and durability in a compact and lightweight unit, which maximizes space saving, suitable for Outdoor Wood Furnaces, Residential and Commercial Heating and Cooling, Hybrid Systems, Air Conditioning, and Inverter Cooling

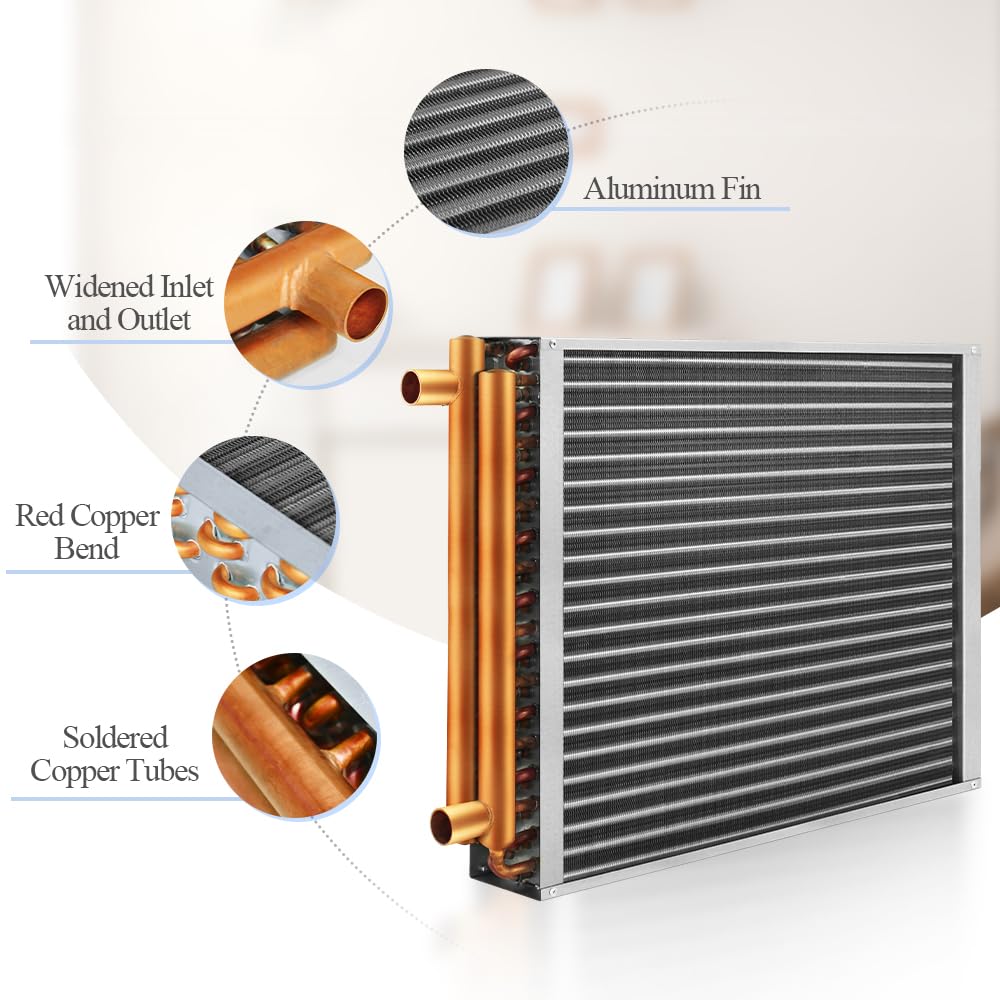

• Durable Construction Materials: Built with galvanized steel core housing, seamless copper coils, and aluminum fins to ensure long-lasting performance and reliable heat transfer in demanding heating and cooling applications

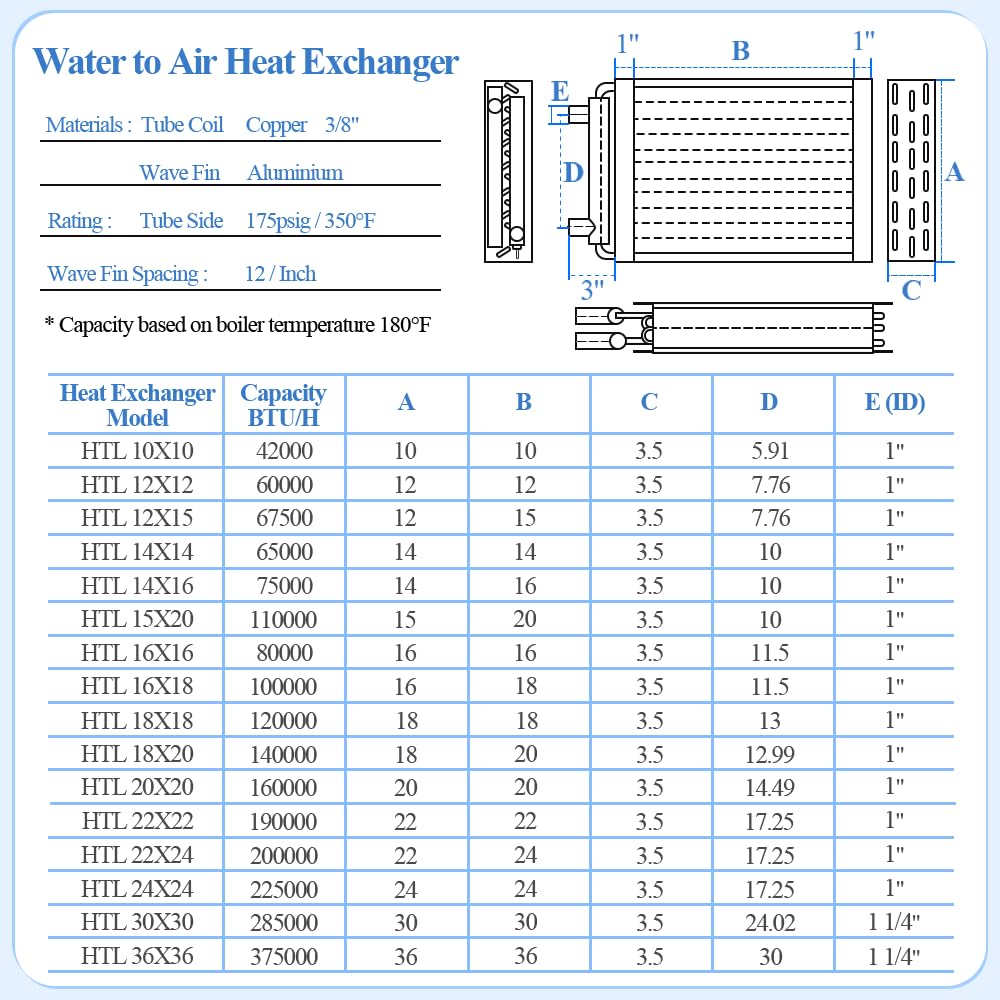

model number: HTL 18x18

Part Number: HTL18x18

Package Dimensions: 25.0 x 20.0 x 5.5 inches
